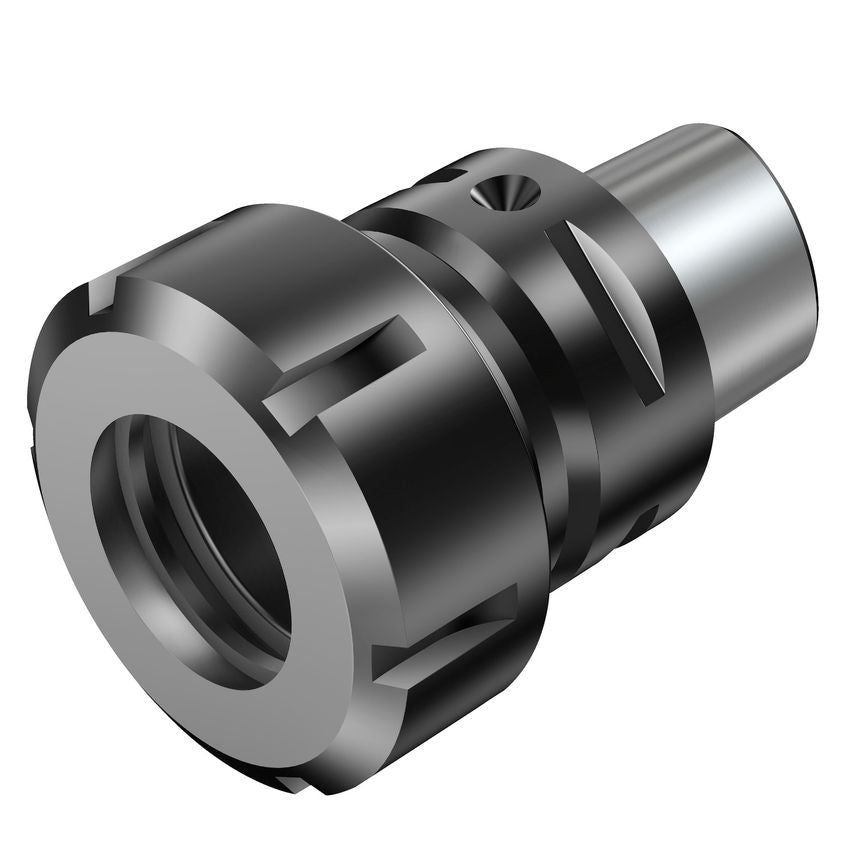

Coromant Capto to ER collet chuck
| Body Diameter | 1.32677in |
| MFR Part No. | 10891274 |
| Body Half Taper Angle | 0\u00b0 |
| Balanced By Design | Yes |
| Through Hole Function Property | Yes |
| Standards Met | ISO26623-1 |
| Functional Length | 66.95mm |
| Data Chip Provision | No |
| Coolant Exit Style Code | 50 |
| Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) -ER20 |
| Unit System | Metric |
| Body Material | Steel |
| Connection Diameter | 32mm |
| CoroPak | 50 |
| Weight | 0.207kg |
| Damping Property | No |
| Rotational Speed Maximum | 55000 1/min |
