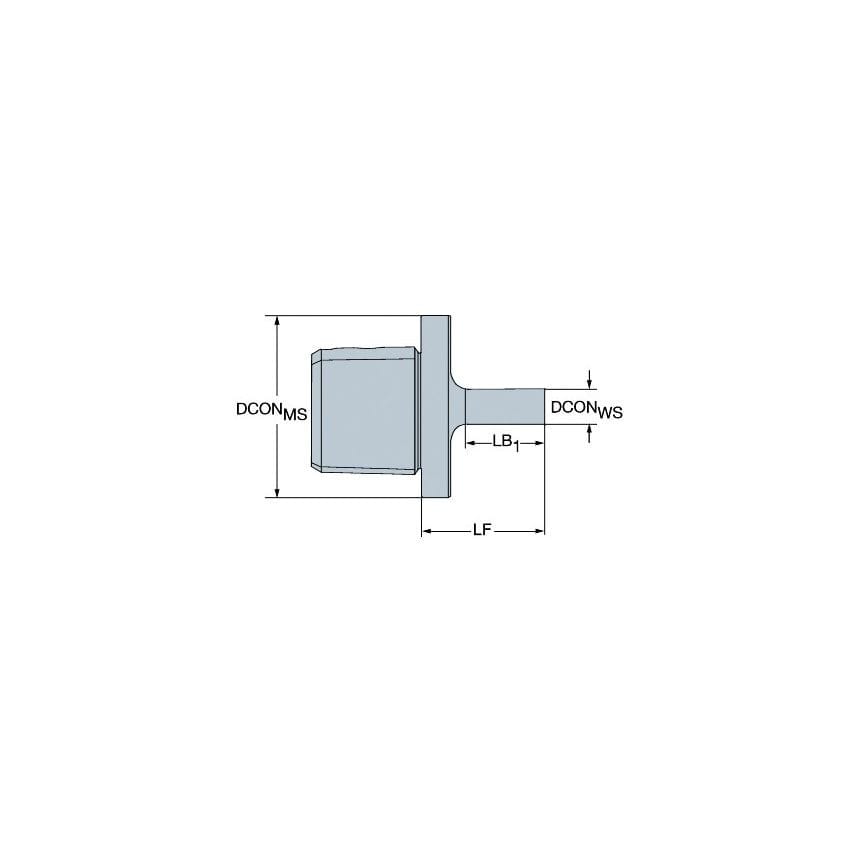

Product Range: CoroMill 327Tool Type: Thread millingA versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components such as gearbox casings, and high volume assemblies, mainly in machining centres and rotating units in lathes.Features & Benefits- Flexible cutter with multiple edges for many types of applications- Low cutting forces- Large program with different shank lengths and diametersApplication- Circlip grooving, Thread milling, Groove milling, Chamfering, both front and back
| Connection Diameter | 32mm |
| Functional Length | 35mm |
| Unit System | Metric |
| Weight | 0.138kg |
| Adaptive Interface Workpiece Direction | CoroMill 327 - Size 09 |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 55000 1/min |
| Coolant Entry Style Code | 0 |
| Functional Diameter | 22mm |
| MFR Part No. | 26265067 |
| Coolant Exit Style Code | 31.75 |
| CoroPak | 2.5 |
| Balanced By Design | No |
| Damping Property | No |
| Standards Met | ISO26623-1 |
| Body Material | Steel |
| Data Chip Provision | No |
