Product Range: Coromant EHTool Type: Turning centresTooling flexibility for small diametersAccess with shanksShanks in different lengths and materials enable you to bore hard-to-access features with ease.Productivity with integrated machine adaptorsThe short gauge length of an integrated machine adaptor plus cutter head makes it possible to increase productivity even in small, vibration-sensitive machines.Clearance and reachThe flexible range of undersized shanks in various lengths enables milling of deep shoulders with stability and clearance.Features & Benefits- Tooling flexibility for small diameters- Combine different tool holders and cutter heads to configure an optimized tooling solution for all your machining- The coupling is based on a centering screw that facilitates quick mounting of heads
| Data Chip Provision | No |
| Adaptive Interface Workpiece Direction | Coromant EH - Metric - E20 |
| Coolant Exit Style Code | 1 |
| Body Material | Heavy Metal |
| MFR Part No. | 7323220765812 |
| Balanced By Design | Yes |

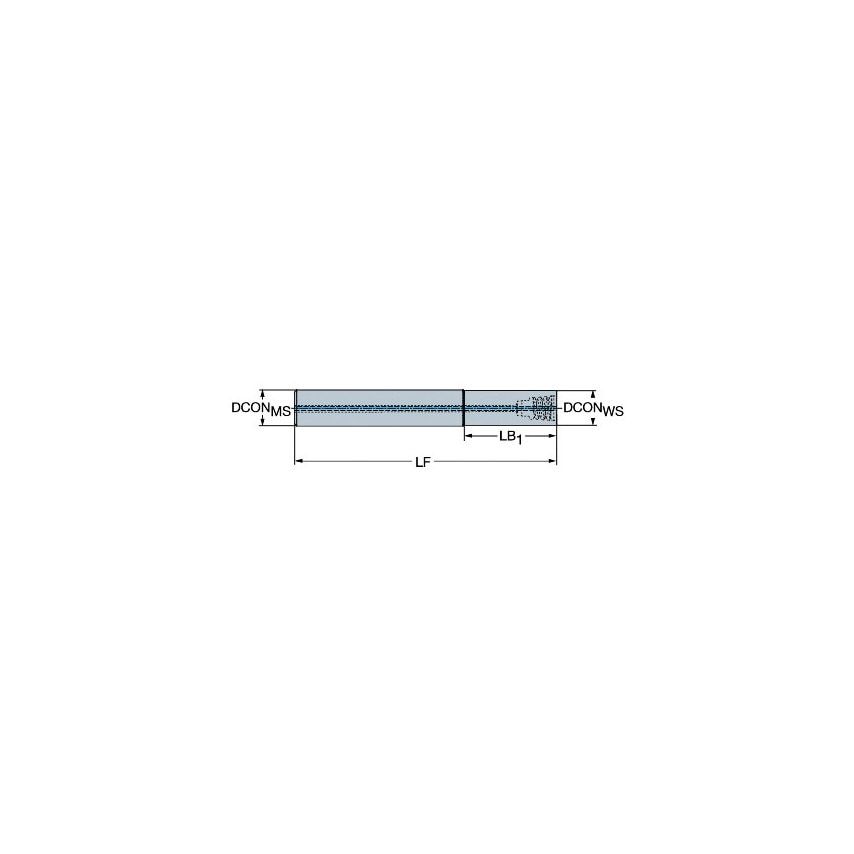

| Functional Length | 160mm |
| Coolant Entry Style Code | 50 |
| Weight | 0.923kg |
| Connection Diameter | 20mm |
| Unit System | Metric |
| Through Hole Function Property | Yes |
| Damping Property | No |
| CoroPak | 110 |
| Rotational Speed Maximum | 17000 1/min |
