Product Range: Coromant EHTool Type: Turning centresTooling flexibility for small diametersAccess with shanksShanks in different lengths and materials enable you to bore hard-to-access features with ease.Productivity with integrated machine adaptorsThe short gauge length of an integrated machine adaptor plus cutter head makes it possible to increase productivity even in small, vibration-sensitive machines.Clearance and reachThe flexible range of undersized shanks in various lengths enables milling of deep shoulders with stability and clearance.Features & Benefits- Tooling flexibility for small diameters- Combine different tool holders and cutter heads to configure an optimized tooling solution for all your machining- The coupling is based on a centering screw that facilitates quick mounting of heads
| Rotational Speed Maximum | 18000 1/min |
| Weight | 2.405kg |
| CoroPak | 20.5 |

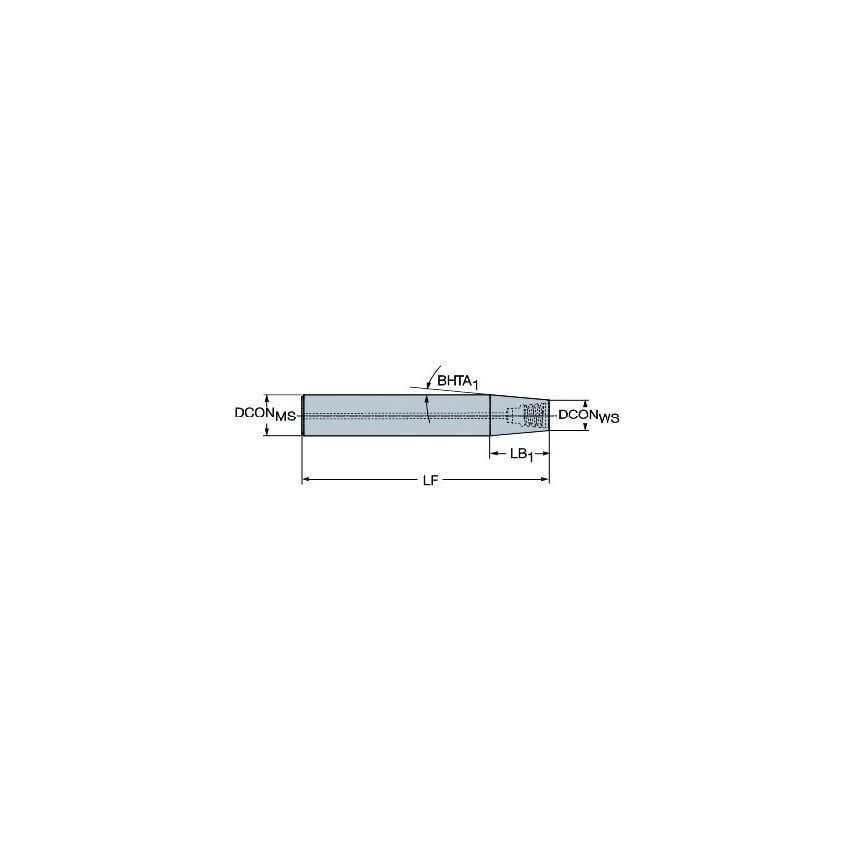

| Functional Length | 215mm |
| Unit System | Metric |
| Coolant Entry Style Code | 63.3 |
| Coolant Exit Style Code | 1 |
| Body Material | Carbide |
| Through Hole Function Property | Yes |
| MFR Part No. | 26408246 |
| Adaptive Interface Workpiece Direction | Coromant EH - Metric - E25 |
| Connection Diameter | 32mm |
| Balanced By Design | Yes |
| Damping Property | No |
| Data Chip Provision | No |
