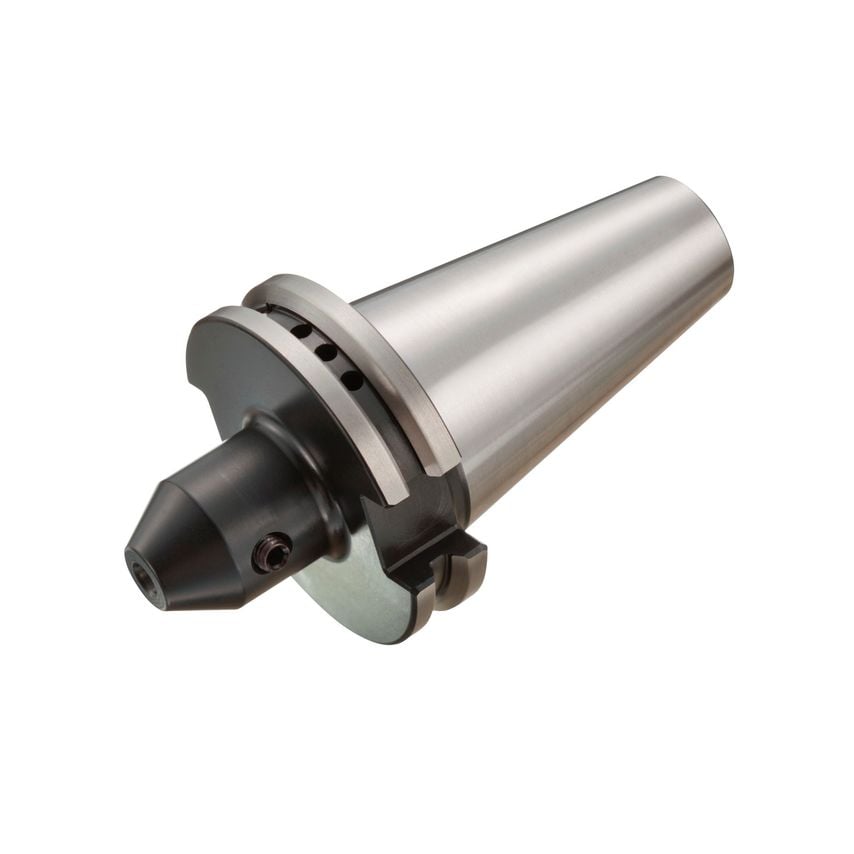

ISO 7388-1 to Weldon adaptor
| MFR Part No. | 12243184 |
| Coolant Exit Style Code | 118 |
| CoroPak | 90 |
| Functional Diameter | 69.85mm |
| Through Hole Function Property | Yes |
| Functional Length | 63mm |
| Adaptive Interface Workpiece Direction | Weldon - Metric - 20 |
| Weight | 3.26kg |
| Body Material | Steel |
| Unit System | Metric |
| Balanced By Design | Yes |
| Standards Met | ISO7388-1 |
| Data Chip Provision Size | D10/H4 |
| Data Chip Provision | Yes |
| Damping Property | No |
| Rotational Speed Maximum | 12000 1/min |
