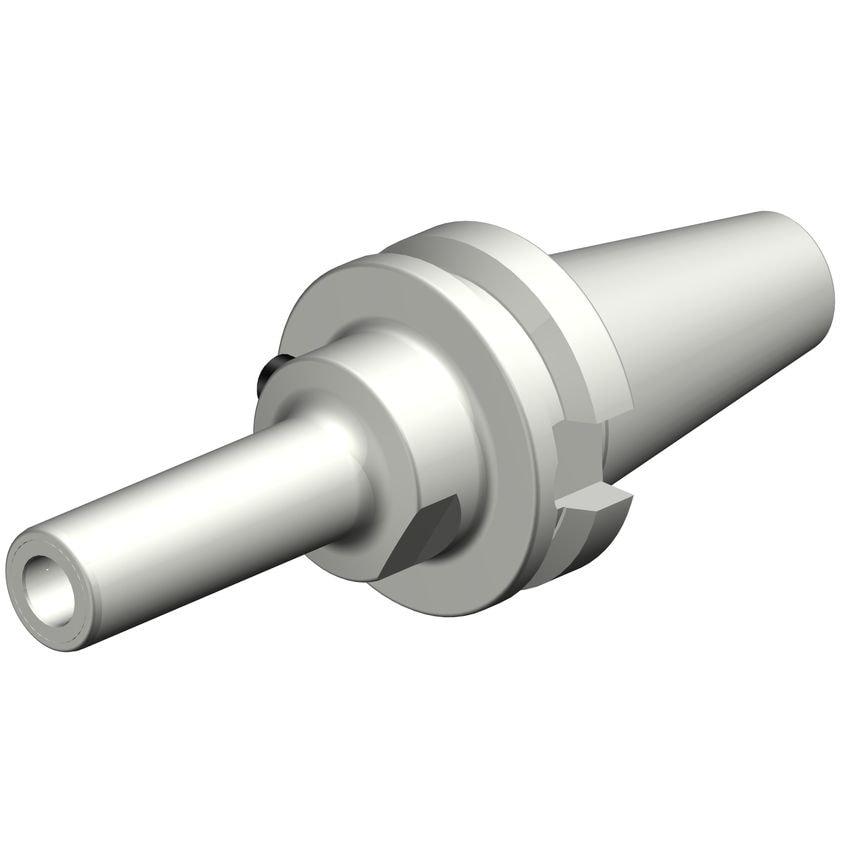

Product Range: CoroChuck 930Tool Type: Machining centresHigh-precision hydraulic chuck For milling, drilling and reaming operations where precision and high pull-out security is required Available for the most common machine interfacesWith the best pull-out security on the market, this chuck is designed to eliminate vibration for excellent stability and accessibility in all milling and drilling operations. Based on a hydraulic tool clamping system, CoroChuck 930 can be quickly tightened or released with an optimized torque wrench, improving efficiency through quick and easy set-ups and changes. No external equipment is required to clamp or unclamp the system. The chuck holds tolerances within microns to improve tool precision, surface finish and productivity. Precision run-out can be measured at <4 m (157 inch) at 2.5 DC.Features & Benefits- High-precision hydraulic chuck- For milling, drilling and reaming operations where precision and high pull-out security is required- Available for the most common machine interfaces
| Body Material | Steel |
| Functional Diameter | 44.45mm |
| Unit System | Metric |
| Weight | 1.259kg |
| MFR Part No. | 26255519 |
| Damping Property | No |
| Rotational Speed Maximum | 18000 1/min |
| Through Hole Function Property | Yes |
| Coolant Exit Style Code | 38 |
| Functional Length | 110mm |
| CoroPak | 2 |
| Balanced By Design | Yes |
