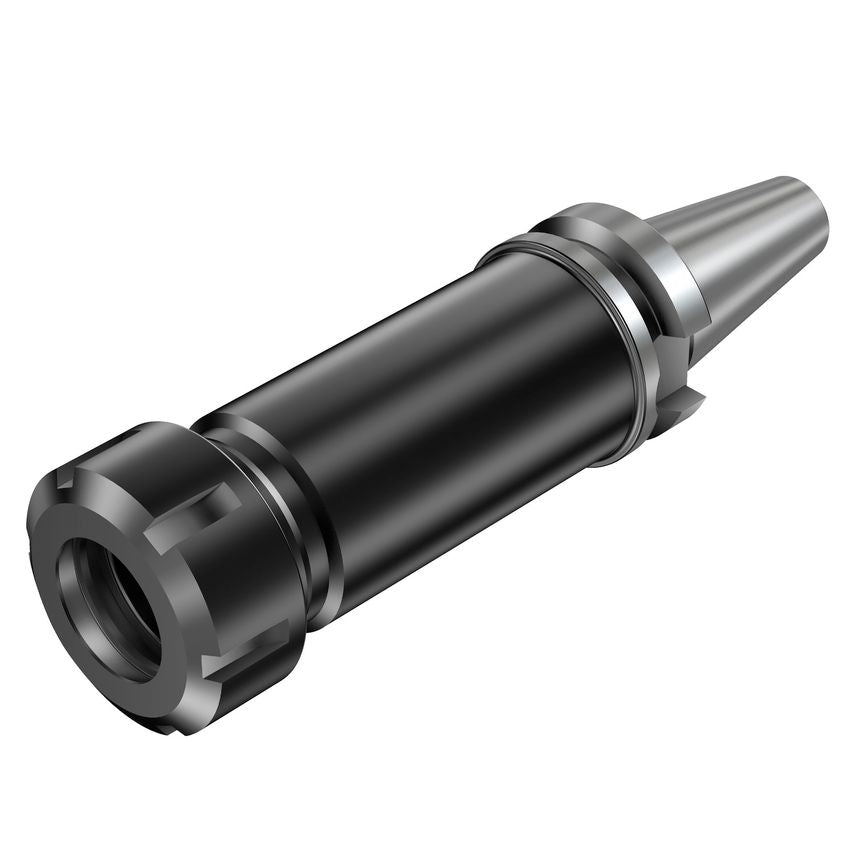

MAS-BT 403 to ER collet chuck
| Coolant Exit Style Code | 38 |
| Weight | 1.245kg |
| Body Diameter | 1.9685in |
| CoroPak | 40 |
| Body Half Taper Angle | 0\u00b0 |
| Data Chip Provision | Yes |
| Coolant Entry Style Code | 1 |
| Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) -ER32 |
| Functional Length | 78.1mm |
| Rotational Speed Maximum | 25000 1/min |
| Through Hole Function Property | Yes |
| Damping Property | No |
| Body Material | Steel |
| MFR Part No. | 26073982 |
| Balanced By Design | Yes |
| Unit System | Metric |
| Data Chip Provision Size | D10/H4 |
