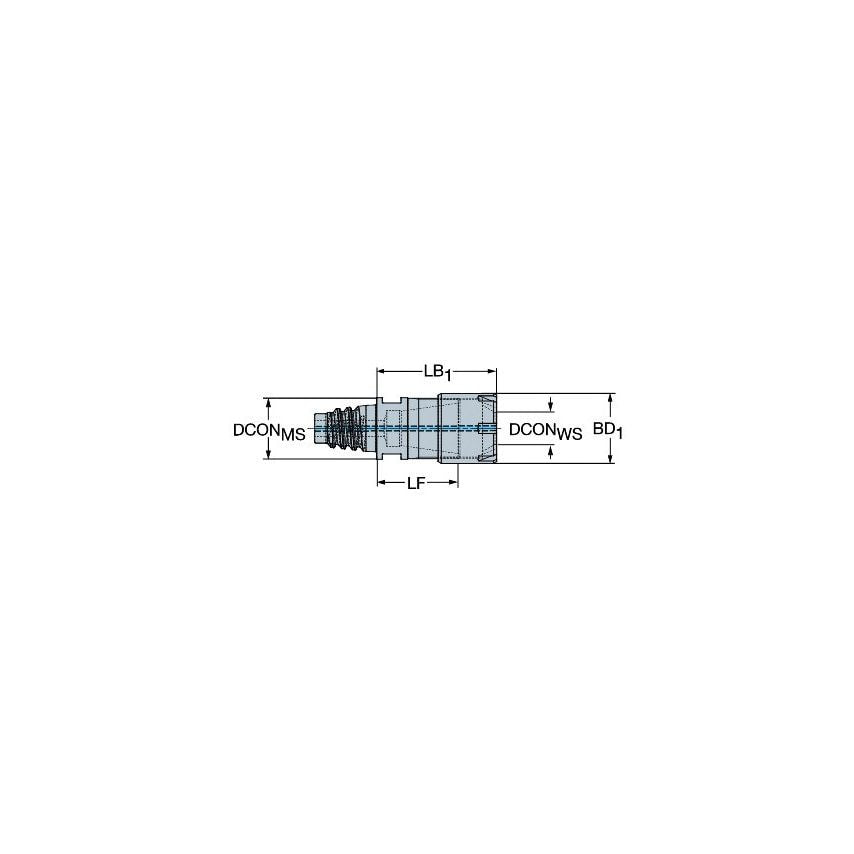

Product Range: Coromant EHTool Type: Turning centresTooling flexibility for small diametersAccess with shanksShanks in different lengths and materials enable you to bore hard-to-access features with ease.Productivity with integrated machine adaptorsThe short gauge length of an integrated machine adaptor plus cutter head makes it possible to increase productivity even in small, vibration-sensitive machines.Clearance and reachThe flexible range of undersized shanks in various lengths enables milling of deep shoulders with stability and clearance.Features & Benefits- Tooling flexibility for small diameters- Combine different tool holders and cutter heads to configure an optimized tooling solution for all your machining- The coupling is based on a centering screw that facilitates quick mounting of heads
| Adaptive Interface Machine Direction (ADINTMS) | Coromant EH - Metric - E12 |
| Body Half Taper Angle | 0\u00b0 |
| Connection Diameter | 11.7mm |
| Balanced By Design | Yes |
| Unit System | Metric |
| CoroPak | 110 |
| Coolant Exit Style Code | 1 |
| Body Diameter | 0.472441in |
| Data Chip Provision | No |
| Rotational Speed Maximum | 40000 1/min |
| Adaptive Interface Workpiece Direction | ER collet (DIN6499-B) -ER8 |
| Through Hole Function Property | Yes |
| MFR Part No. | 7323220204472 |
| Coolant Entry Style Code | 47 |
| Functional Diameter | 9.15mm |
| Body Material | Steel |
| Functional Length | 18mm |
| Weight | 0.018kg |
| Damping Property | No |
