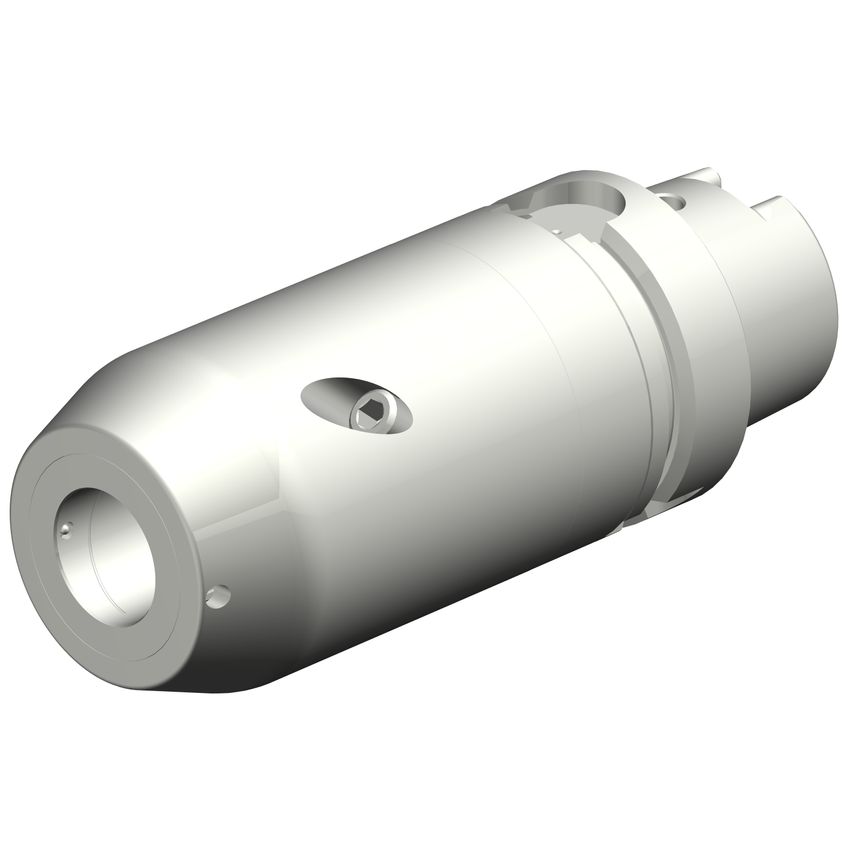

Product Range: CoroChuck 935High-precision hydraulic chuck for turningDesigned for turning operationsHigh-precision hydraulic chuck with fast, rigid and secure clamping, delivering superior pull-out security.Secure clampingCoroChuck 935 ensures four times the bar diameter clamping length every time.EasyFix technologyThe EasyFix solution secures correct centre height for reduced set-up time, excellent cutting action and improved insert life time.Application- Hydraulic chuck for turning operations- Optimized for machining with long overhangs- Machine tool set-up: Turning lathes with turretMulti-task machines with spindle- Suitable for most common machine interfaces
| Functional Length | 130mm |
| Balanced By Design | No |
| Body Material | Steel |
| Unit Measured | Metric |
| MFR Part No. | 7472578 |
| Functional Diameter | 48.01mm |
| Standards Met | ISO12164-3 |
| CoroPak | 18.1 |
| Through Hole Function Property | Yes |
| Coolant Entry Style | 1 |
| Connection Diameter | 63mm |
| Adaptive Interface Machine Direction (ADINTMS) | HSK -T - Size 63 |
| Weight | 2.63kg |
| Coolant Exit Style | 1 |
| Damping Property | No |
| Data Chip Provision | Yes |
| Data Chip Provision Size | D10/H4 |
