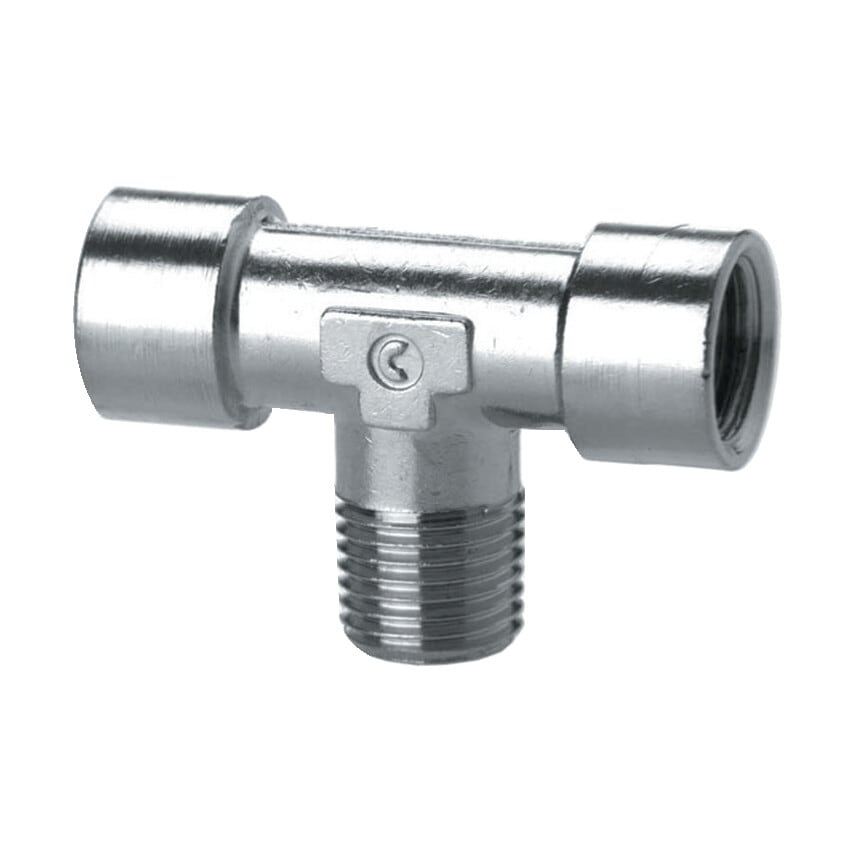

BSPT Adaptor Male/Female Branch Tees
Series 2060
Can be used with rigid PA tubes. A locking nut is provided and can be tightened both manually and with a spanner. The special shape of the guiding cone ensures that the tube cannot be accidentally cut.
Material: OT58 (nickel-plated).
Threads: GAS conical ISO 7 (BSPT). GAS cylindrical ISO 228 (BSP).
Pressure: 40bar.
Fluid: compressed air or other low pressure fluids.
Temperature: -40C to +120C.
| Product Type | Swivel Run Tee |
| Weight Each | 49g |
| Maximum Operating Temperature | +120\u00b0C |
| Connection Type | Thread x Thread x Thread |
| Thread Type | BSPP | BSPT |
| Minimum Operating Temperature | -40\u00b0C |
| Operating Temperature Range | -40 to 120\u00b0C |
| Thread Size | 3/8in |
| Material | Brass |
| Maximum Operating Pressure | 40bar |
| MFR Part No. | 2060 3/8-3/8 |
| Pressure Range | 40bar |
| Surface Finish | Nickel-Plated |
