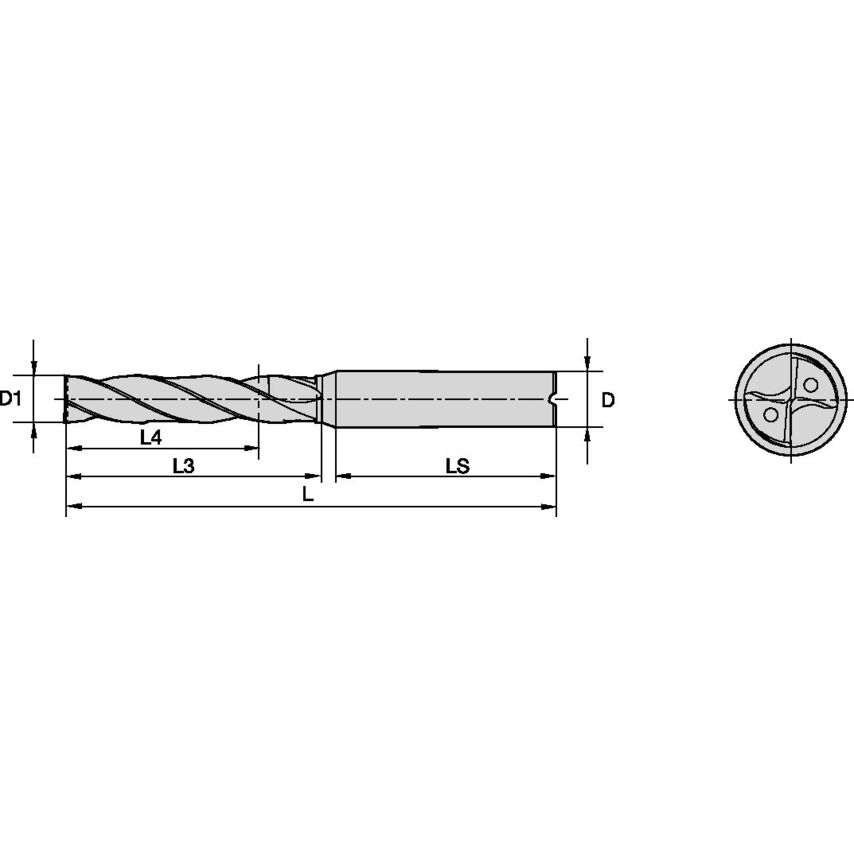

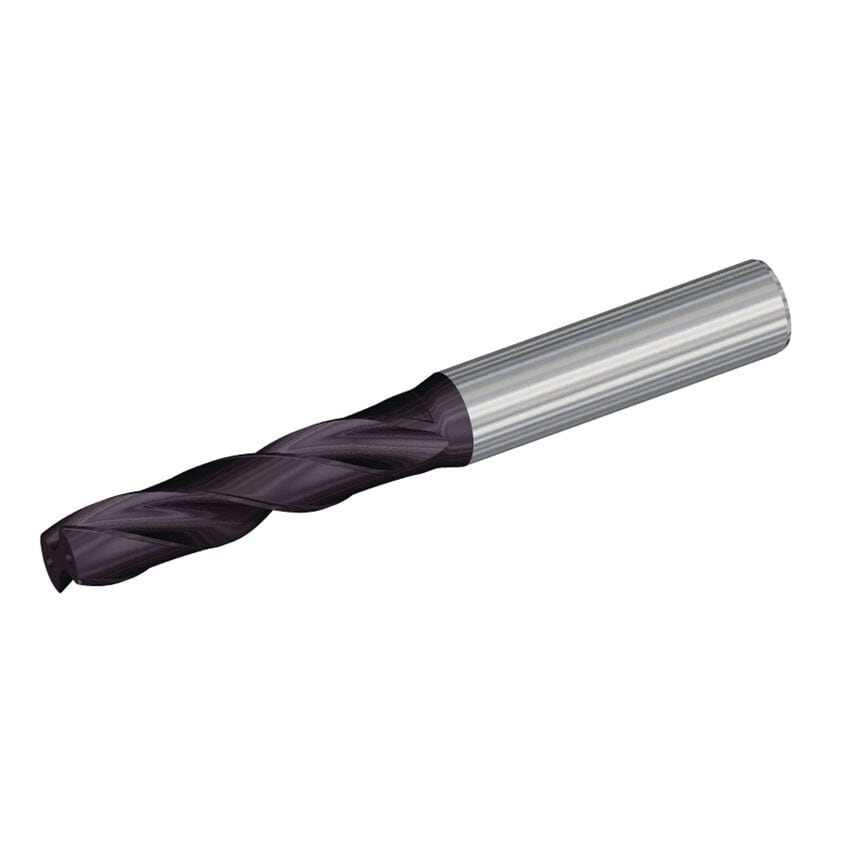

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| MFR Part No. | 3505146 |
| Shank Length | 48.0000mm |
| Adapter Type | Cylindrical |
| Flute Construction | Helical Flute |
| Drill Depth | 45mm | 45.0000mm |
| Overall Length | 115mm | 115.0000mm |
| Finish/Coating | TiAlN |
| Assembly Length | 71.515mm |
| Primary Material | Steel |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Clamping Length | 43mm |
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Hand Preference | Right |
| Helix Angle | 29.210 |
| Drill Diameter | 15.8750mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Length | 65mm | 65.0000mm |
| Functional Length | 114.5150mm |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Type | Right Hand Helix/Flute |
