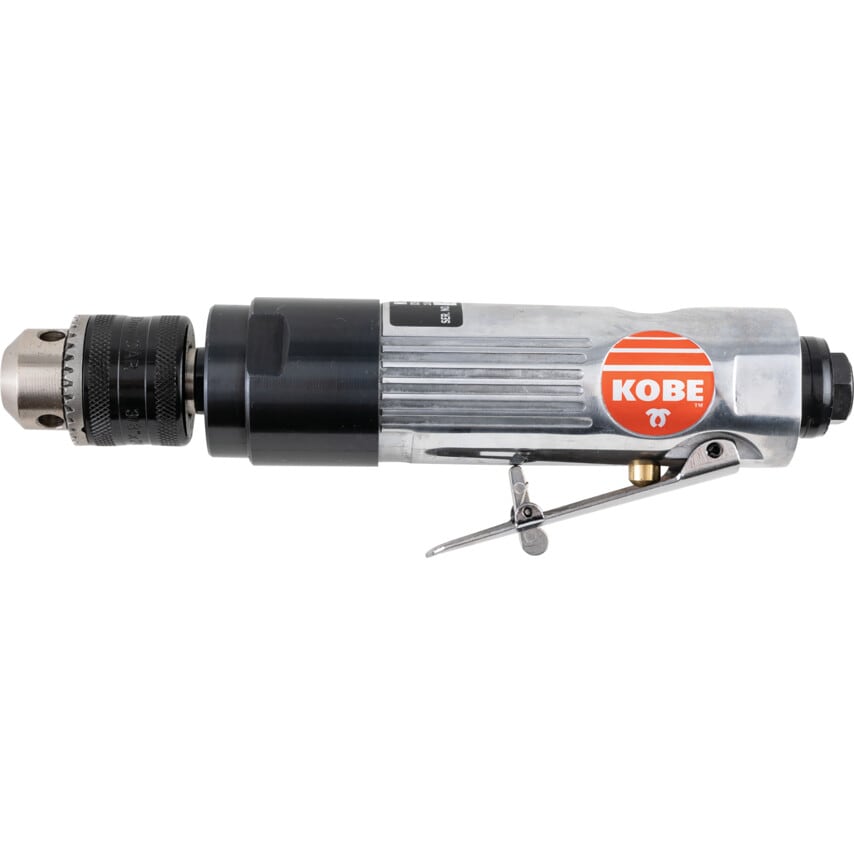

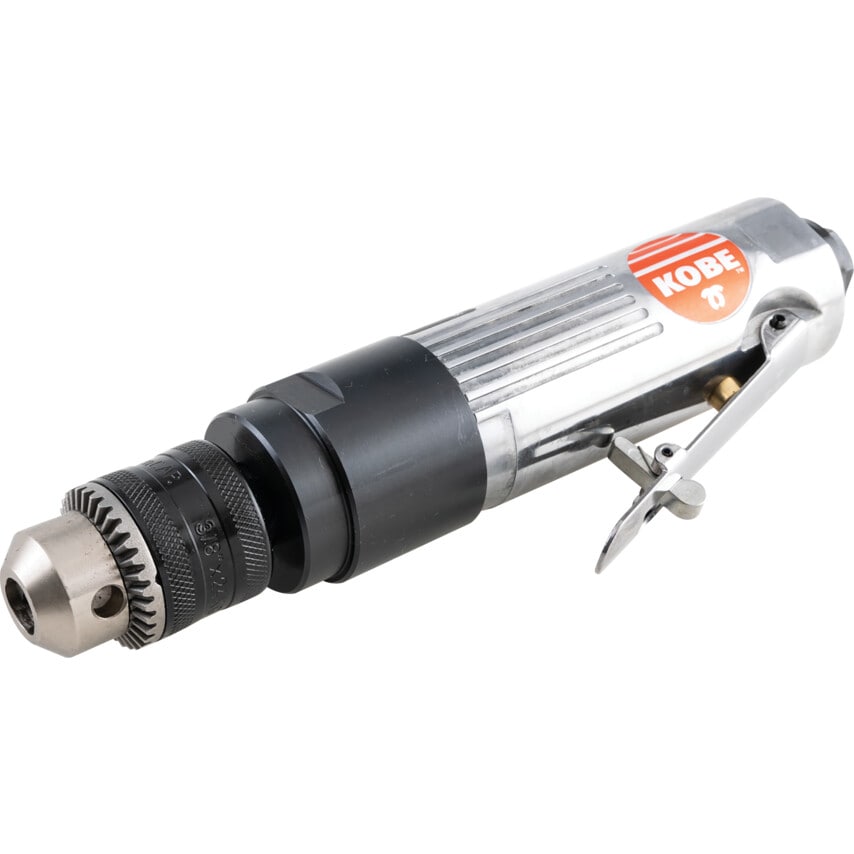

DS4510L
10mm Jacobs chuck, stall-resistant, safety lever throttle, high performance, planetary gearing.24 spindle thread.
Specifications:
Air inlet thread: 1/4" NPT.
Chuck capacity: 10mm.
Spindle thread: 3/8" - 24.
Minimum air hose size (ID): 3/8"(10mm).
Air pressure: 90PSI/6.3Bar.
Air consumption: 4CFM* (144 ltr/min).
Sound pressure level: 78 dB(A).
Sound power level: 96 dB(A).
Vibration level: 2.5 m/s2.
Overall length: 190mm.
*Based on a 15 second cycle per minute average use.
| Power Source | Air |
| MFR Part No. | DS4510L |
| Air Inlet Size | 1/4 NPT |
| Compatible Hose Inner Diameter | 10mm |
| Overall Width | 42mm |
| Chuck Type | Keyed |
| Maximum No Load Speed | 4 |
| Noise/ Vibration Information | Vibration Uncertainty K |
| Reversibility | Non-reversible |
| Air Consumption | 113ft\u00b3/min |
| Spindle Thread Size | 03/08/2024in |
| Horsepower | 0.45mm H2O |
| Overall Length | 190mm |
| Length | 190mm |
| Throttle Features | Safety Lever |
| Weight | 0.9kg |
| Item | Air Drill Driver |
| Features | Safety Lever |
| Width | 42mm |
| Model Number | DS4510L |
| Air Pressure | 90psi |
| Drill Orientation | Straight |
| Chuck Capacity | 1 to 10mm |
| Series | DS4510L |
| No Load Speed | 4500rpm |
| Power | 336W |
