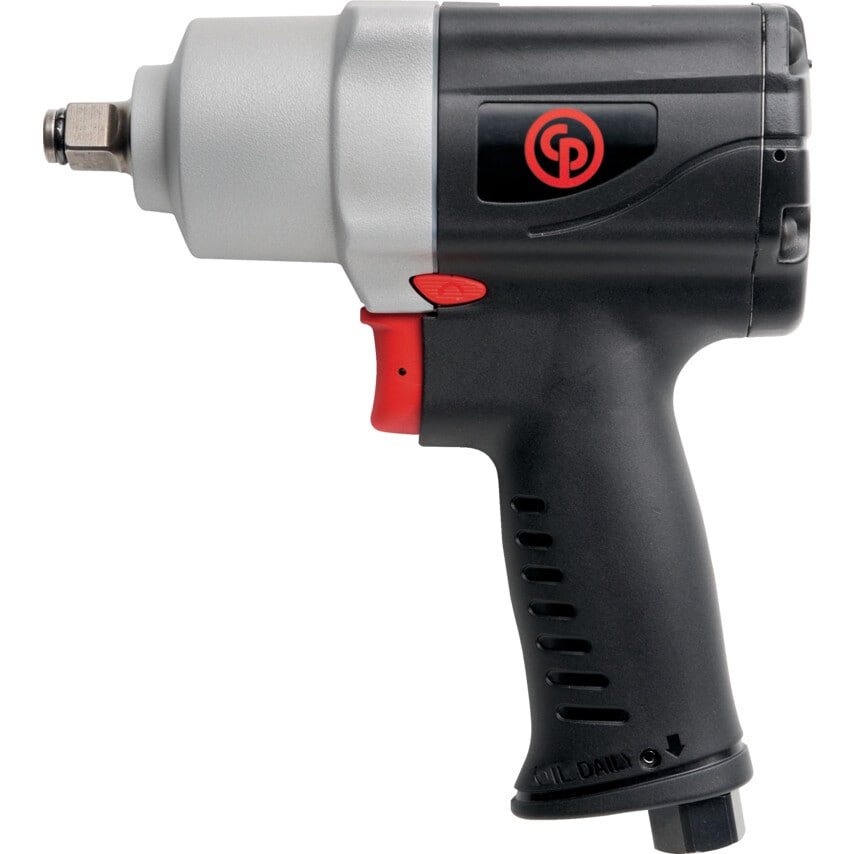

CP7739
Compact impact wrench.
Twin hammer clutch. Composite handle and magnesium clutch housing. S2S technology and three positive power settings. Full power in reverse up to 450ft.lbs/610Nm. Lightweight and low noise level tool.
Output drive: 1/2. Free speed: 9,900rpm.
Working torque range: 68 - 414Nm.
Maximum torque: 610Nm.
Ave. air consumption: 5cfm.
Air consumption @ load: 20cfm.
Air consumption @ load: 9.4l/s.
Air inlet NPTF: 1/4.
Sound pressure level: 92dBA.
Vibration a (ISO-28927-2): 6.9m/s2.
Vibration K (ISO-28927-2): 2.5m/s2.
Length: 163mm.
| Compatible Hose Inner Diameter | 10mm |
| Noise/Vibration Information | Sound Power 103 db(A) | Sound Pressure 92 db(A) |
| Maximum Torque | 610Nm |
| Item | Air Impact Wrench |
| Power Source | Air |
| Body Style | Pistol Grip |
| Height | 184mm |
| Blows per Minute | 1700 |
| Overall Height | 184mm |
| Drive Size | 1/2in |
| MFR Part No. | CP7739 |
| Average Air Consumption | 2.4L/sec |
| Overall Width | 55mm |
| Actuator | Trigger |
| Air Inlet Size | 1/4in |
| No Load Speed | 9900rpm |
| Length | 163mm |
| Model Number | CP7739 |
| Overall Length | 163mm |
| Air Consumption | 564L/min |
| Weight | 1.2kg |
| Actual Air Consumption | 9.4L/sec |
| Noise/ Vibration Information | Sound Power 103 dB(A) | Sound Pressure 92 dB(A) | Vibration 6.9 m/s\u00b2 (ISO-28927-2) | Vibration Uncertainty (K) 2.5 m/s\u00b2 |
| Square Drive Size | 1/2in |
| Torque Range | (Fwd) 68 - 414Nm |
| Width | 55mm |
| Minimum Compatible Hose Size | 10mm |
