SS1525K
1/4" NPT air inlet thread for 10mm air hose, 90PSI air pressure, 4cfm* air consumption, 10 - 30lbs/inch torque. 1/4" hex drive capacity.
Noise Level: 90dBA.
Sound Power: 104dBA.
Vibration: 3.2m/s.
Overall length: 210mm.

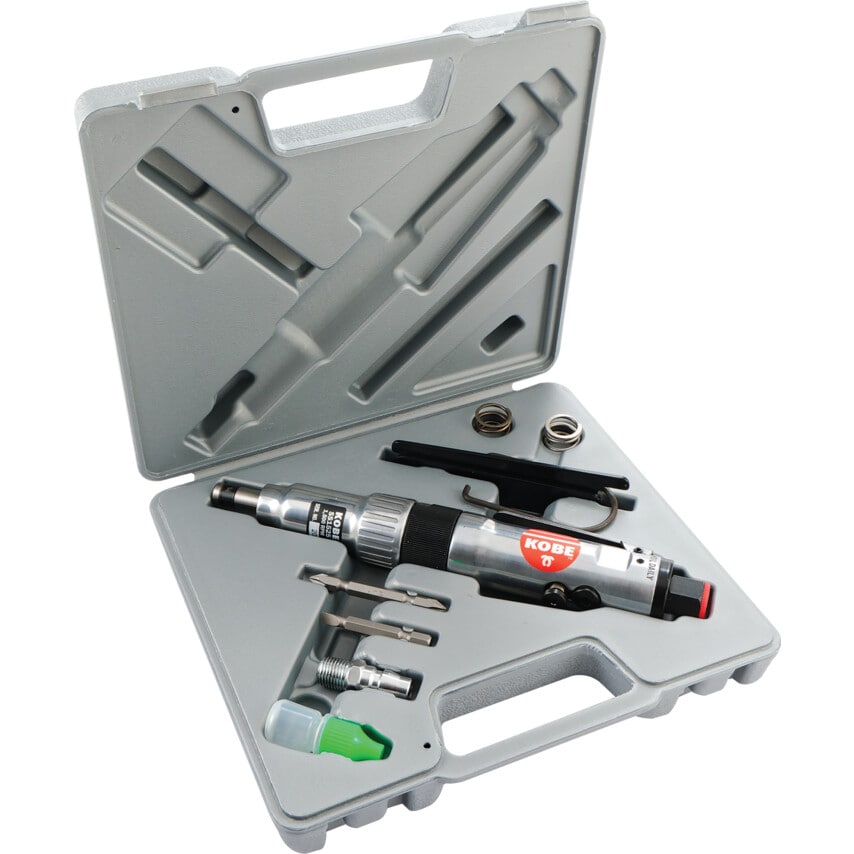

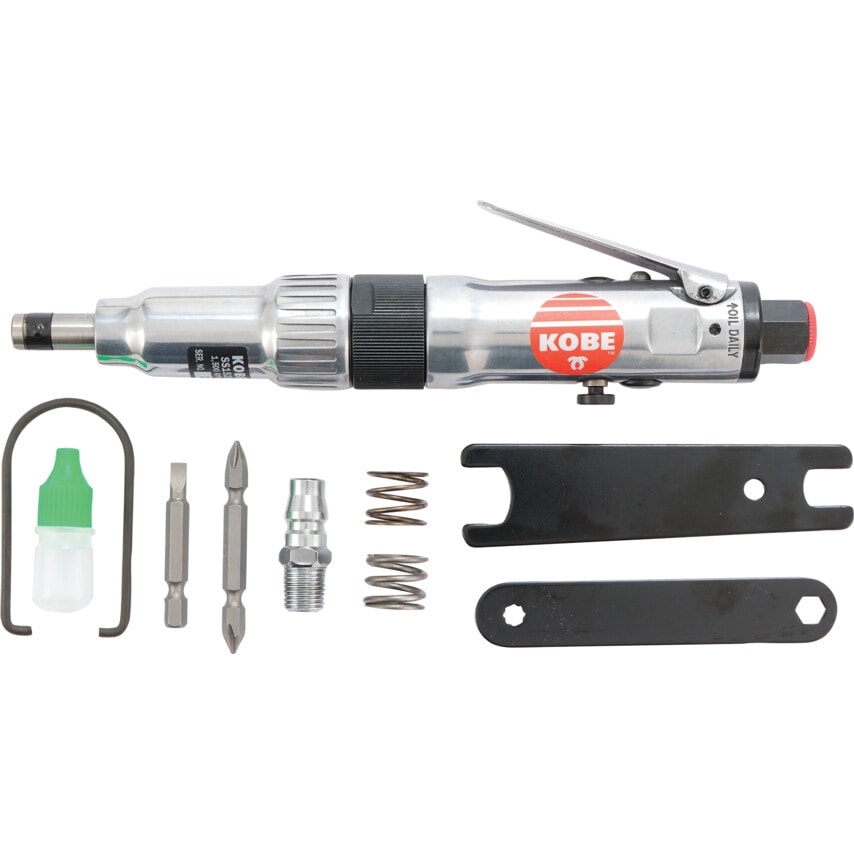

Contents:

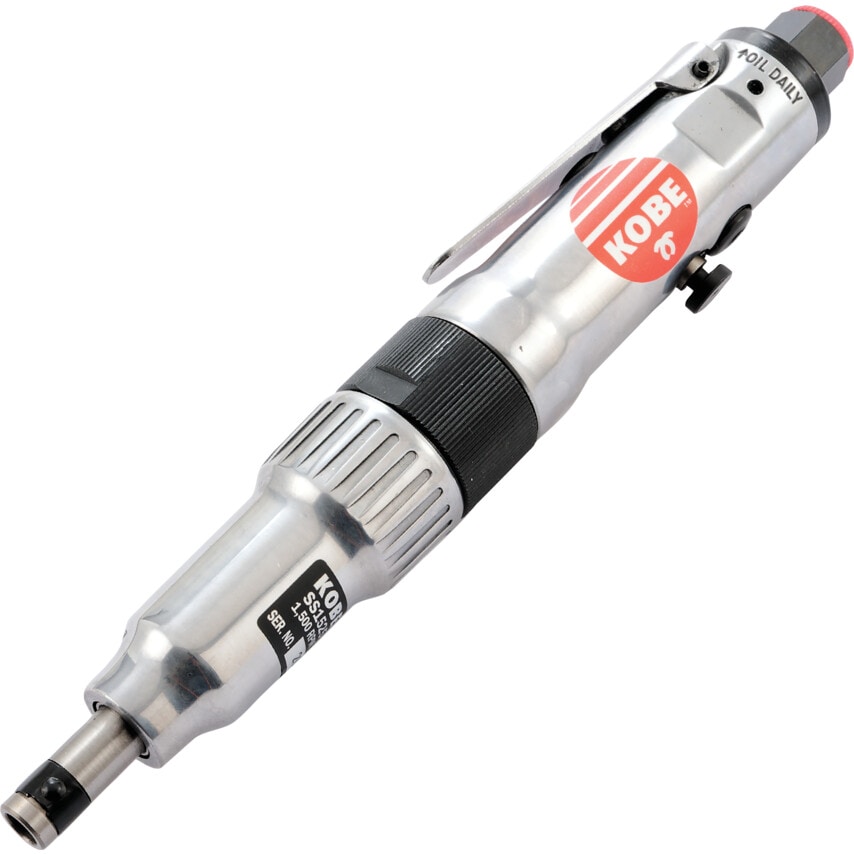

SS1525 screwdriver.
Two clutch springs:
Clutch Spring No.06-703-13 Dia 2.3mm; 1Nm - 3Nm
Clutch Spring No.06-703-23 Dia 1.8mm; 0.3Nm - 0.7Nm
2x spanners.
Clutch adjusting wrench.
1/4 NPT nipple.
Mini oil bottle.
No.1 x 65mm crosspoint double ended bit.
5 x 50mm slotted bit.
*Based on a 15 second cycle per minute average use.
| Overall Length | 220mm |
| Maximum No Load Speed | 1 |
| Product Type | Power Screwdriver Kit |
| Compatible Hose Outer Diameter | 14mm |
| Number of Bits | 2 |
| Air Inlet Size | 1/4 in NPT |
| Air Consumption | 4ft\u00b3/min |
| Model Number | SS1525K |
| No Load Speed | 0-1500rpm |
| Workplace Application | Industrial | Production |
| Torque Range | 0.3-0.7Nm |
| Drive Type | Hex |
| Overall Width | 43mm |
| Air Pressure | 90lb/in\u00b2 |
| Power Source | Air |
| Handle Style | Straight |
| Sound Pressure Level | 77dBA |
| Body Style | Inline |
| Reversibility | Reversible |
| Includes | (2) Spanners | (3) Clutch Springs | 1/4 NPT Nipple | 5 x 50mm Slotted Bit | Clutch Adjusting Wrench | Mini Oil Bottle | No.1 x 65mm Crosspoint Double Ended Bit | SS1525 Screwdriver |
| MFR Part No. | SS1525K |
| Clutch Adjustability | Adjustable Clutch |
| Compatible Hose Inner Diameter | 10mm |
| Weight | 0.6kg |
| Overall Height | 145mm |
| Speed Features | Variable Speed |
| Compatible Bit Size | 1/4in |
| Sound Power Level | 89dBA |
| Dimensions | 220 x 43 x 145mm |
