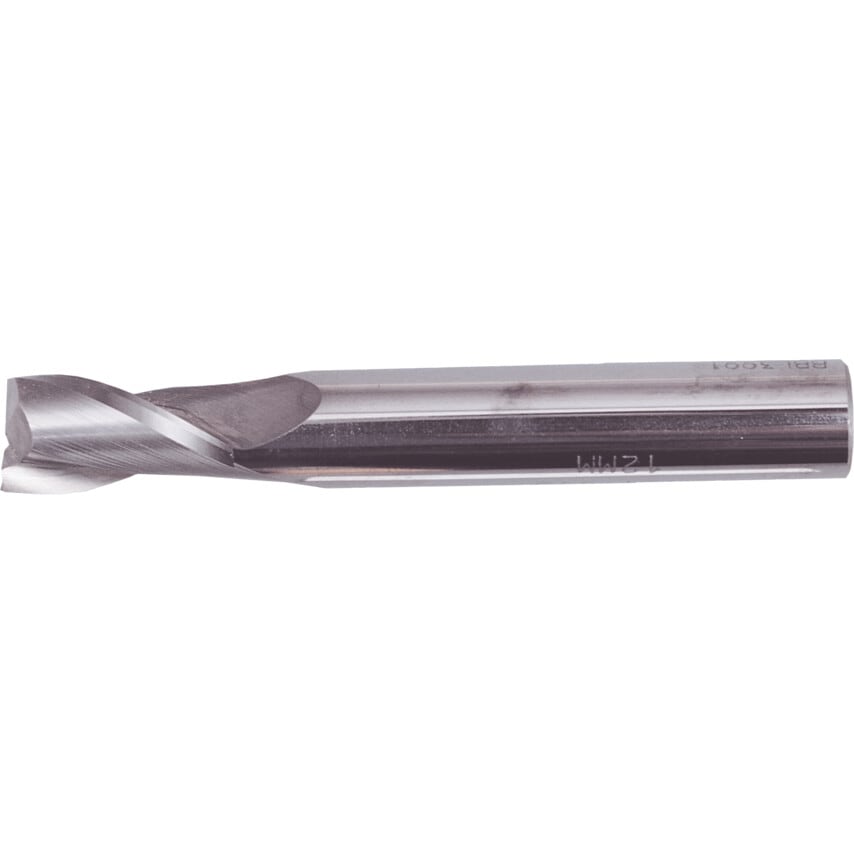

Short Series - 2 Flute - Metric
Centre cutting as standard. An advanced tool geometry designed for cutting aluminium and other non-metallic, non-ferrous materials requiring high machining rates. Al-Karb cutters will out-perform conventional end mills on these materials as the flute design allows maximum chip removal.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Shank Diameter | 8mm |
| Length Type | Short |
| Milling Application | Plunging | Routing | Slotting |
| Number of Flutes | 2 |
| Overall Length | 63mm |
| Cutter Style | Special Geometry Cutters |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Shank Type | Plain Round |
| Flute Length | 19mm |
| Plunge Type | Centre Cutting |
| Material Application | Aluminium | Nonferrous Metals |
| Cutter Diameter | 8mm |
| Flute Type | Helical |
| Material Grade | Ultrafine Micrograin |
| Finish/Coating | Uncoated |
| End Mill Type | Slot Drill |
