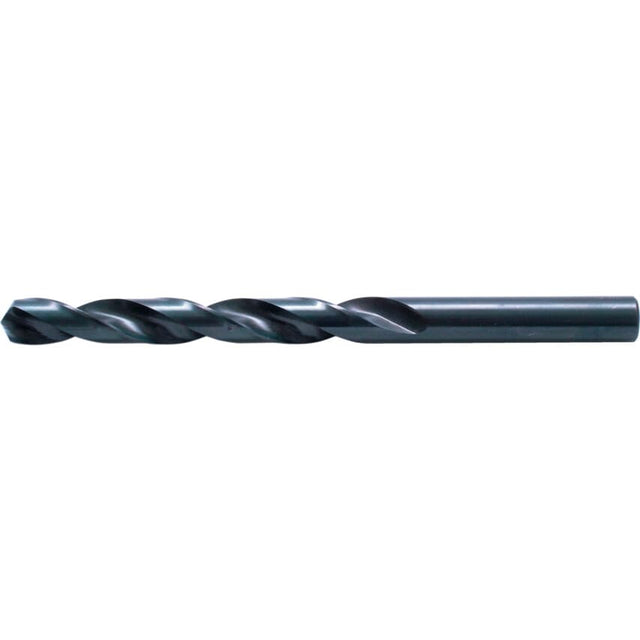

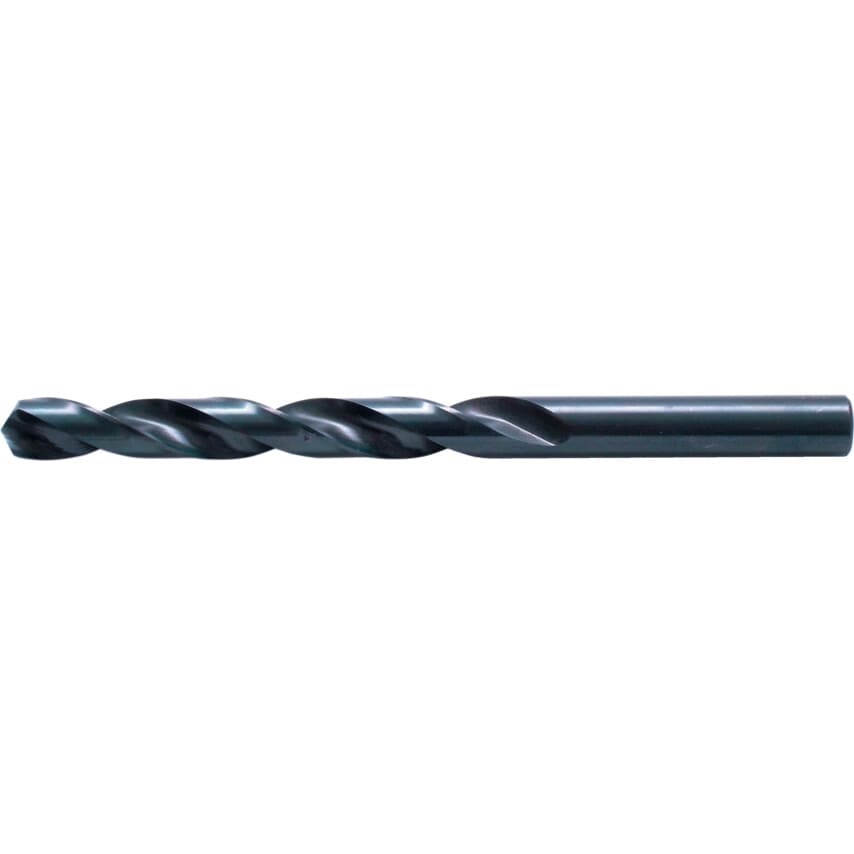

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining.
Features and Benefits
High speed steel construction for increased tool durability
Point angle of 118 for precise holemaking and precision cutting
Black oxide coating helps aid chip flow, reduce heat and prevent staining
Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite
Typical Applications
Cutting and drilling
Ferrous materials
Steel
Iron
Nickel
Brass
Aluminium alloy
Graphite
Notes
Available in sizes 0.25mm -20.00mm
Standards
Manufactured to BS 328/DIN338RN
| Standards Met | BS 328 | DIN 338RN |
| Helix Type | Normal Helix |
| Flute Length | 81mm |
| Drill Diameter | 8.9mm |
| Drill Diameter Metric | 8.9mm |
| Web Thickness | Standard |
| Series | J100 |
| Material | HSS |
| Flute Type | Spiral |
| Product Type | Jobber Drills |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Flute Construction | Ground flutes |
| Point Angle | 118\u00b0 |
| Shank Diameter Tolerance | F11 |
| Coolant Delivery | External |
| Finish/Coating | Black Oxide |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 125mm |
