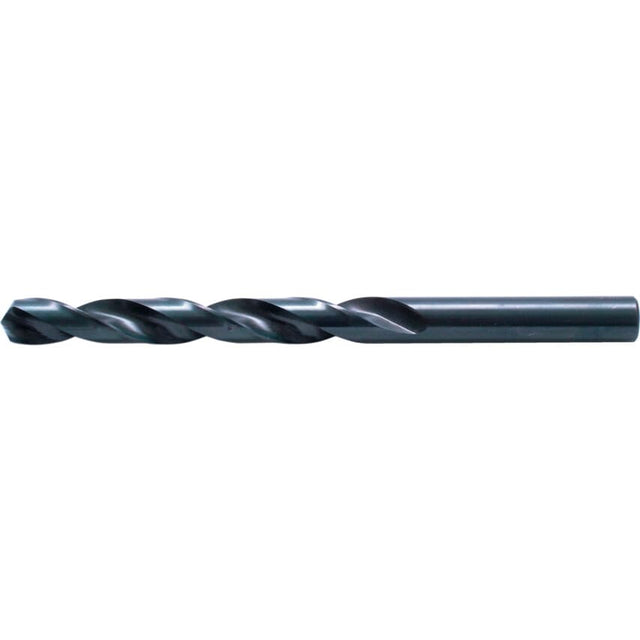

3.65MM HSS S/S Jobber Drill

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. The coating also helps reduce the risk of the tool staining. Features and Benefits High speed steel construction for increased tool durability Point angle of 118 for precise holemaking and precision cutting Black oxide coating helps aid chip flow, reduce heat and prevent staining Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite Typical Applications Cutting and drilling Ferrous materials Steel Iron Nickel Brass Aluminium alloy Graphite Notes Available in sizes 0.25mm -20.00mm Standards Manufactured to BS 328/DIN338RN

Series	J100
Drill Diameter Tolerance	H8
Standards Met	BS 328 | DIN 338RN
Flute Type	Spiral
Flute Construction	Ground flutes
Shank Diameter Tolerance	F11
Product Type	Jobber Drills
Overall Length	70mm
Coolant Delivery	External
Material	HSS
Helix Type	Normal Helix
Point Angle	118\u00b0
Drill Diameter	3.65mm
Flute Length	39mm
Web Thickness	Standard
Number of Flutes	2
Drill Diameter Metric	3.65mm
Cutting Direction	Right Hand
Point Type	Split Point
Finish/Coating	Black Oxide
