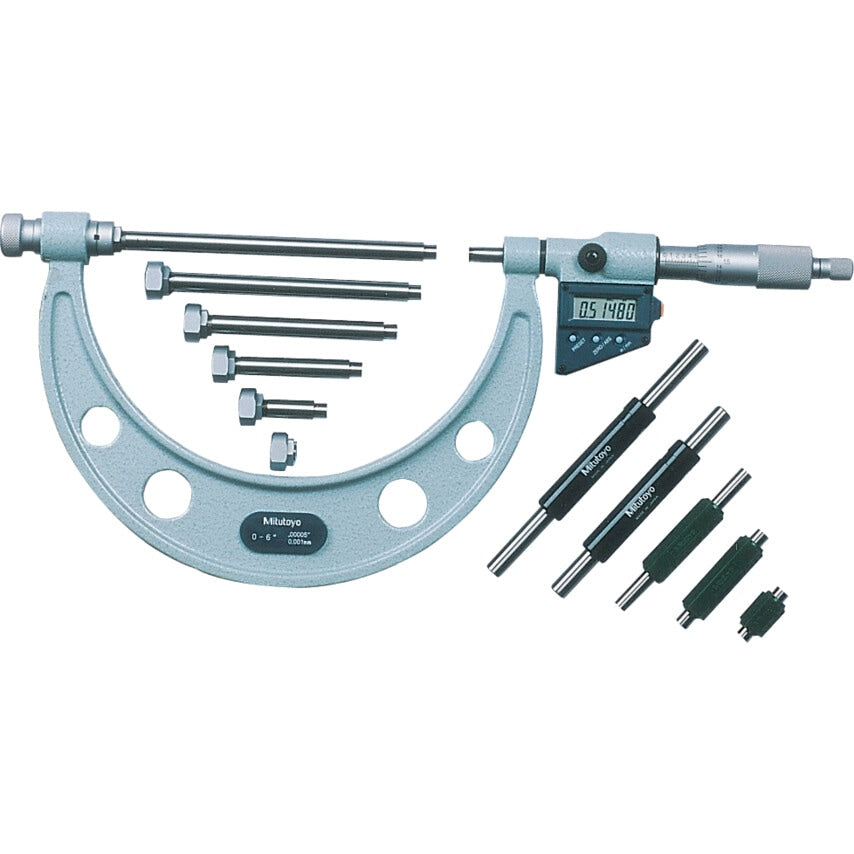

One piece carbide tip spindle and six interchangeable anvils. Positive locking clamp and ratchet stop. Supplied with standards. Power supply: battery 1x SR44 Order Code PAN- 904-5020K supplied.
Accuracy:
Parallelism: (2+L/100)mm (fraction rounded down).
Flatness:
within 0.6m for up to 300mm,
within 1.0m for up to 1000mm.
Instrument error: +(4+L/75)m (fraction rounded up).
Resolution: 0.001mm/0.00005".
| Includes | 1 Battery | Box | Gauge Blocks | Inserts | Keys |
| MFR Part No. | 340-351-30 |
| Resolution | 0.001mm |
| Additional Features | Supplied with Setting Standards for Each Range | Wide Measuring Range with Interchangeable Anvils | With Ratchet Stop for Constant Force |
| Measuring Range | 0 - 150mm |
| Weight Each | 960g |
| Ingress Protection Rating (IP Rating) | IP65 |
| Data Output | SPC |
| System of Measurement | Imperial | Metric |
