A920 - HSS-Co PFX Stub Drills
High productivity 'one-hit' drilling to 3xD. Excellent performance across a wide range of materials. Parabolic flute design promotes constant chip flow.
Size range: 1.0 - 20.0mm. Manufactured to BS 323, DIN1897, ansi.
A921 - HSS-Co PFX Alcrona Top Stub Drills
High productivity 'one-hit' drilling to 3xD. Excellent performance across a wide range of materials. Parabolic flute design promotes constant chip flow. Alcrona Top coating for extended tool life
Size range: 2.5 - 16.0mm.
Manufactured to BS 323, DIN1897, ansi.

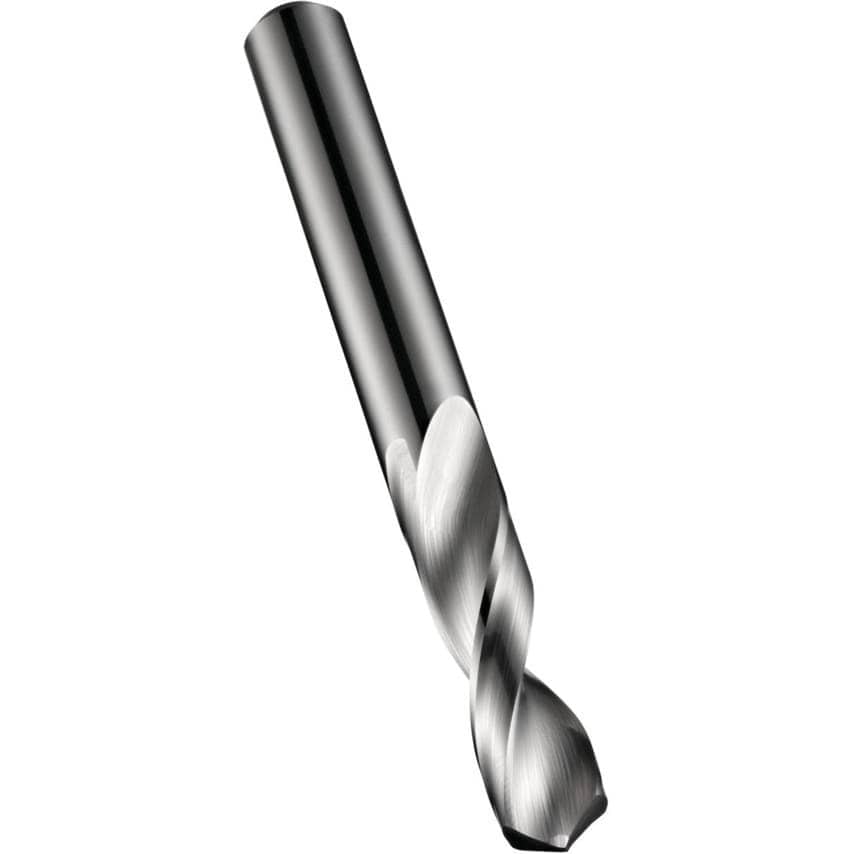

R120 - Carbide Stub Drill
For general carbide drilling applications.

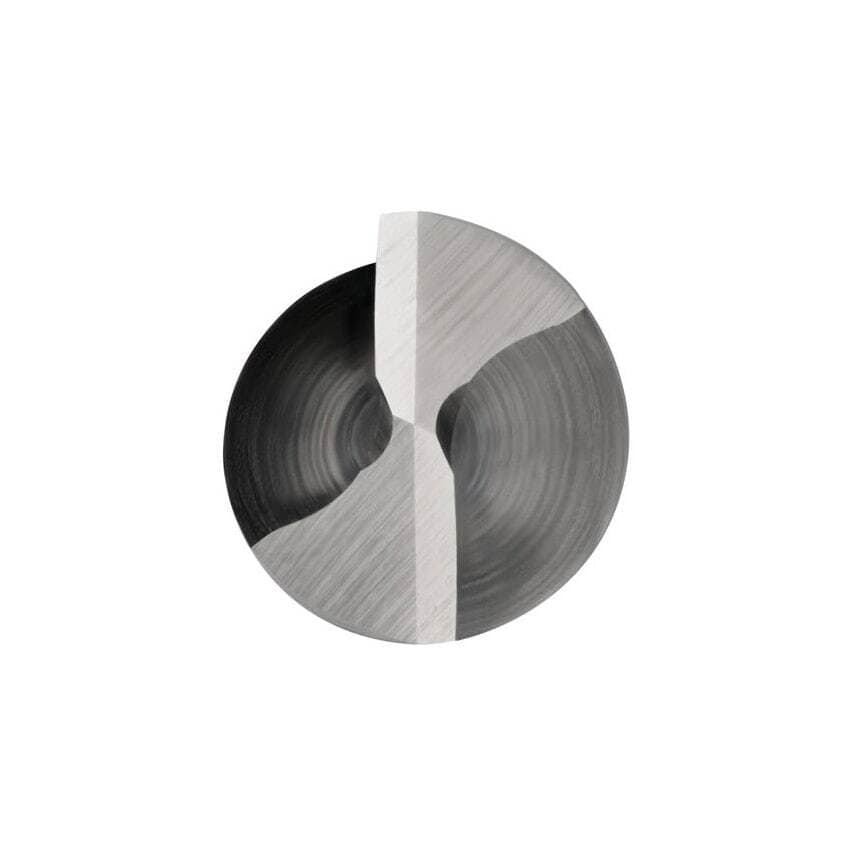

120 four-facet point for improved accuracy and hole quality.
Bright finish.
Size range: 1.0 -12.0mm.
Manufactured to BS 323, DIN6539.
| Cutting Direction | Right |
| Spiral Form | Standard Spiral |
| Point Type | Four Facet |
| Shank | Cylindrical shank |
| Material | HM |
| Overall Length | 102mm |
| Number of Pieces | 1 |
| Unit of Measurement | Metric |
| Number of Flutes | 2 |
| Point Angle | 120\u00b0 |
| Finish/Coating | Bright |
| Helix Type | Normal Helix |
| Drill Diameter Tolerance | H7 |
| MFR Part No. | R12012.0 |
| Flute Length | 51mm |
| Finish | Bright |
| Series | R120 |
| Standards Met | DIN 6539 |
| Flute Type | Spiral |
