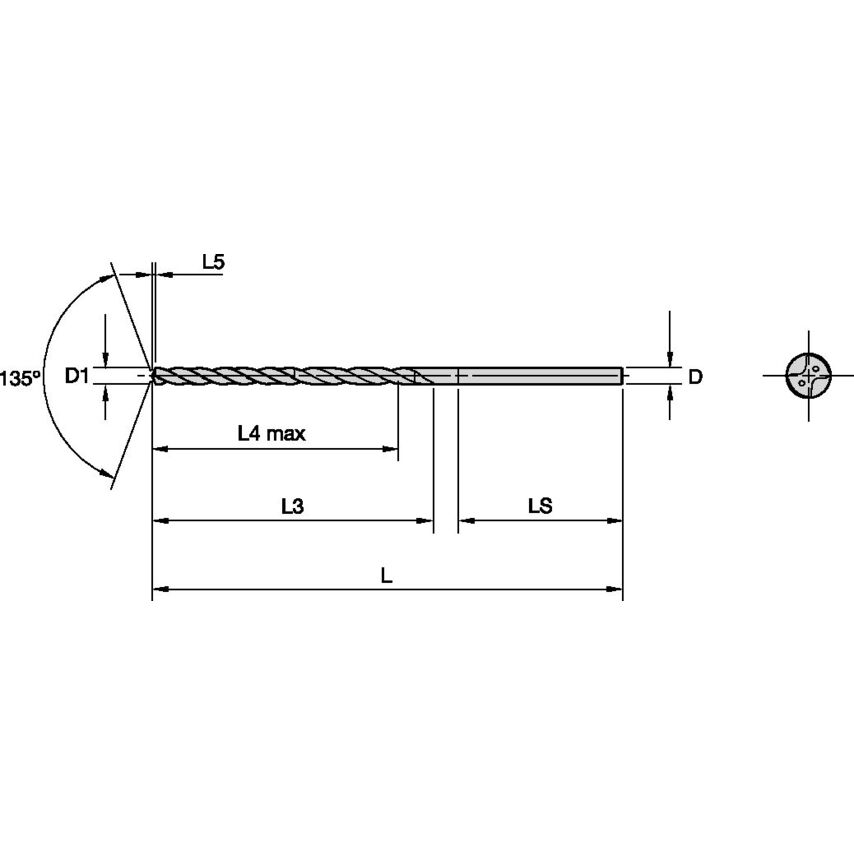

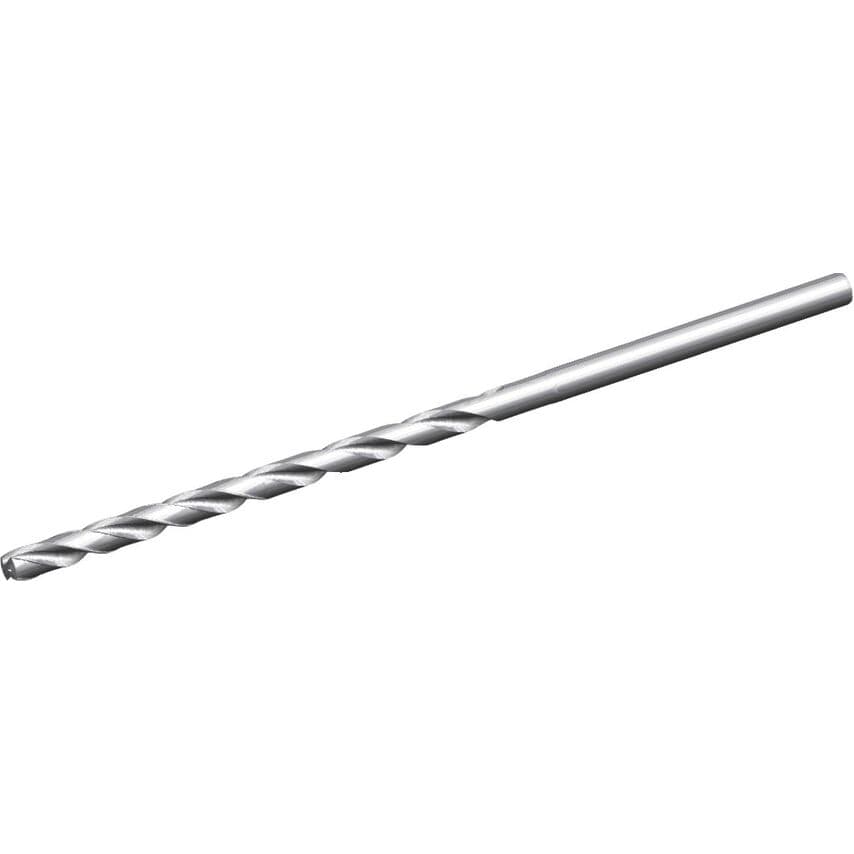

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Delivery | Off-center Axial Coolant |
| Clamping Length | 36.525mm |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 13.0000mm |
| Overall Length | 276mm | 276.0000mm |
| Coolant Diameter | 2.0000mm (0.0441in) |
| Flute Construction | Helical Flute |
| Assembly Length | 231.66mm |
| Number of Flutes | 2 |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| MFR Part No. | 3891688 |
| Drill Point | 2.34mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Drill Depth | 195mm | 195.0000mm |
| Drill Diameter | 12.7000mm |
| Shank Length | 50.0000mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Helix Angle | 29.424 |
| Flute Length | 222mm | 222.0000mm |
| Primary Material | Non-Ferrous Materials |
| Functional Length | 273.6600mm |
