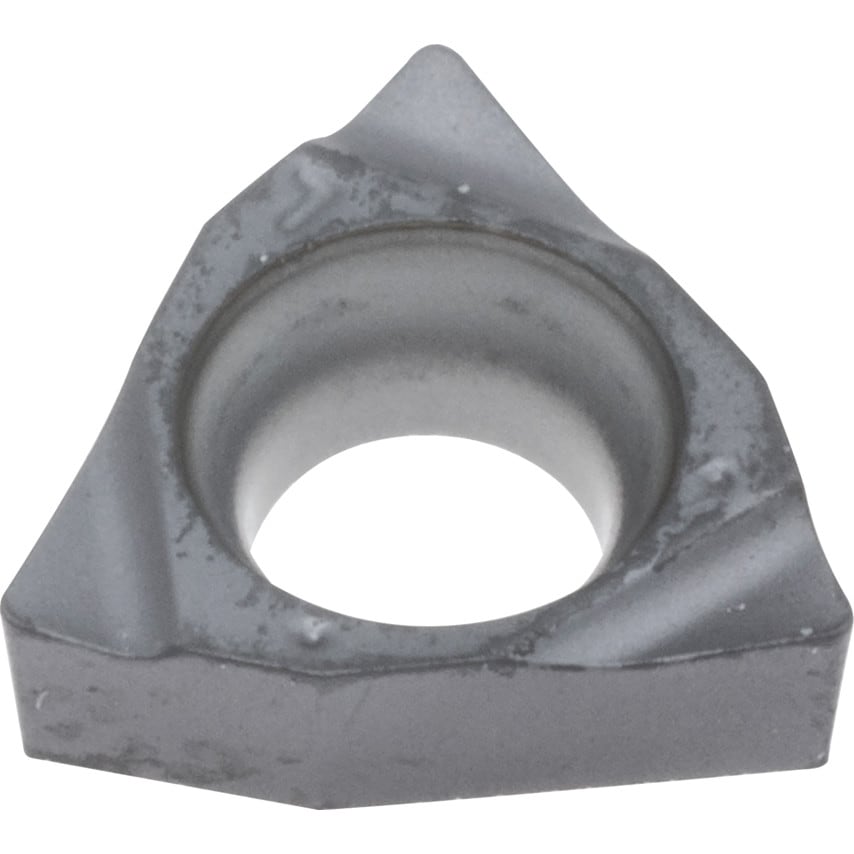

WBMT Turning Inserts
80 Trigon Insert
5 positive flank inserts with a ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
Insert Grade : IC354
ISO Range - (P20-P40)(M10-M30)
Grade or Coating Type: PVD
Coating Layers: TiCN
A thin PVD coated TiCN layer on a P40 substarte. High toughness. For general Applications in parting and grooving steel, alloy and stainless steel atmedium to high cutting speeds.
| Material Application | Stainless Steels | Steels |
| Corner Radius | 0.2 |
| Pack Quantity | 1 |
| MFR Part No. | 5503038 |
| Cutting Edge Length | 6.5mm |
| Thickness | 1.59mm |
| Cutting Direction | Left Hand |
| Clearance Angle | 5\u00b0 |
| Inscribed Circle | 9.52mm |
| ISO Cut | M10 to M30 | P20 to P40 |
| Material | Carbide |
| ISO Category | M | P |
| Finish/Coating | TiCN |
| ISO Designation | WBMT 060102L |
| Insert Style | WBMT |
| Shape | Trigon |
| Insert Size | 020104 |
| Manufacturer Grade | IC354 |
| ISO Category Grade | M | P |
