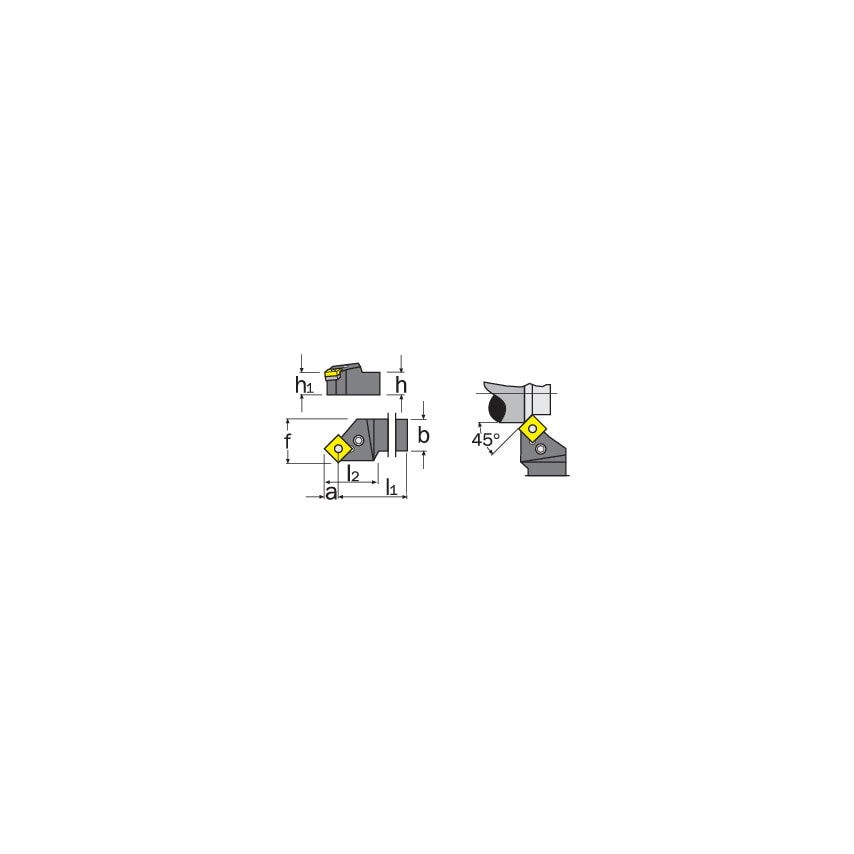

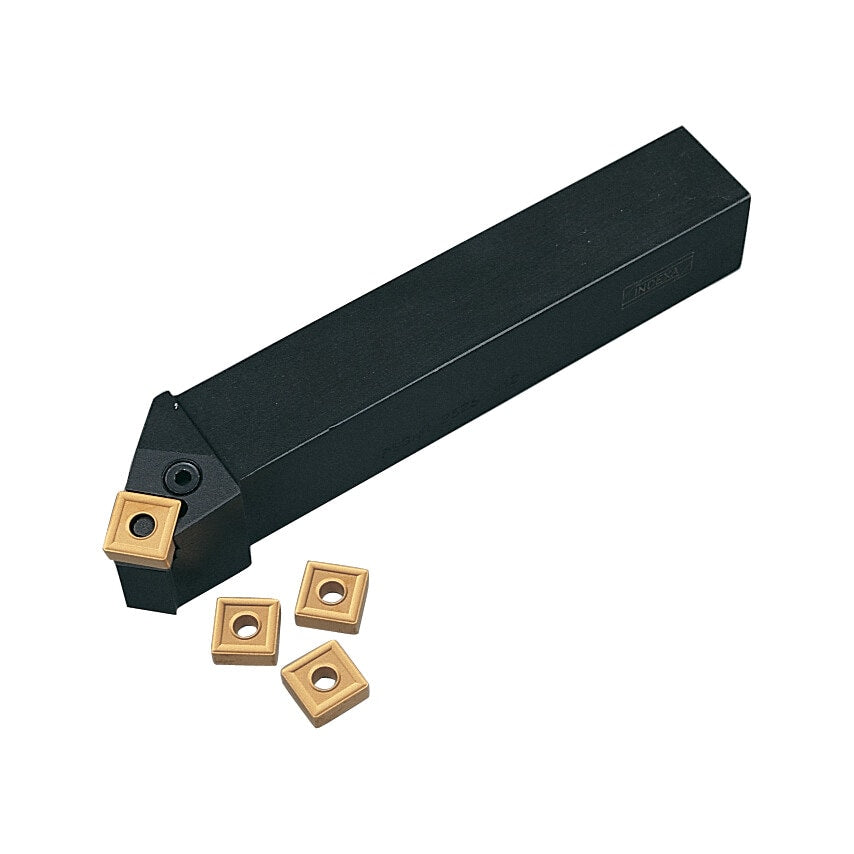

45 offset approach for negative square inserts.
| Shank Height | 20.00mm |
| Cutting Direction | Right Hand |
| Centre to Cutting Tip | 25mm |
| Cutting Height | 20.00mm |
| Clearance Angle | 0\u00b0 |
| Insert Size | 1204 |
| Approach Angle | 45\u00b0 |
| Cutting Height (h1) | 20mm |
| Insert Style | SN_A | SN_G |
| Insert Shape | Square |
| Overall Length | 125.00mm |
| Coolant Delivery | External |
| Insert Holding Type | Lever Lock |
| Head Length (l2) | 28 |
| Shank Height (h) | 20mm |
| Set Type | Individual Toolholder |
| Shank Style | Offset |
| Shank Material | Steel |
| MFR Part No. | 106-3540 |
| Side to Cutting Tip (f) | 25 |
| Toolholder Style | PSSN |
| Neck Length | 28mm |
| ISO Designation | PSSNR 2020K12 |
| Shank Width (b) | 20 |
| Overall Length (l1) | 125mm |
