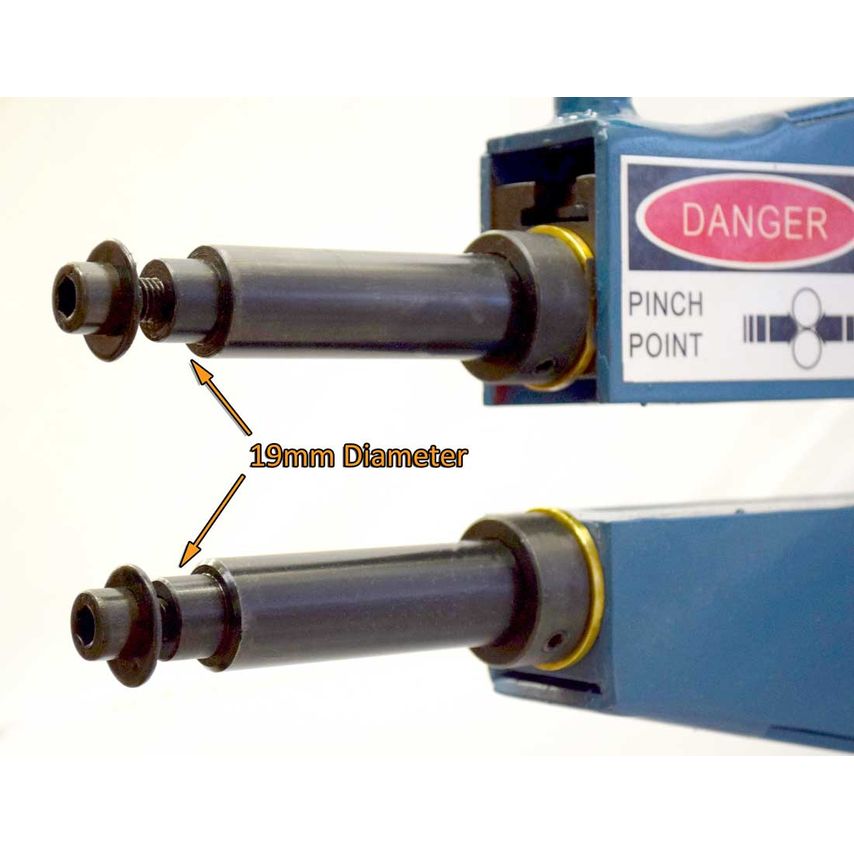

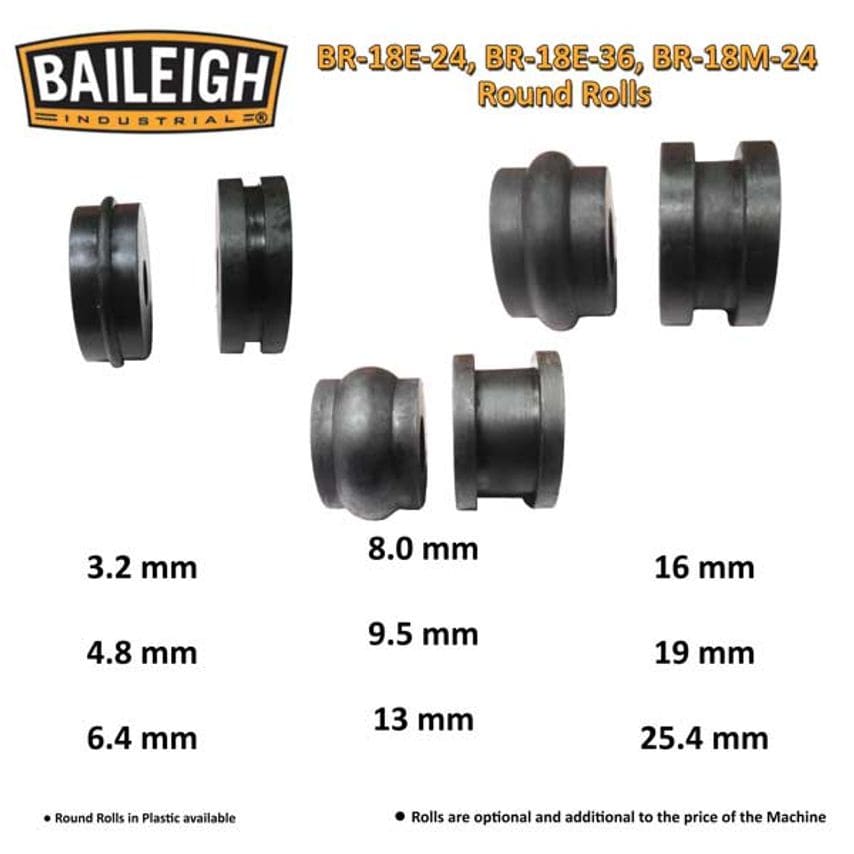

The BR-18E-24 power bead roll has a capacity of 1.25mm mild steel and 1.6mm aluminum. Powered by 220V, 50hz this variable speed bead roller is perfect for most beading applications. The 610mm throat depth is perfect for putting beads in 2 metre x 2.5 metre sheets of sheet metal but is compact enough to make even the most intricate beading patterns. The frame is made from heavy plate steel that is fully welded for further rigidity. The bead depth is adjustable via the top roll. Baileigh Industrial offers many sets of tooling for the BR-18E-24 bead roll and the shaft diameter is and will fit most commercially available roll sets.
\n
\nAll moving parts on the BR-18E-24 have bronze bushings for long life. A powerful 220 volt, 50hz industrial grade motor and gearbox drive the rolls forward or reverse. Control of this power bead roll is by a variable speed foot pedal that allows the operator to have both hands free to work the material.
\n
\nLike most Baileigh Industrial bead rolls, the BR-18E-24 comes with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.
\n
\nThe BR-18E-24 is almost always in stock for fast deliveries. Contact Baileigh now for additional details.
\n

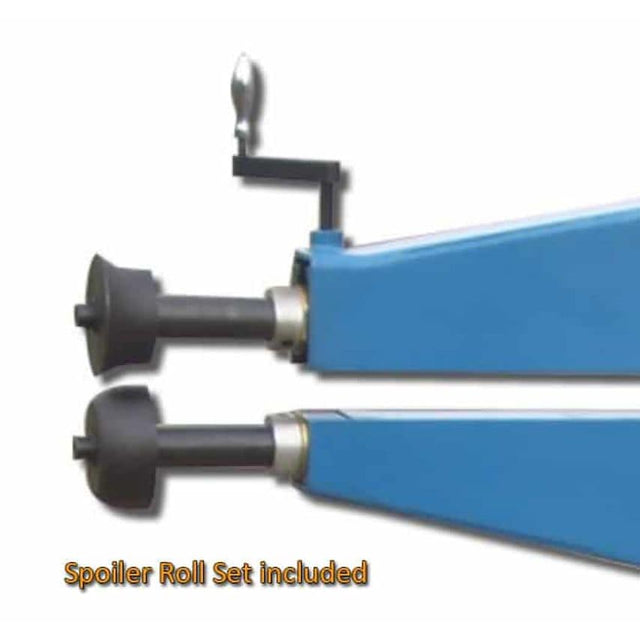

\nThere is 1 set of spoiler rolls that come with this machine. Any other rolls are optional and extra to the cost of the machine.
| Throat Depth | 610mm |
| Frequency | 50Hz |
| Voltage | 220V |
