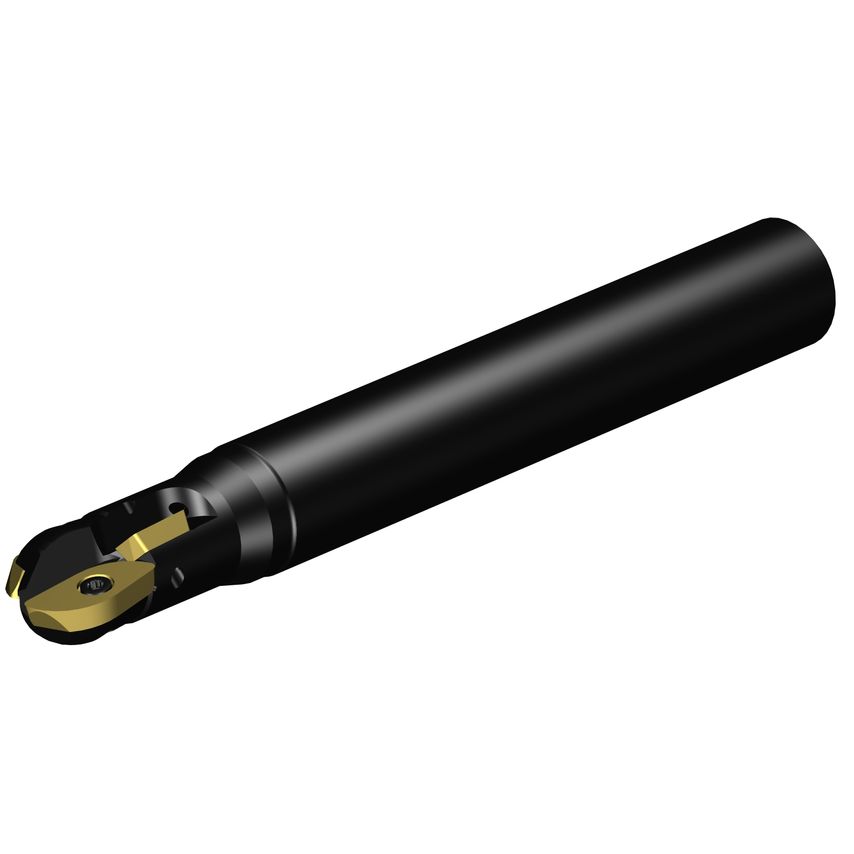

A metal remover for rough and semi-finish profilingCoroMill 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.Features.& Benefits- Ball nose cutter for roughing to semi-finishing- 2 cutting edges- Internal coolant
| Rotational Speed Maximum | 19500 1/min |
| Unit Measured | Metric |
| Maximum Ramping Angle | 85\u00b0 |
| CoroPak | 99.1 |
| MFR Part No. | 11105640 |
| Hand Preference | Right |
| Connection Diameter | 32mm |
| Maximum Plunge Depth | 15mm |
| Coolant Entry Style | 1 |
| Weight | 1.33kg |
| Body Diameter | 1.05512in |
| Body Half Taper Angle | 0\u00b0 |
| Cutter Diameter | 30mm |
| Functional Length | 250mm |
| Material | Steel |
| Usable Length | 60.4mm |
| Cutting Diameter | 30mm |
| Body Material | Steel |
