R216-30B32-070 End Mill

Sandvik Coromant  |  SKU: ZT1010522P
Cash
£549.99
Standard price
Pro
£533.49
With tools.com Pro
Finance
£11.31
/week
Approx. See your options
Save on every purchase
Theft replacement plan

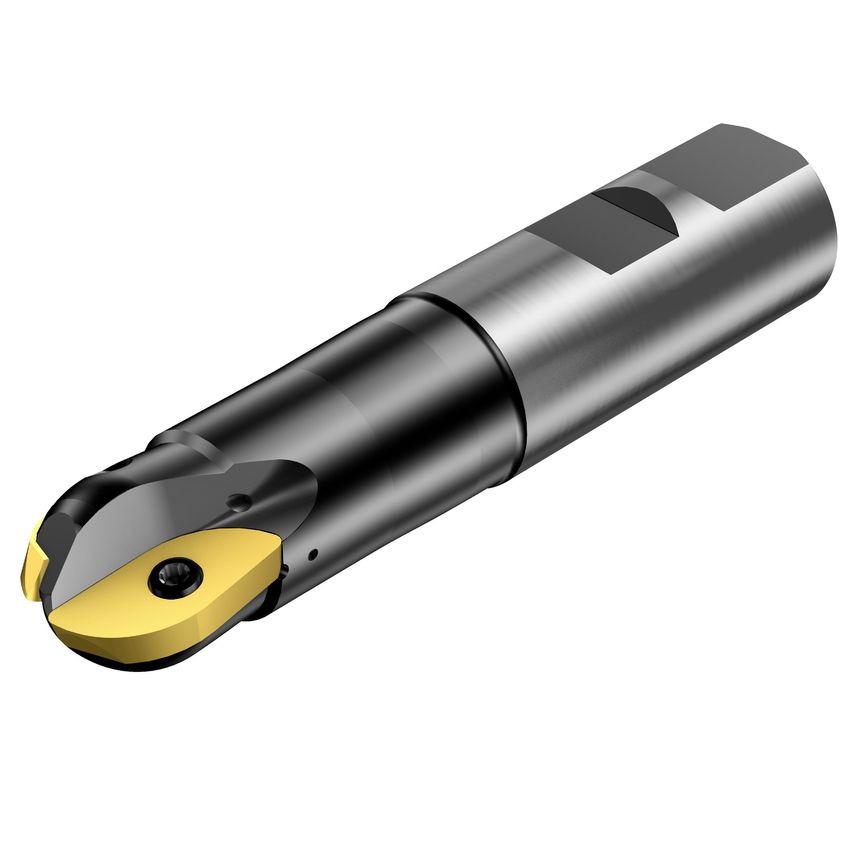

A metal remover for rough and semi-finish profilingCoroMill 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.Features.& Benefits- Ball nose cutter for roughing to semi-finishing- 2 cutting edges- Internal coolant
Material Steel
Weight 0.62kg
Rotational Speed Maximum 19500 1/min
Coolant Entry Style 1
Maximum Ramping Angle 85\u00b0
Body Material Steel
Hand Preference Right

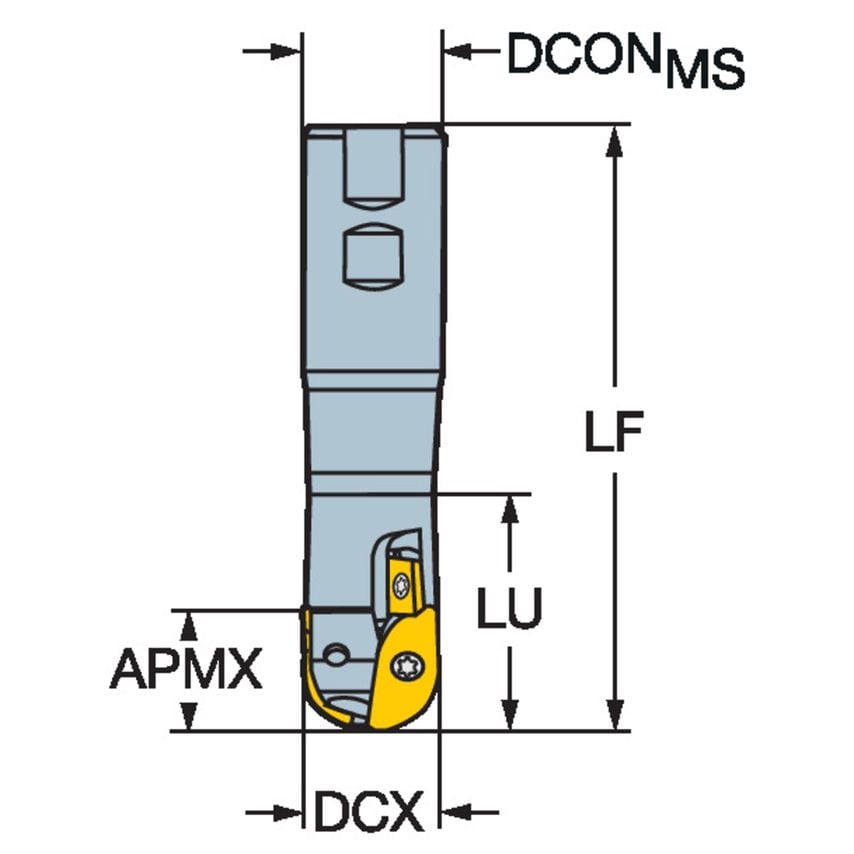

Usable Length 60.4mm
CoroPak 99.1
Functional Length 131mm
Body Diameter 1.05512in
MFR Part No. 11105651
Cutting Diameter 30mm
Cutter Diameter 30mm
Maximum Plunge Depth 15mm
Unit Measured Metric
Body Half Taper Angle 0\u00b0
Connection Diameter 32mm
