Regular Series

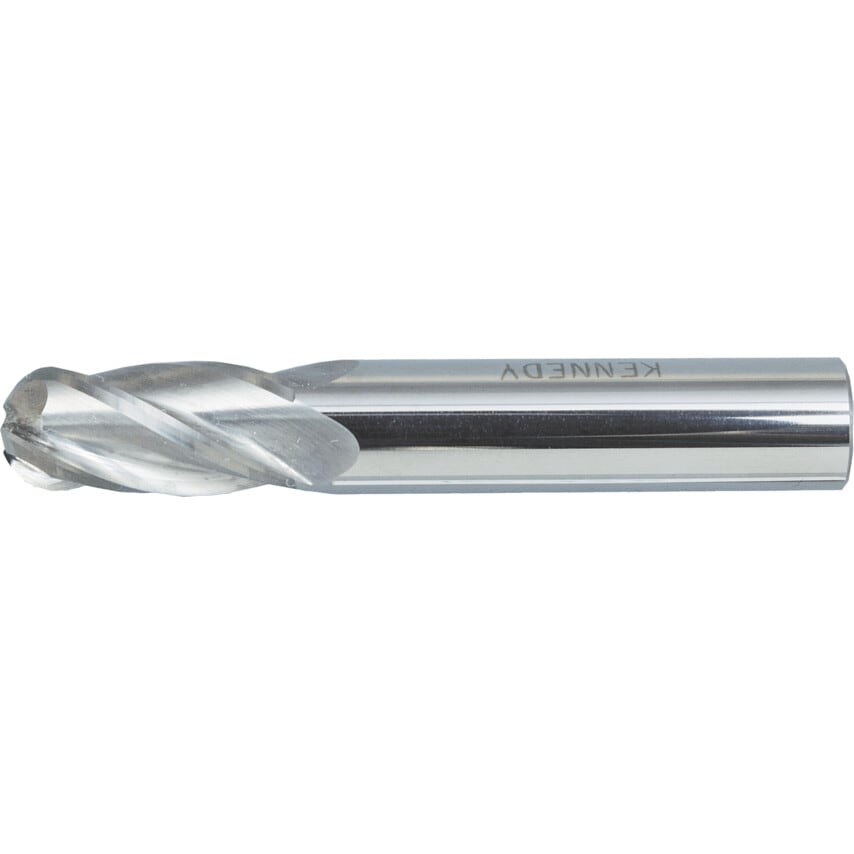

For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
| Coolant Delivery | External |
| Cutter Diameter | 2mm |
| Material | Solid Carbide |
| Flute Length | 6.3mm |
| Cutting Direction | Right Hand |
| Material Application | Aerospace Alloys | Aluminium | Aluminium Alloys | Bronze | Cast Iron | Copper | Stainless Steels | Steels |
| Length Type | Regular |
| Cutter Style | Ball Nose |
| Cutting Diameter (mm) | 2mm |
| Finish/Coating | Uncoated |
| Milling Application | High-feed Milling |
| End Mill Type | End Mill |
| Reach Type | Standard Neck |
| Standards Met | ANSI |
| Flute Type | Helical |
| Ball Nose Type | Ball Nose End Mill |
| Shank Diameter | 3mm |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| Overall Length | 38mm |
