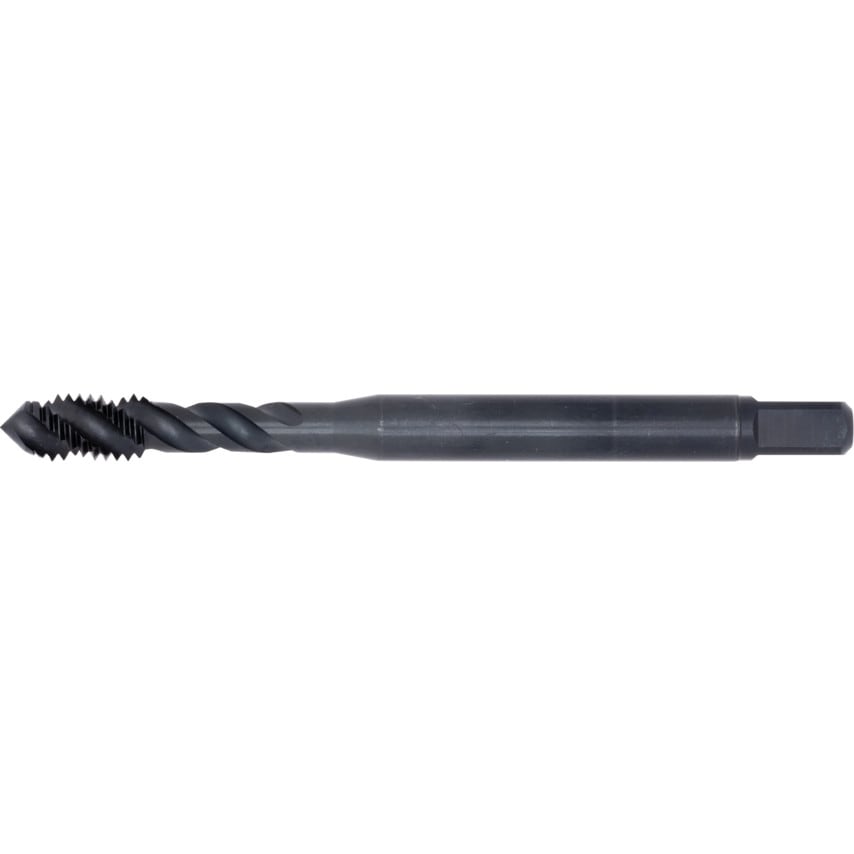

Series E003 HSS-E Spiral Flute Taps offer excellent performance in a wide range of materials thanks to their high speed steel and cobalt construction with steam tempered coating.
Feratures and Benefits
Multi-application machine taps offering superb performance in a wide range of materials.
Steam tempered for excellent heat and wear resistance

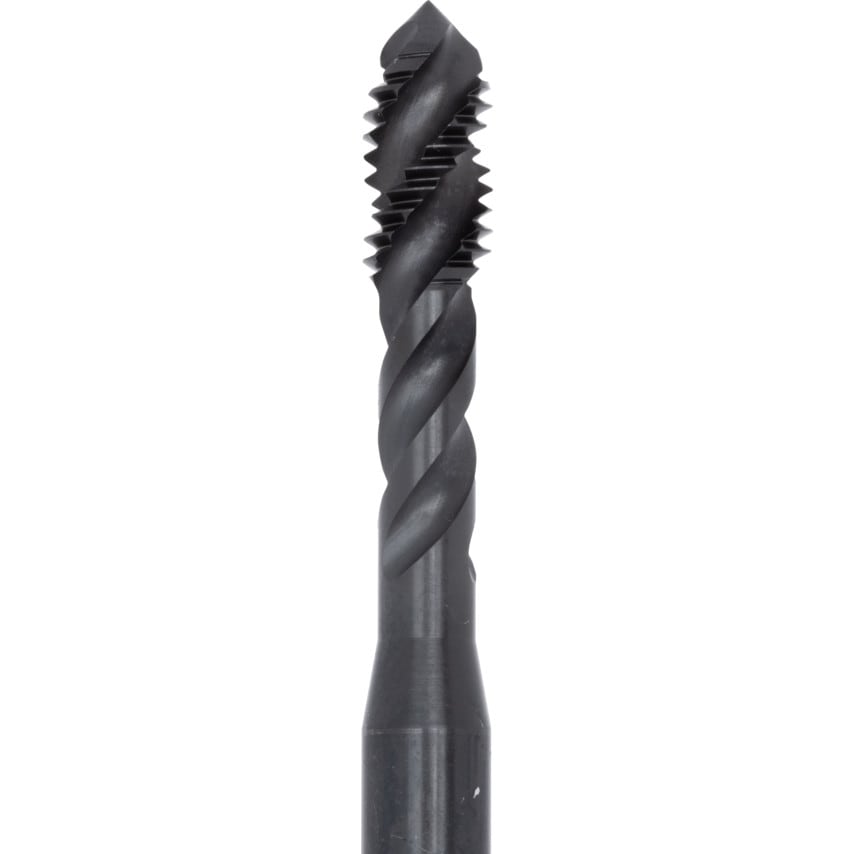

Spiral flute (for blind holes) geometries
Typical Applications
Steel
Stainless Steel
Cast Iron
Notes
Metric: M2 - M24
Standards
ISO 529
| Thread Length | 8.0mm |
| Pitch | 0.80 |
| MFR Part No. | E003M5 |
| Square Width | 4.0mm |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Finish/Coating | Steam Tempered |
| Dimensions Standard | ISO 529 |
| Series | E003 |
| Thread Size | M5 |
| Class of Fit | 6H |
| Thread Standard | Metric Coarse |
| Material | Cobalt High Speed Steel |
| Product Type | Machine Taps |
| Number of Flutes | 3 |
| Material Grade | M35 |
| Shank Diameter | 5.0mm |
| Overall Length | 58.0mm |
| Tapping Depth | 22.0mm |
