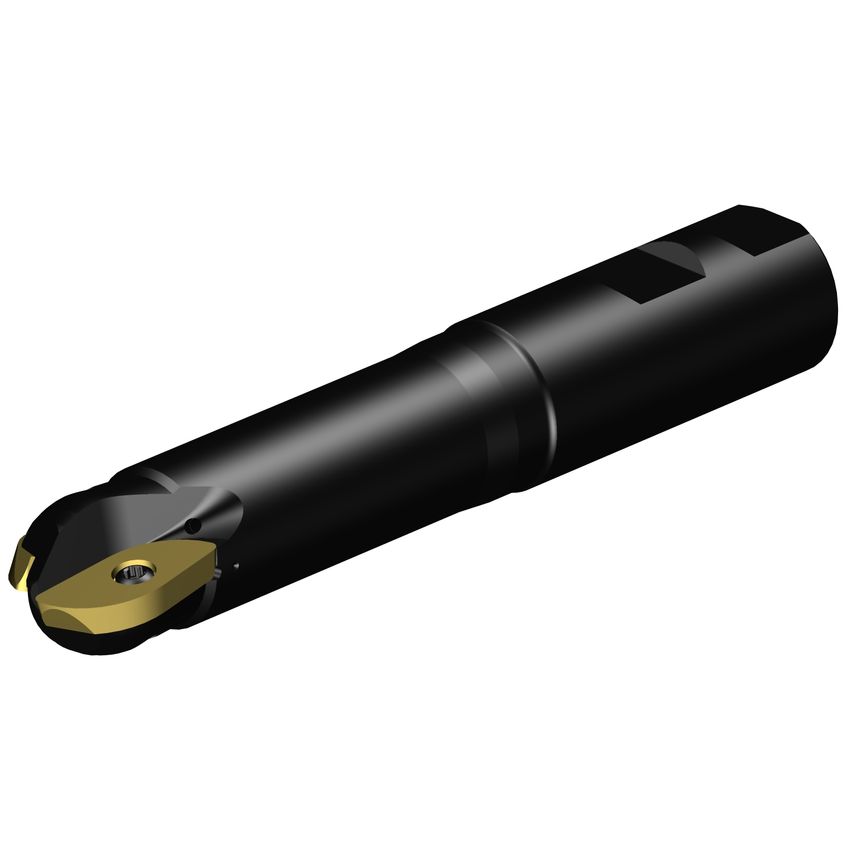

A metal remover for rough and semi-finish profilingCoroMill 216 is a robust ball nose end mill for roughing and semi-finishing of curved surfaces. The tools are easy to apply in machining centres, CNC milling machines, and copy-milling machines for die and mould, aerospace, automotive, and associated industries.Features.& Benefits- Ball nose cutter for roughing to semi-finishing- 2 cutting edges- Internal coolant

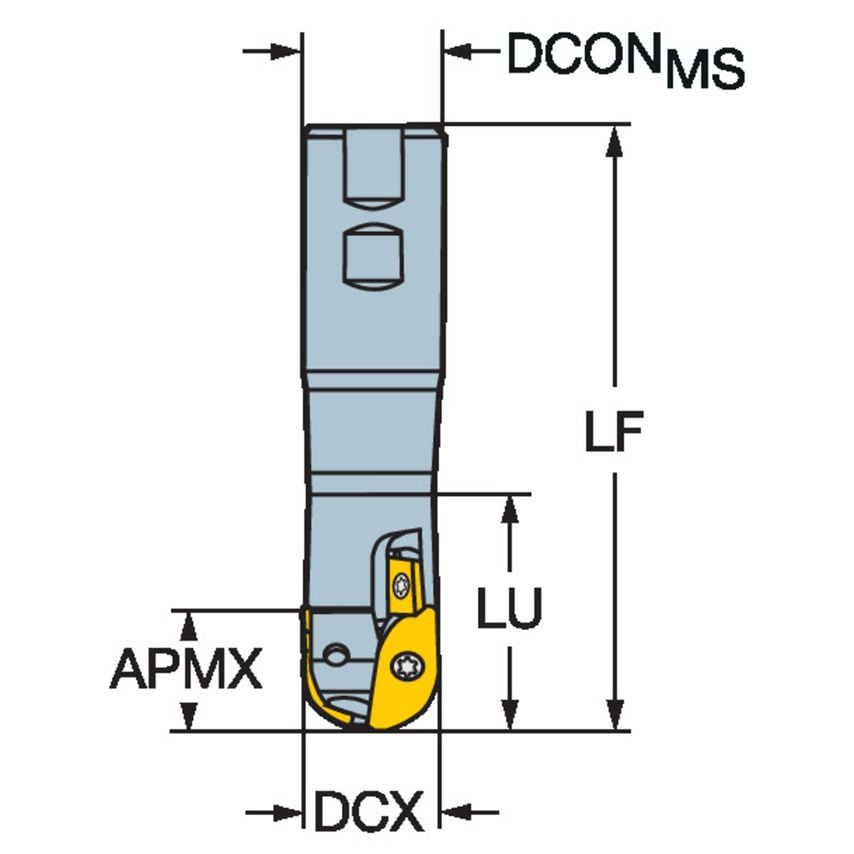

| Maximum Plunge Depth | 12.7mm |
| Cutting Diameter | 25.4mm |
| Material | Steel |
| Usable Length | 88.9mm |
| Body Diameter | 0.93in |
| Coolant Entry Style | 1 |
| CoroPak | 99.2 |
| Weight | 0.46kg |
| MFR Part No. | 5740223 |
| Body Material | Steel |
| Functional Length | 146.84mm |
| Unit Measured | Imperial |
| Rotational Speed Maximum | 24000 1/min |
| Hand Preference | Right |
| Maximum Ramping Angle | 85\u00b0 |
| Body Half Taper Angle | 0\u00b0 |
| Connection Diameter | 25.4mm |
