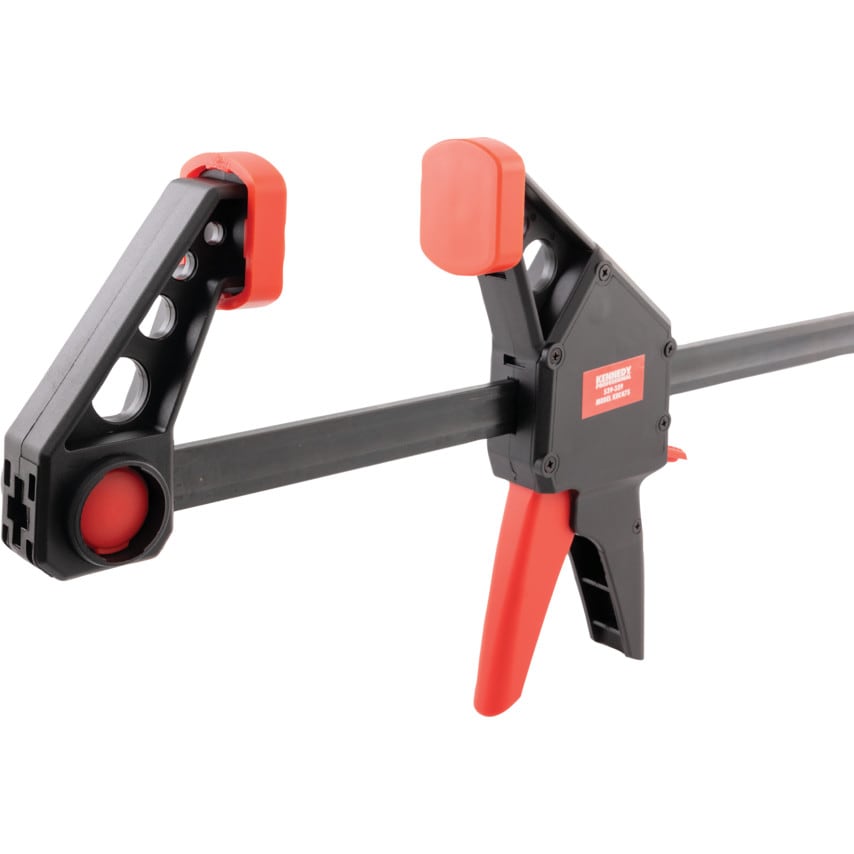

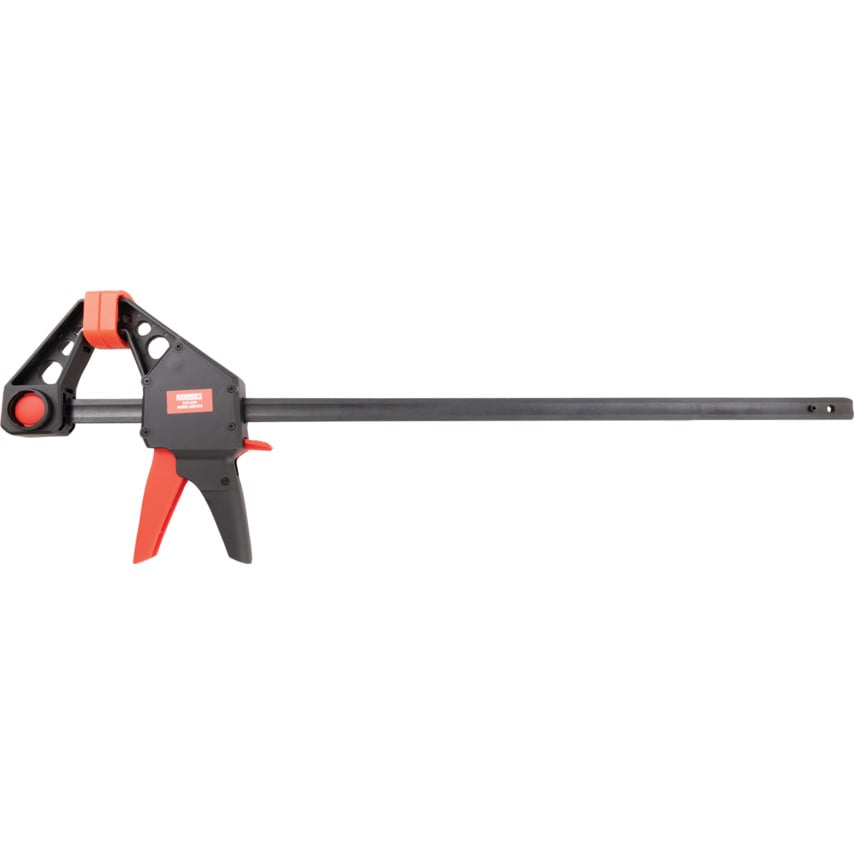

475mm One Handed Professional Bar Clamp 180kg

Kennedy Professional Dual Action Quick Clamps are designed for use one handed for speed and convenience. The pistol grip handle houses a ratchet clamping mechanism that incrementally applies clamping force when you pull the trigger. To release or reposition the clamp jaw, hold down the quick release button and slide the jaw along the bar. Can be used as a bar clamp or as a spreader simply by turning the handle around. Features and Benefits Quick release buttons for both jaws for speedy positioning on the bar Can be turned around to act as a spreader for versatility of use Non-slip clamp faces effectively hold the workpiece without marking or accidental slipping Available in a range of specifications to suit your specific needs Comprised of a steel bar, nylon jaws, a resin handle and a plastic non-slip jaw pad for maximum durability and suitability of material for each component Pistol grip handle with ratchet clamping mechanism makes for easy clamping with minimal user effort Typical Applications Carpentry Construction Workshops

Jaw Material	Nylon
Clamp Features	Non-slip Clamp Faces
Jaw Pad Material	Plastic
Handle Type	Pistol Grip
Maximum Spreader Size	730mm
Jaw Pad Movement	Reversible
Clamping Force	180kg
Bar Material	Steel
Throat Depth	90mm
Length	475mm
Handle Material	Resin
Type	Quick Clamp
Capacity	180kg
Opening Capacity	475mm
Minimum Spreader Size	190mm
Overall Length	710mm
Spreader Range	190 to 730mm
