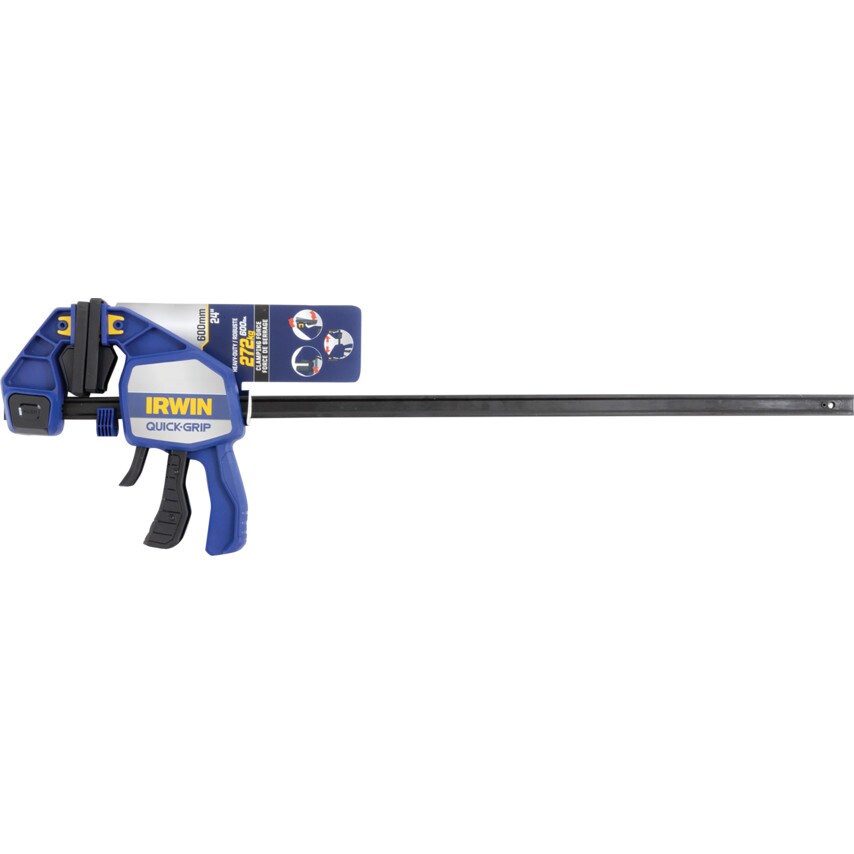

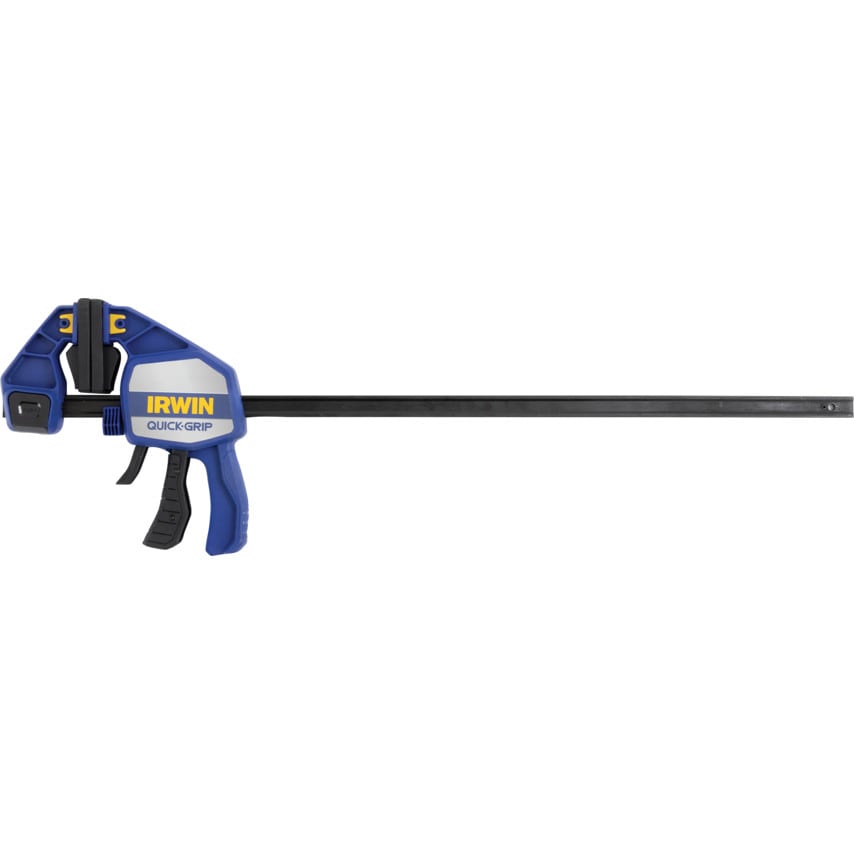

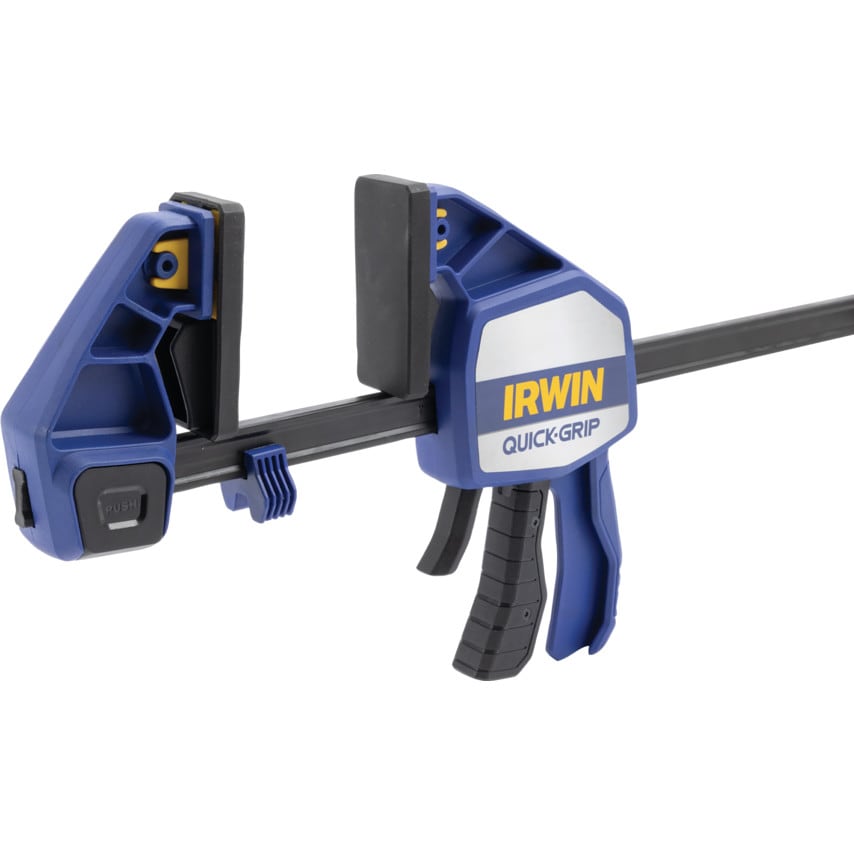

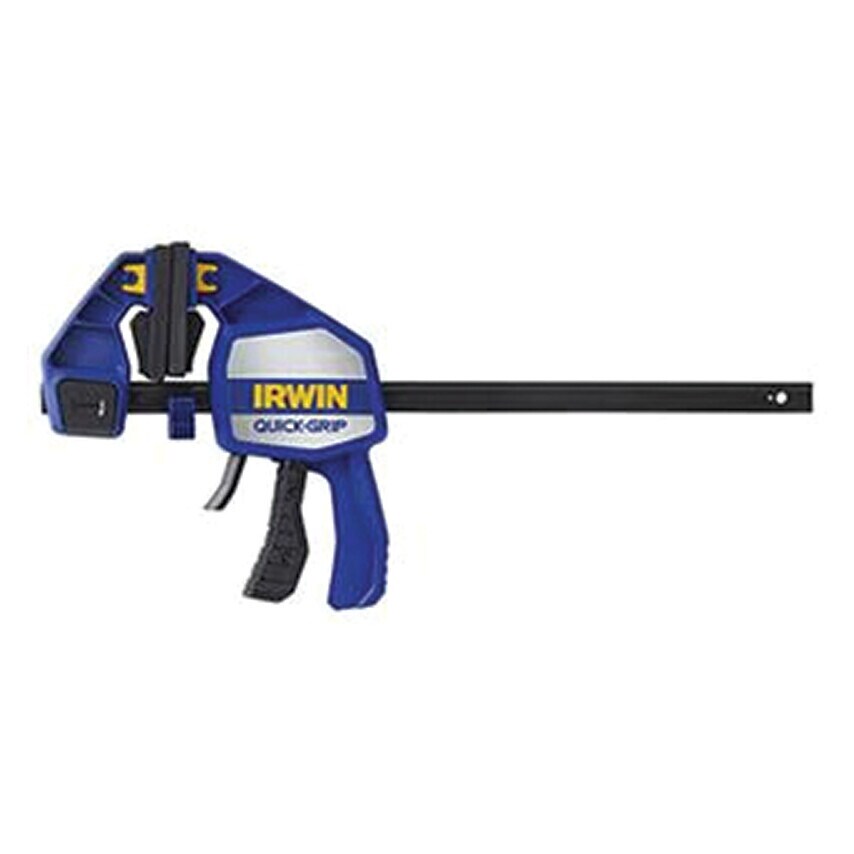

Able to evenly distribute up to 272kg, these QUICK-GRIP heavy duty clamps from IRWIN are the ideal clamp for regular, hard usage. Available in a variety of sizes, the one handed operation makes the products unique and simple to use.
Features and Benefits
Quick-Change button allows for the easy removal of clamping jaws for you to convert your tool into a spreader or to apply an accessory
Non-marring pads are full faced and ensure an even distribution ogf force to protect your work-piece - these are fully removable also
Quick release trigger allows for one handed operation of the clamp for minimal effort on the part of the user
Carbon steel manufactured I-Beam provides additional pressure making for a durable product
The adjustable foot allows the clamp to sit upright on a work surface to clamp at any angle
Typical Applications
Installation
Glue-up
Demolition
Construction
Workshopping
| Bar Material | High-Tech Reinforced Resin |
| Jaw Pad Material | TPE |
| Clamp Features | Lockable Swivel Jaws | Quick-Change Screw |
| Handle Type | Pistol Grip |
| Overall Length | 600mm |
| Jaw Pad Movement | Reversible |
| Spreader Range | 216 to 870mm |
| Opening Capacity | 600mm |
| Maximum Spreader Size | 870mm |
| Clamping Force | 272kg |
| Type | Quick Clamp |
| Throat Depth | 96mm |
| Handle Material | Nylon | Resin |
| Jaw Material | Nylon | Resin |
| MFR Part No. | 10505945 |
| Minimum Spreader Size | 216mm |
