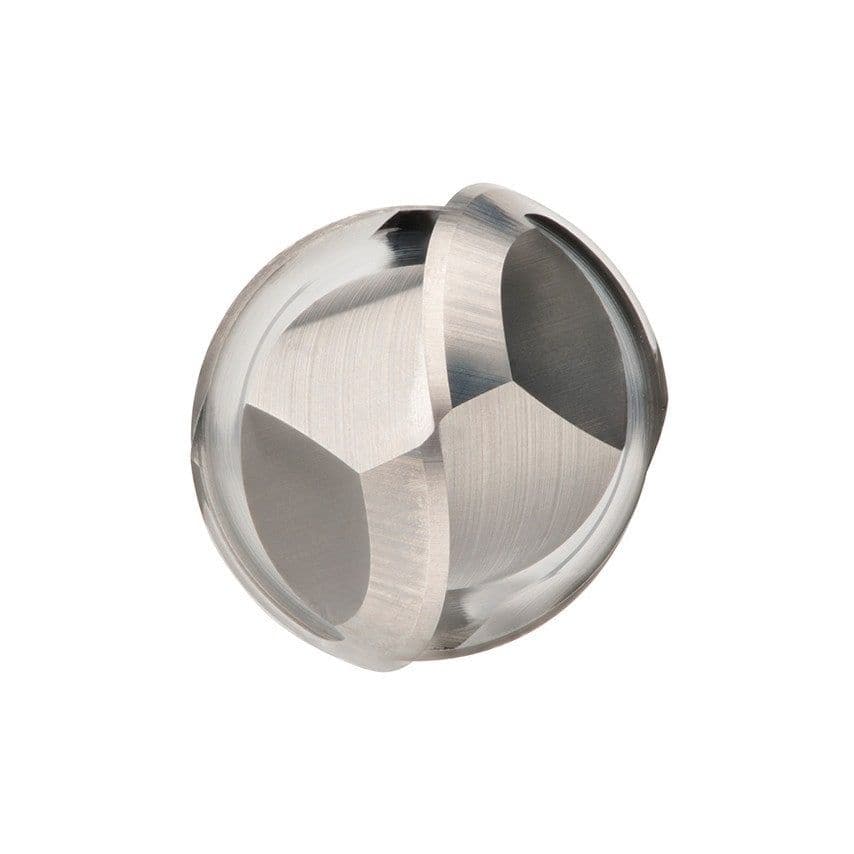

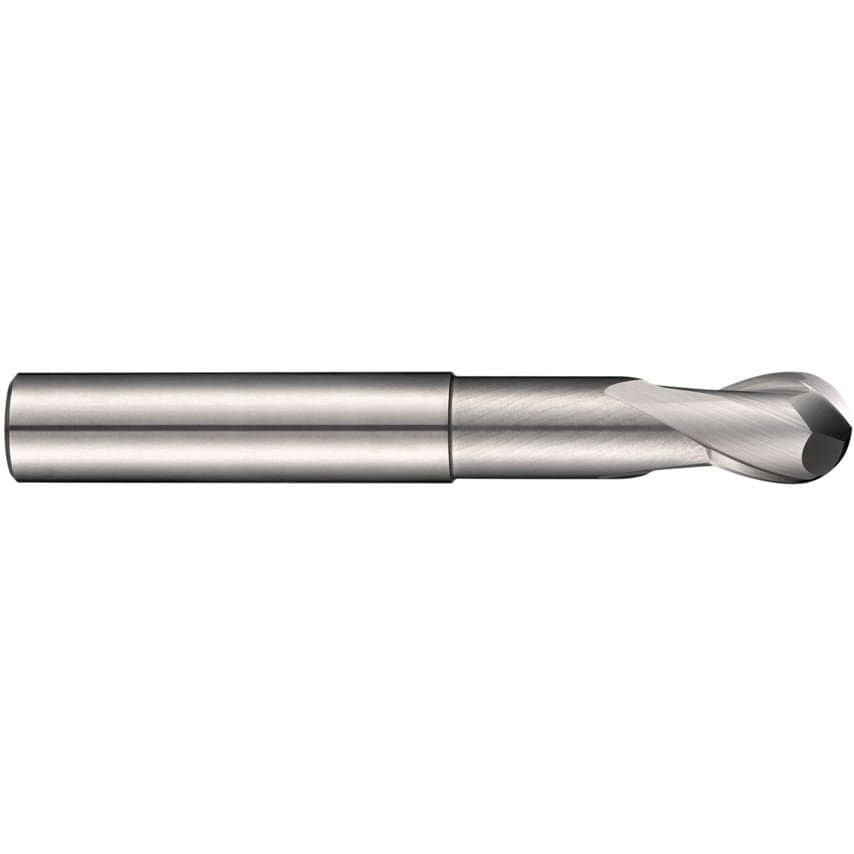

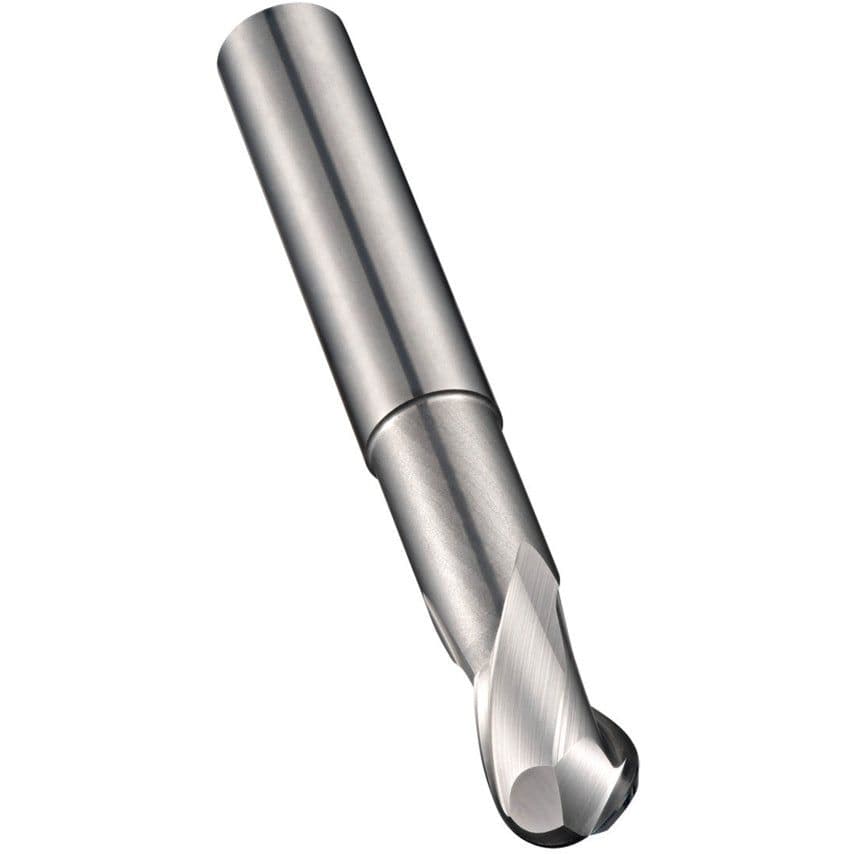

Extra short series ball-nose end mill with 2 flutes
| Shank | Cylindrical shank DIN 6535 HA |
| Coolant Delivery | External |
| Shank Diameter | 16mm |
| Length Type | Short |
| Number of Flutes | 2 |
| Corner Radius | 8mm |
| Plunge Type | Centre Cutting |
| Finish | Bright |
| Flute Type | Helical |
| Unit of Measurement | Metric |
| End Mill Type | Slot Drill |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H9 |
| Application | Non-ferrous Metals |
| Cutter Diameter | 16mm |
| Flute Length | 18mm |
| Overall Length | 90mm |
| Cutter Style | Ball Nose |
| Helix Angle | 30\u00b0 |
| Material | HM |
| Series | S629 |
| Length of Cut | Extra short |
| MFR Part No. | S62916.0 |
| Standards | DORMER |
| Shank Type | Plain Round |
| System of Measurement | Metric |
| ISO Category | N |
| Standards Met | Dormer |
