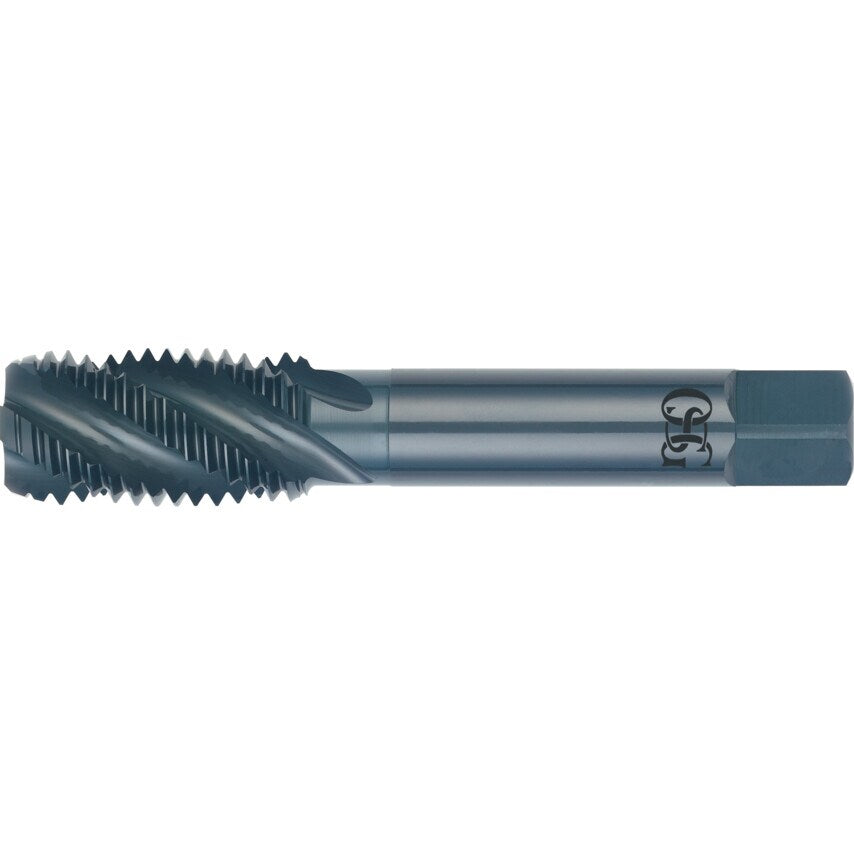

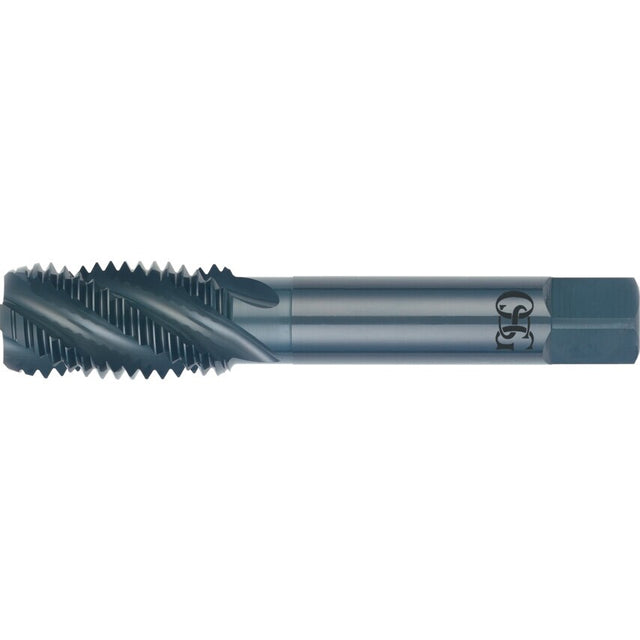

Spiral Flute - ISO Metric.
HSS-EV3. Oxidised finish. 1066QS for blind holes.
Type 1066.
Manufactured from 3% vanadium super grade high speed steel. Increased vanadium produces toughness without adding brittleness. Greater resistance to work generated heat. Prolonged cutting edge life. Manufactured to ISO 529 : 1975.
BSP and BSPF also available.
| Number of Flutes | 3 |
| Class of Fit | 6H |
| Thread Length | 30.00mm |
| Ring Colour | No Coloured Ring |
| Overall Length | 95mm |
| Shank Diameter | 11.2mm |
| Thread Size | M14 |
| Helix Angle | 40 |
| Pitch | 2.0 |
| Lead | Plug |
| Dimensions Standard | ISO 529 |
| MFR Part No. | 22201914 |
| Product Type | Taps |
| Series | 1066-SFT |
| Material | HSS |
| Square Width | 9.0mm |
| Finish/Coating | Steam Tempered |
| Coolant Delivery | External |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| Tap Type | Spiral Flute |
