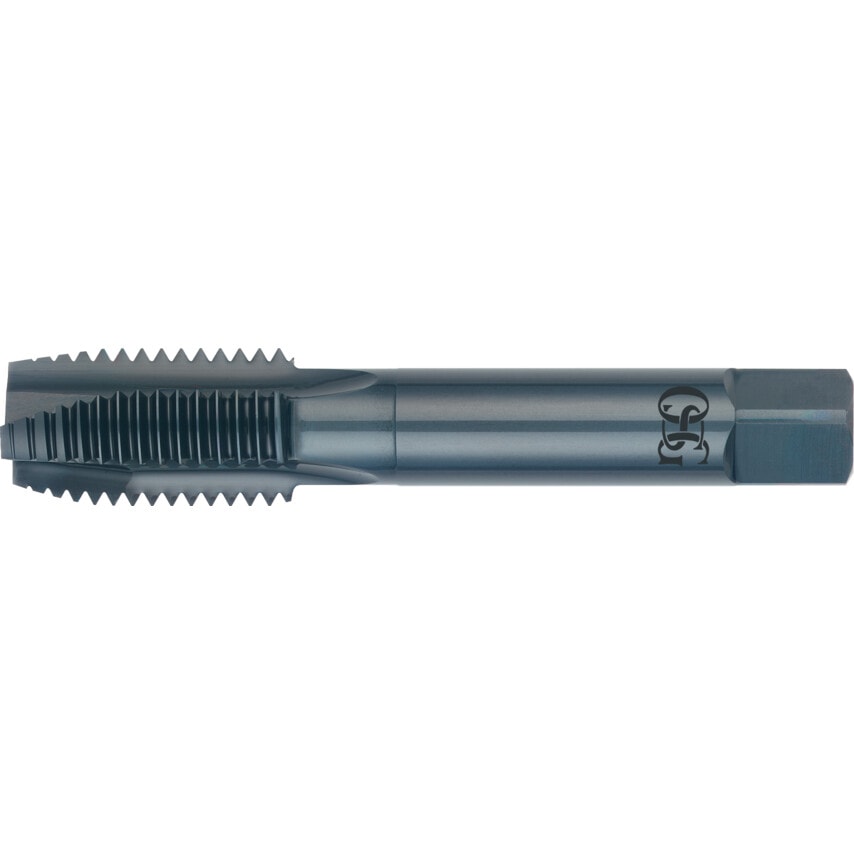

Type 1066. Manufactured from 3% vanadium super grade high speed steel with increased vanadium producing toughness without adding brittleness. Greater resistance to work generated heat with a prolonged cutting edge life.
Features and Benefits
Designed for through holes
Increased vanadium produces toughness without adding brittleness
Oxidised finish for greater resistance to work generated heat
Prolonged cutting edge life
Manufactured from 3% vanadium super grade high speed steel
Standards
Manufactured to ISO 529 : 1975.
BSP and BSPF also available.
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Class of Fit | 2B |
| Thread Size | 3/8in |
| Shank Diameter | 10.0mm |
| Pitch | 16.0 |
| Coolant Delivery | External |
| Series | 1066-POT |
| MFR Part No. | 22104794 |
| Tap Type | Spiral Point |
| Product Type | Tap |
| Lead | Plug |
| Teeth per Inch | 16 |
| Finish/Coating | Steam Tempered |
| Thread Standard | UNC |
| Dimensions Standard | ISO 529 |
| Ring Colour | No Coloured Ring |
| Material | HSS |
| Thread Length | 24.00mm |
| Square Width | 8.0mm |
| Overall Length | 80mm |
