£2.44

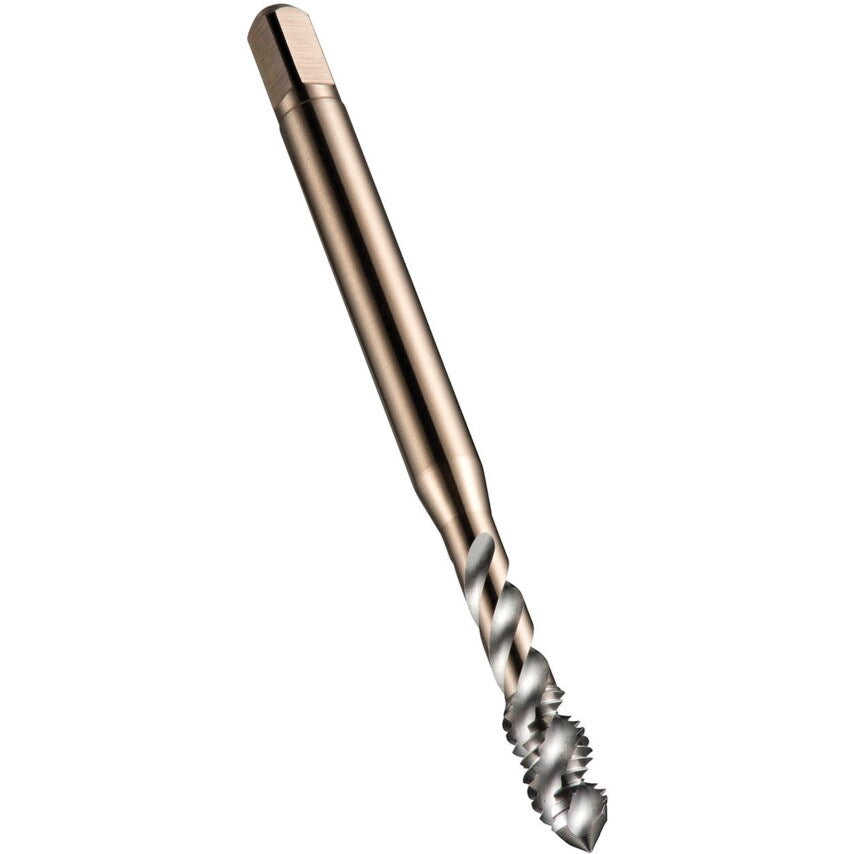

Series E002 HSS-E Spiral Flute Taps - Metric
Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF & (G)BSP
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.
E002 Bright Metric: M2 - M24
Titanium Nitride Suitable for: Steel, Stainless,
Cast Iron, Titanium, Nickel, Copper and Aluminium
Product Type | Taps |
Thread Length | 29.0mm |
Overall Length | 112.0mm |
Shank Diameter | 14.0mm |
Number of Flutes | 4 |
Square Width | 11.2mm |
Tap Type | Spiral Flute |
Thread Size | M20 |
Thread Direction | Right Hand |
Finish/Coating | Bright |
Ring Colour | No Coloured Ring |
Material Grade | M35 |
Material | Cobalt High Speed Steel |
Series | E002 |
Thread Standard | Metric Coarse |
Class of Fit | 6H |
Dimensions Standard | ISO 529 |
MFR Part No. | E002M20 |
Pitch | 2.50 |
