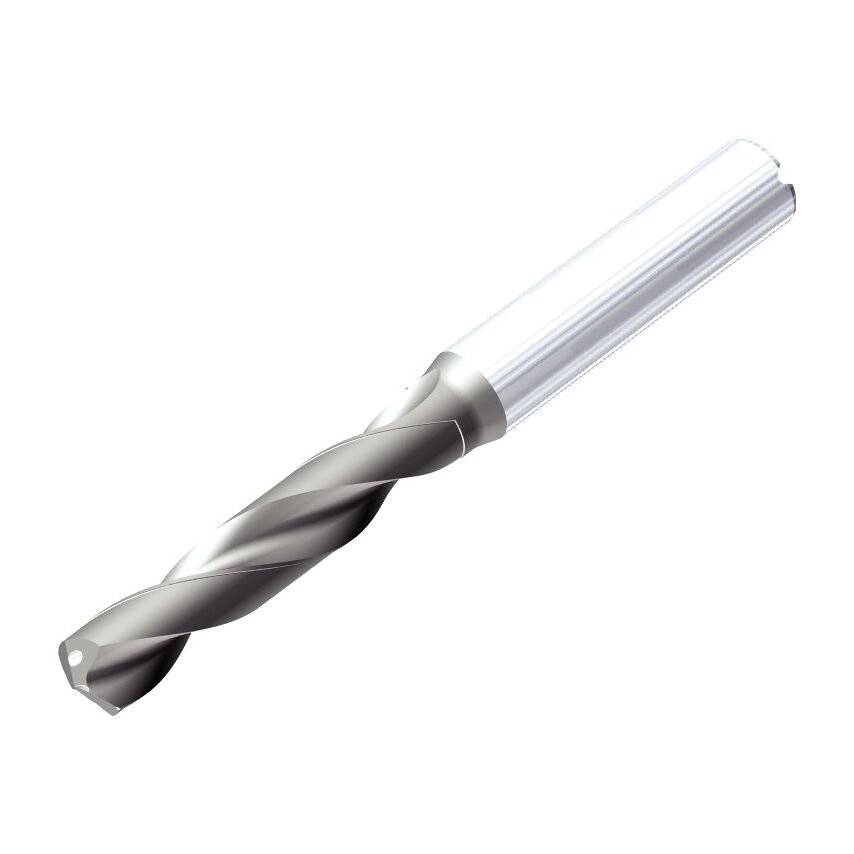

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills

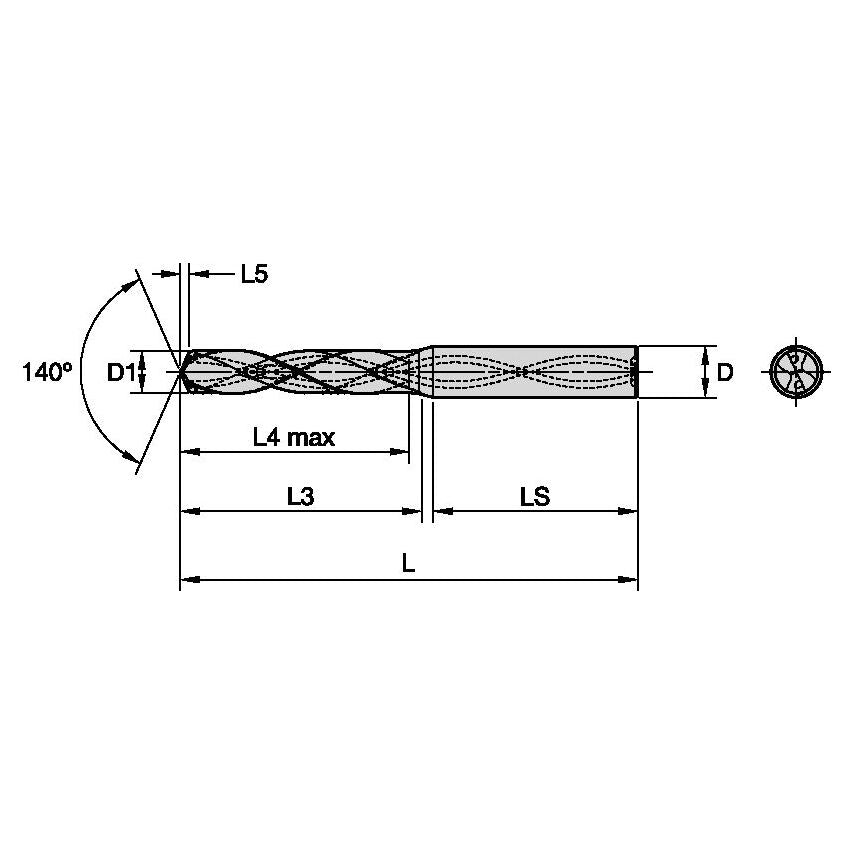

| Unit Measured | Metric |
| Drill Depth | 40mm | 40.0000mm |
| Functional Length | 99.8600mm |
| Helix Angle | 27.564 |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Hand Preference | Right |
| Shank Length | 45.0000mm |
| MFR Part No. | 6359038 |
| Primary Material | Hardened Materials |
| Coolant Diameter | 1.7600mm (0.0787in) |
| Adapter Type | Cylindrical |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | AlTiN |
| Flute Construction | Helical Flute |
| Assembly Length | 57.86mm |
| Coolant Supplied | Yes |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Point | 2.14mm |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 55mm | 55.0000mm |
| Drill Diameter | 10.8000mm |
| Number of Flutes | 2 |
| Overall Length | 102mm | 102.0000mm |
| Material | Carbide |
