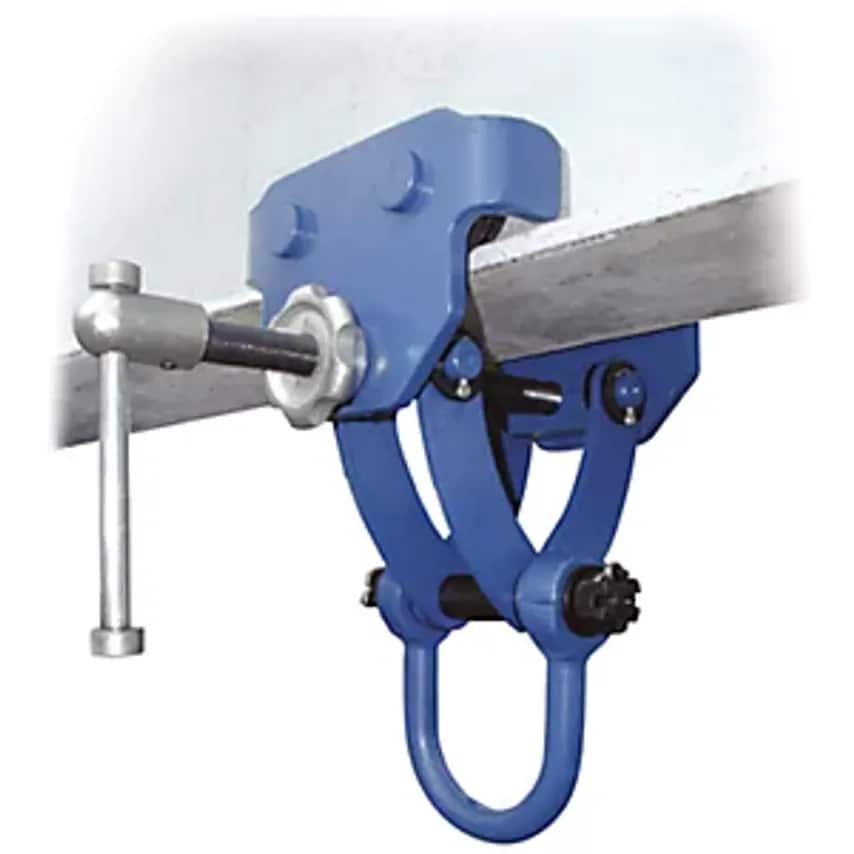

Rolling Girder Clamp, Clamping Range 100 - 305mm, Max. Load 5000 Kg

Rolling girder clamp, clamping range 100 - 305 mm, max. load 5000 kg. Supplied = assembled. Max. load = 5000 kg. Gripping range = 100 - 305 mm. Weight = 53 kg. Product type = clamps. Attachment points for holding hoists and deflection pulleys on different girders by means of flexible clamping ranges. Short set-up time for assembly and repair work. Solid steel construction and zinc plated spindle. The beam clamp with a roller chassis is used as an assembly aid or to allow loads to be held on ceiling beams. Simply screw the threaded spindle to the suitable beam flange width, and turn the locking lever against the side plate.

Load Capacity	5000kg
Supplied	Assembled
Product Type	Clamps
Weight	53kg
Gripping Range	100 - 305mm
