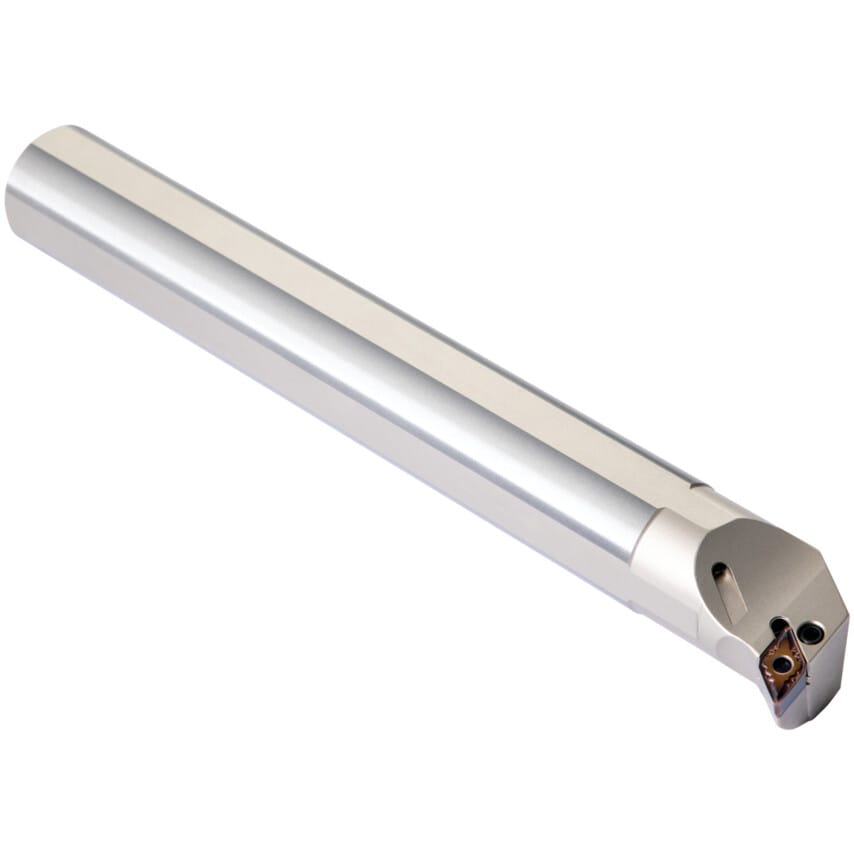

These Boring Bars are a dependable choice for precision machining tasks, offering versatility, durability, and suitability for various working conditions. Each has an inscribed circle diameter of 9.525mm, is 4.76mm thick, 25mm diameter x 200mm long for taper boring, single and multi-directional copy boring, and longitudinal boring with and without shoulder.Features and BenefitsAccommodates two common insert types (rhombus and trigon), providing flexibility for various machining tasksWith both left-hand and right-hand cutting configurations available catering to a wide range of machining requirementsThe off-set shank design enhances precision during machining operationsMade from high-quality steel to withstand machining challenges

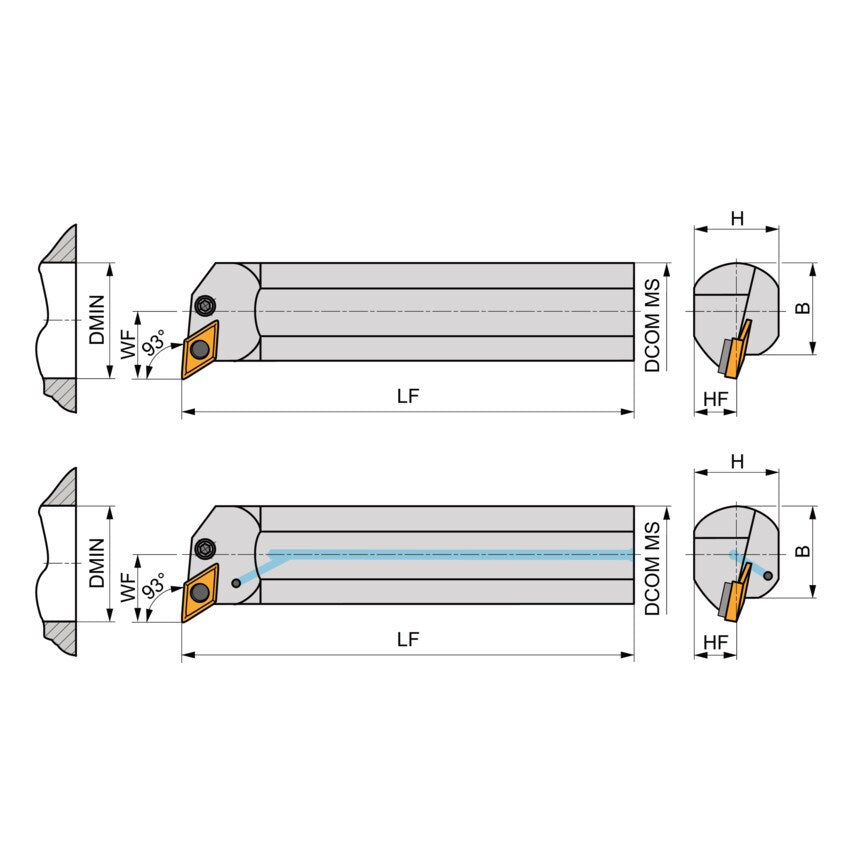

| ISO Designation | A32S-PDUNL 11 |
| Length | 200mm |
| Thickness | 4.76mm |
| Coolant Delivery | Internal |
| MFR Part No. | 8281410 |
| Inserts Included | No |
| Insert Holding Type | Top & Hole Clamp |
| Inscribed Circle Diameter | 9.53mm |
| Diameter | 25mm |
| Number of Bars In Set | 1 |
| Set Type | Individual Boring Bar |
