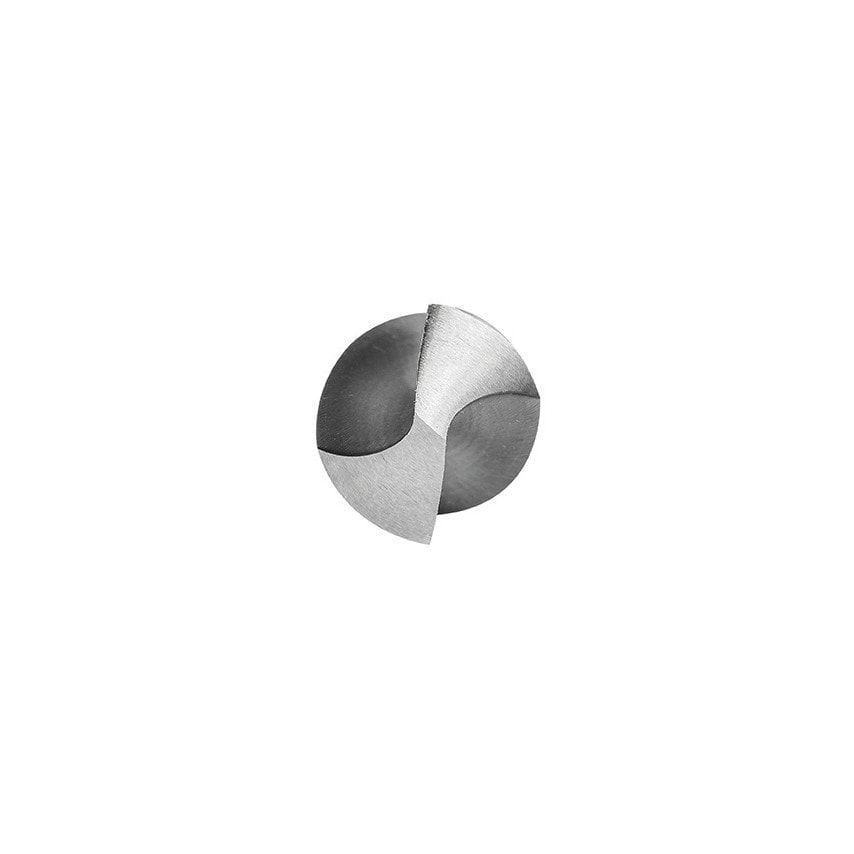

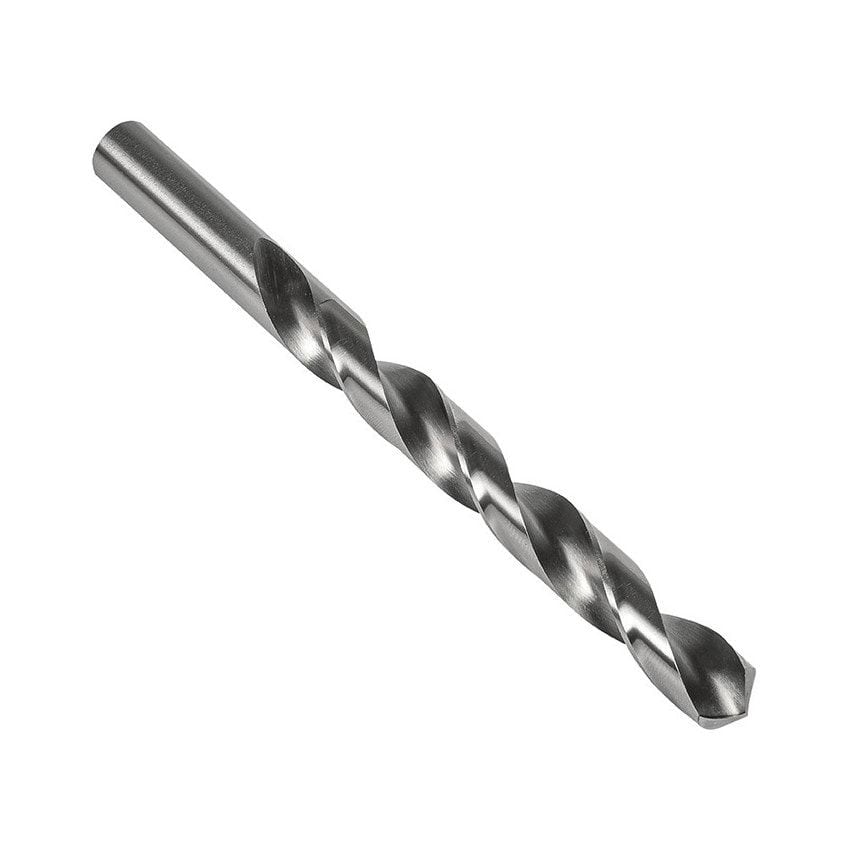

Jobber length drill with straight shank, diameter 14.5mm with an overall length of 169mm and flute length of 114mm according to DIN 338 standard with 118 point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel
| Material | HSS |
| Flute Length | 114mm |
| Unit of Measurement | Metric |
| Finish | Steam Tempered |
| Series | A100 |
| Shank Diameter Tolerance | F11 |
| Flute Type | Spiral |
| Drill Diameter | 14.5mm |
| Shank | Cylindrical shank |
| Spiral Form | Standard Spiral |
| Drill Diameter Metric | 14.5mm |
| Point Angle | 118\u00b0 |
| Web Thickness | Standard |
| Shank Type | Straight |
| Standards Met | DIN 338 |
| Cutting Direction | Right |
| Helix Type | Normal Helix |
| MFR Part No. | A10014.5 |
| Flute Construction | Ground flutes |
| Size | 14.5mm |
| Drill Diameter Tolerance | H8 |
| Coolant Delivery | External |
| Overall Length | 169mm |
| Product Type | Jobber Drills |
| Number of Flutes | 2 |
| Product Series | A100 |
| Finish/Coating | Steam Tempered |
| Point Type | Standard |
