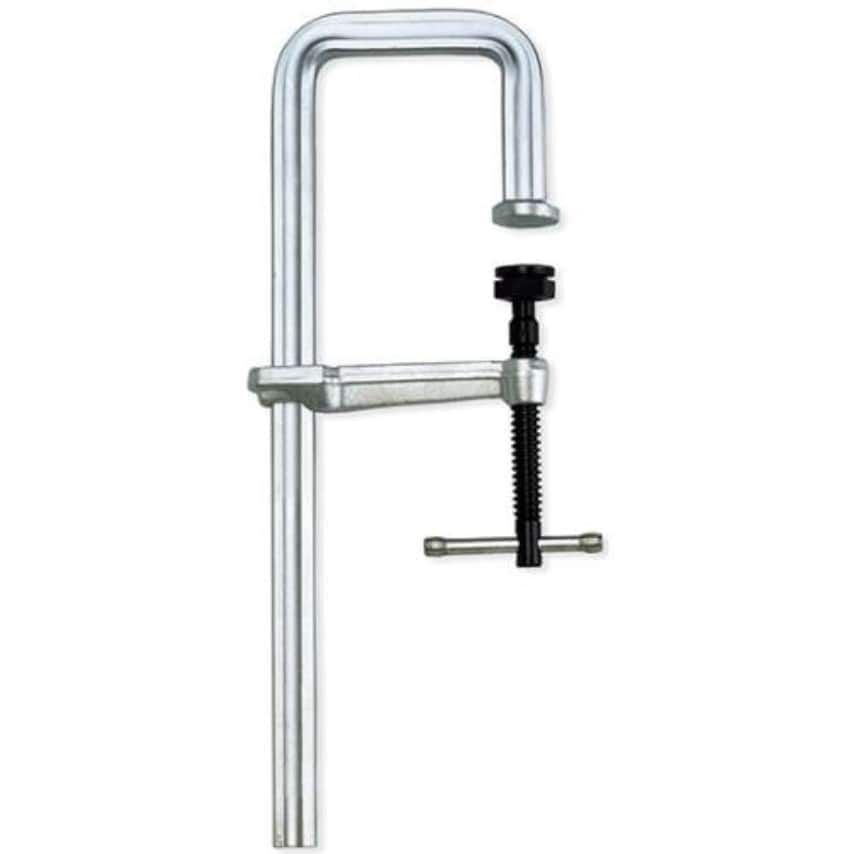

SGU30-14-10 U-shaped High-performance Welders Clamp SG U 300/140, BE101893

Clamping force up to 12,000 N at tightening torque of 40 Nm Double-sided step-over clamping, specially suited for T-profiles and double T-profiles Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35 Extremely sturdy, The U-shaped fixed arm is produced and tempered from a single piece, thus very torsion-resistant. This guarantees you maximum tensile strength and sturdiness. Special tilting pressure plate, The heat-resistant pressure plate (SGU/STBU) is replaceable and can be tilted up to 35 so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties. Forged sliding arm, The sliding arm is made from forged tempered steel, and can withstand extremely large loads. You can be sure of that. Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability. Sturdy tommy bar, The sturdy tommy bar has special rounded hand-friendly ends, as well as a hexagonal bolt. This allows powerful, controlled clamping.
