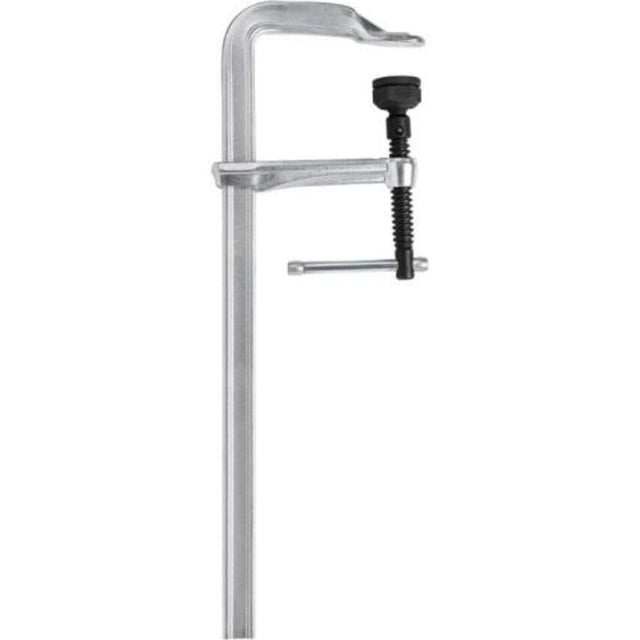

Clamping force up to 8,500 N at tightening torque of 25 Nm 20 % more clamping force per spindle rotation with optimised rail profile Maximum safety due to the better linear transfer of force of the sliding arm Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35 High stability, The optimised profile guarantees high clamping force build-up in the shortest time, while maintaining maximum stability and safety. The fixed bracket and pressure plate are manufactured in a single piece, and tempered, so are able to bear heavy loads and are resistant to torsion. Forged sliding arm, The sliding arm has a shape that allows for more efficient transfer of force. As a result of its more linear transfer of force, the U-shaped sliding arm offers maximum security with the heaviest of loads. You can rely on that. Special tilting pressure plate, The heat-resistant pressure plate is replaceable and can be tilted up to 35 so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties. Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
| Type | Clamps |
| Product Type | Fitters' Clamp |
