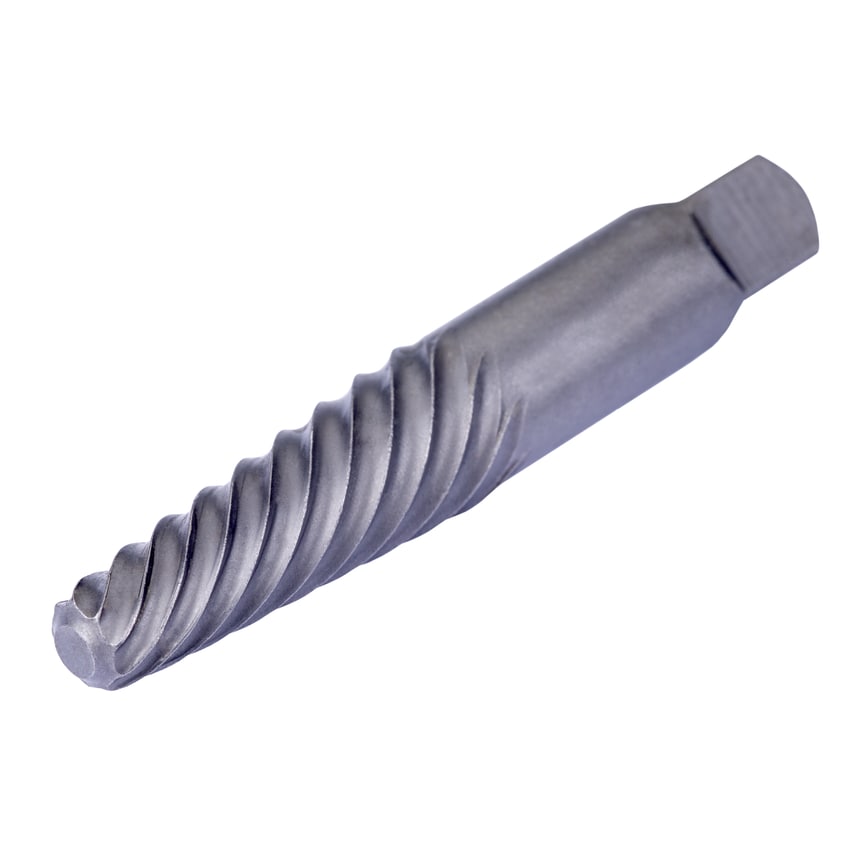

Screw Extractor
Material ID: 8430199
Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. Its necessary to drill guide hole of proper size before using the extractor.
High quality carbon steel
Able to withstand flex and high torque loads experienced during operation
Left Hand spiral flutes
Allows Anti-Clockwise rotation to extract broken screws
Square Shank
Too allow use with standard Tap Wrench
Description
Product nameM9008
Bolt sizeM42 - M45
Drill size for low or medium tensile screws - millimeters20.5 mm
Drill size for high tensile screws +75 tons/sq.inch - millimeters21.5 mm
Bolt size imperial1.3/8" - 1.3/4"
Drill size for low or medium tensile screws - inch13/16
Drill size for high tensile screws +75 tons/sq.inch - inch27/32
Cutting diameter step - millimeter18.65 mm
Cutting diameter second cutting step - millimeters (DC_2) 25.1 mm
Clamping width - millimeter (WSC) 19.8 mm
Clamping Length - millimeter (LSC) 19.4 mm
Overall length - millimeter (OAL) 114.3 mm
Net weight - grams360
| Size | M42 - M45 |
| Flute Type | Spiral |
| Type | Screw Extractor |
| MFR Part No. | M9008 |
| Product Type | Screw Extractors |
| Overall Length | 114.3mm |
| Number of Pieces | 1 |
| Drive Type | Square |
