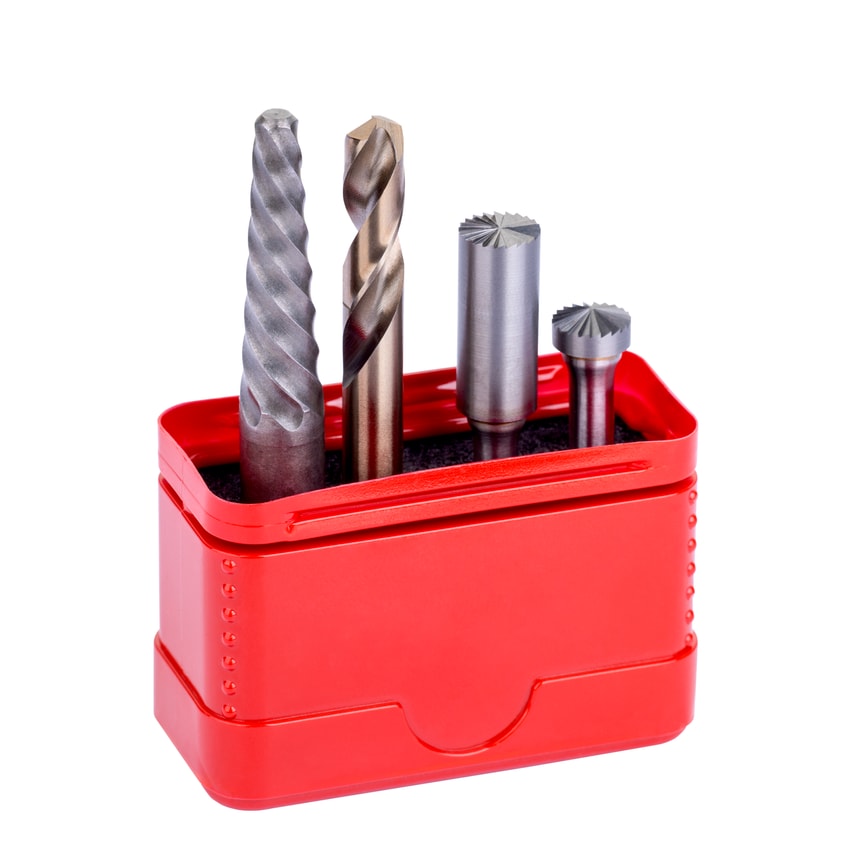

Bolt Removal Kit
Material ID: 8430225
Tools for removing broken right-handed bolts come in a set of four. First, use the P100 burr to flatten the bolt. Second, use the P101 burr to create a starting cone. Third, use the HSS-E stub drill A117 to drill a hole for the extractor. Finally, use the screw extractor in a counter-clockwise motion to remove the broken bolt without damaging the threads.
P100 Carbide Flat End Single Cut Burr
Enables the flattening of broken bolt surface
P101 Carbide centre point burr
Allows centre to be created for drilling process to follow
A117 HSSE 135 split point heavy duty stub drill
Designed for hard difficult materials and applications
M900 Screw Extractor with left hand spiral flutes
Allows Anti-Clockwise rotation to extract broken screws
Burrs, Drill and Extractor set
All tools in one set to remove broken bolts and screws
Description
Product nameM902M10-M12
Set NumberM10-M12
Styles in SetM900, P100, P101, A117
Diameters in SetP1007.8, P1017.8, A1174.2, M9003
Number of items in set4
| Product Type | Bolt Removal Kit |
| Material | Carbide | HSSE |
| MFR Part No. | M902M10-M12 |
| Number of Pieces | 4 |
| Type | Screw Extractor Set |
