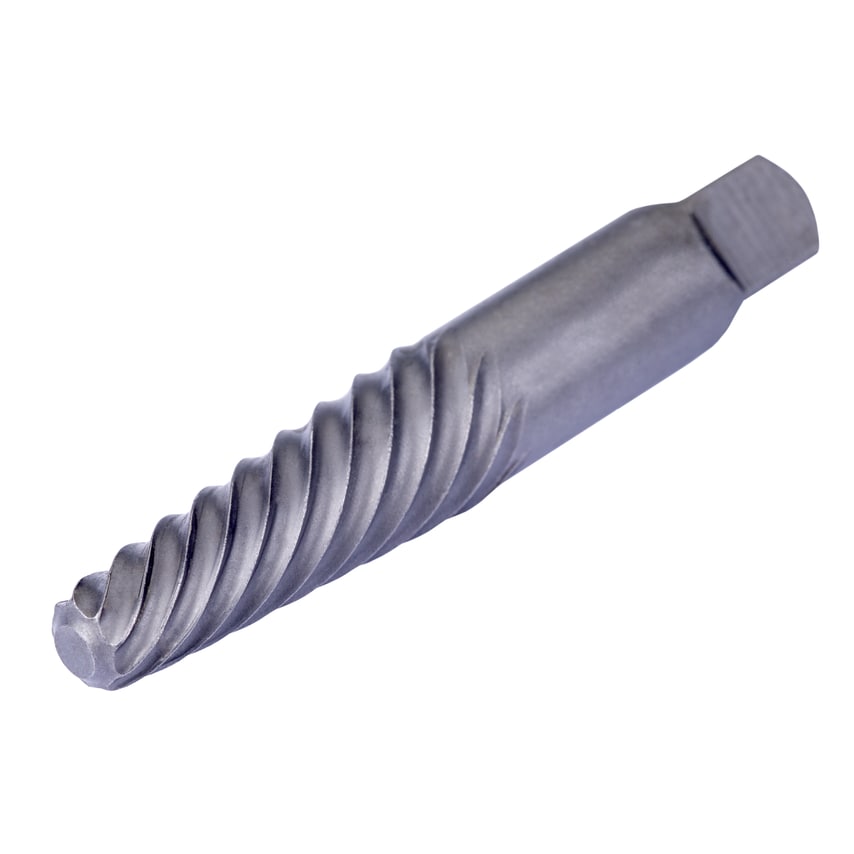

Screw Extractor
Material ID: 8430220
Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. Its necessary to drill guide hole of proper size before using the extractor.
High quality carbon steel
Able to withstand flex and high torque loads experienced during operation
Left Hand spiral flutes
Allows Anti-Clockwise rotation to extract broken screws
Square Shank
Too allow use with standard Tap Wrench
Description
Product nameM9009
Bolt sizeM45 - M50
Drill size for low or medium tensile screws - millimeters27 mm
Drill size for high tensile screws +75 tons/sq.inch - millimeters28 mm
Bolt size imperial1.3/4 - 2.1/8
Drill size for low or medium tensile screws - inch1.1/16
Drill size for high tensile screws +75 tons/sq.inch - inch1.3/32
Cutting diameter step - millimeter24.61 mm
Cutting diameter second cutting step - millimeters (DC_2) 32.3 mm
Clamping width - millimeter (WSC) 24.6 mm
Clamping Length - millimeter (LSC) 22.6 mm
Overall length - millimeter (OAL) 121.3 mm
Net weight - grams640
| Drive Type | Square |
| Product Type | Screw Extractors |
| Number of Pieces | 1 |
| Size | M45 - M50 |
| Flute Type | Spiral |
| Type | Screw Extractor |
| MFR Part No. | M9009 |
| Overall Length | 121.3mm |
