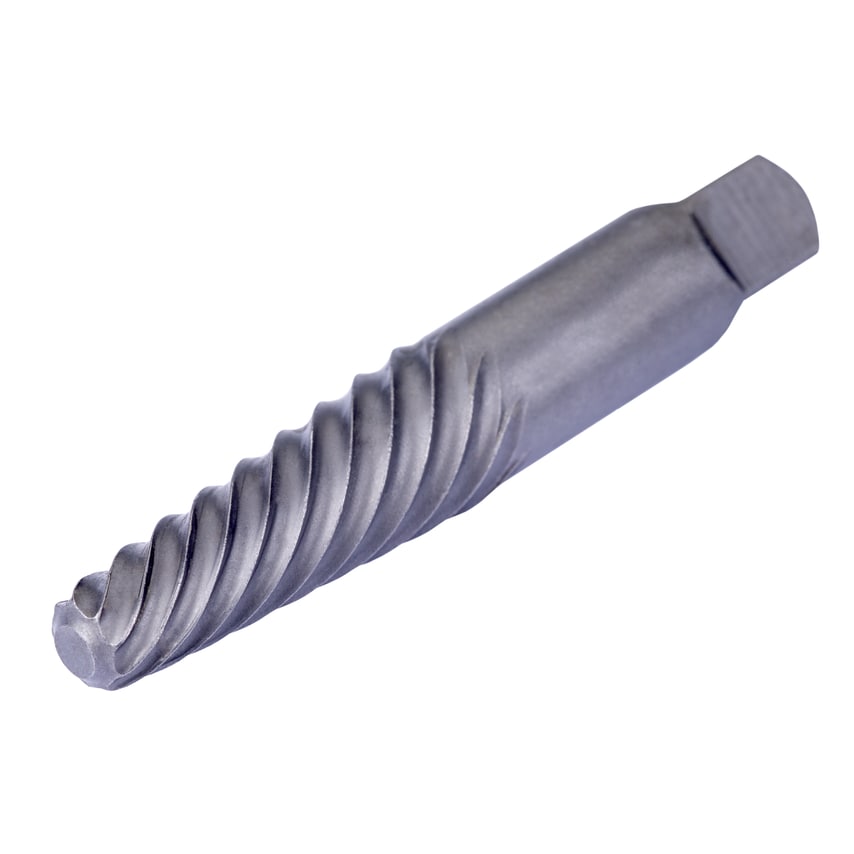

Screw Extractor
Material ID: 8430192
Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. Its necessary to drill guide hole of proper size before using the extractor.
High quality carbon steel
Able to withstand flex and high torque loads experienced during operation
Left Hand spiral flutes
Allows Anti-Clockwise rotation to extract broken screws
Square Shank
Too allow use with standard Tap Wrench
Description
Product nameM9001
Bolt sizeM5 - M6
Drill size for low or medium tensile screws - millimeters2 mm
Drill size for high tensile screws +75 tons/sq.inch - millimeters2 mm
Bolt size imperial3/16" -1/4"
Drill size for low or medium tensile screws - inch5/64
Drill size for high tensile screws +75 tons/sq.inch - inch5/64
Cutting diameter step - millimeter1.37 mm
Cutting diameter second cutting step - millimeters (DC_2) 3.2 mm
Clamping width - millimeter (WSC) 2.6 mm
Clamping Length - millimeter (LSC) 5.1 mm
Overall length - millimeter (OAL) 51.1 mm
Net weight - grams3.04
| Drive Type | Square |
| MFR Part No. | M9001 |
| Size | M5 - M6 |
| Overall Length | 51.1mm |
| Product Type | Screw Extractors |
| Flute Type | Spiral |
| Number of Pieces | 1 |
| Colour | Black |
| Type | Screw Extractor |
