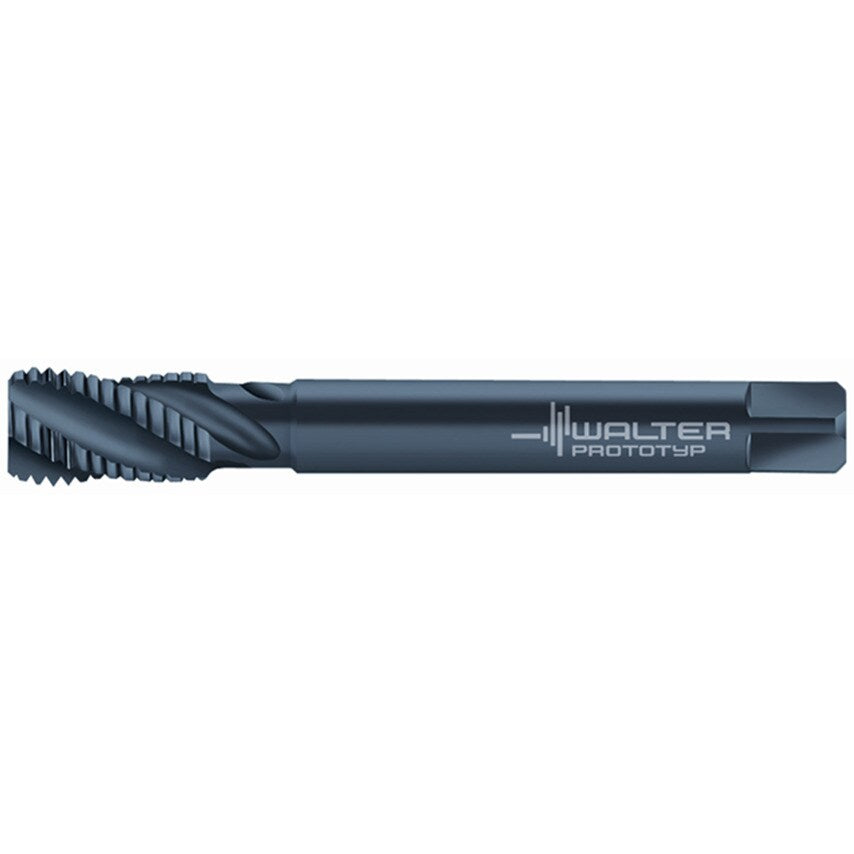

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD G/NORMAL DIN 5156 right hand flute 40 Suitable for blind hole VAP G 1/8-28 P=28
| Cutting Edge Length | 12mm |
| Functional Length | 90mm |
| Tool Designation | M24563-G1/8 |
| MFR Part No. | 6150049 |
| Usable Length | 67mm |
| Finish/Coating | VAP |
| Clamping Width | 5.5mm |
| Number of Grooves | 3 |
| Threads Per Inch | 28 |
| Driving Square Length | 8mm |
| Thread Size | G 1/8-28 |
| Connection Diameter | 7mm |
| Material | HSSE |
