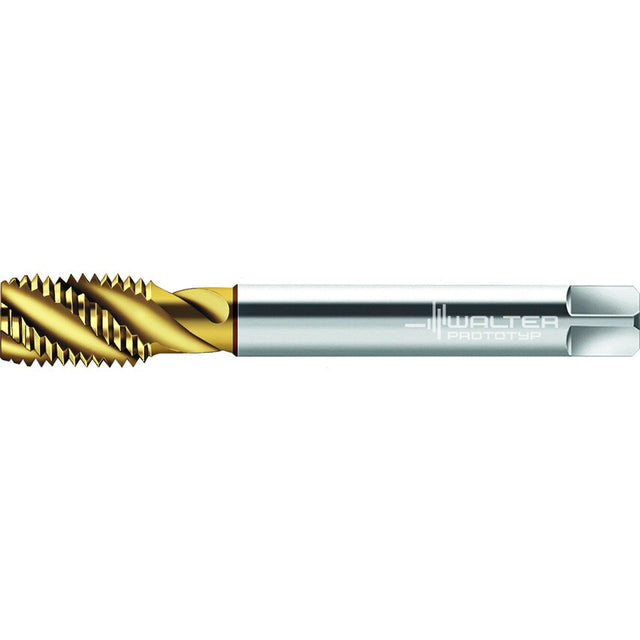

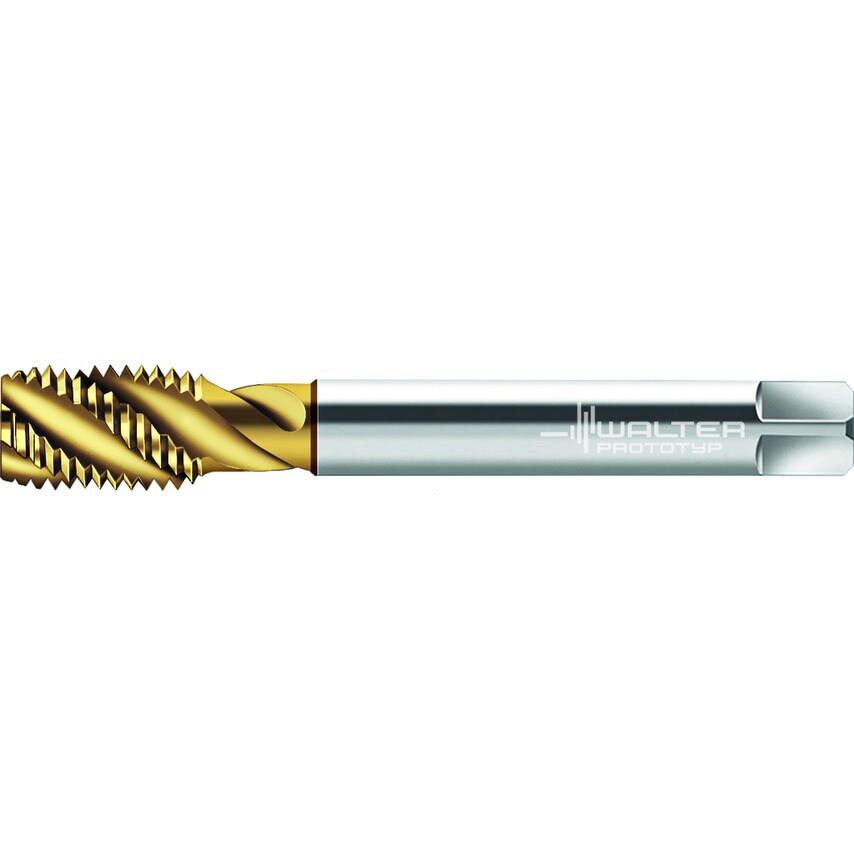

HSS-E machine taps Paradur Xpert P C = 2-3xTP (semi-bottom chamfer) 3xD M/6H DIN 376 right hand flute 45 Suitable for blind hole TIN M 14 P=0.0787in
| Usable Length | 81mm |
| MFR Part No. | 6258246 |
| Series | Paradur\u00ae X\u00b7pert P |
| Thread Standard | Metric |
| Tap Type | Spiral Flute |
| Driving Square Length | 12mm |
| Tool Designation | P2056905-M14 |
| ISO Designation | P2056905-M14 |
| Clamping Width | 9mm |
| ISO Category | O |
| Finish/Coating | TiN |
| Thread Size | M14 |
| Cutting Edge Length | 20mm |
| Dimensions Standard | DIN 376 |
| Functional Length | 110mm |
| Material | HSSE |
| Thread Pitch | 2mm |
| Connection Diameter | 11mm |
| Pitch | 2mm |
| Number of Grooves | 3 |
