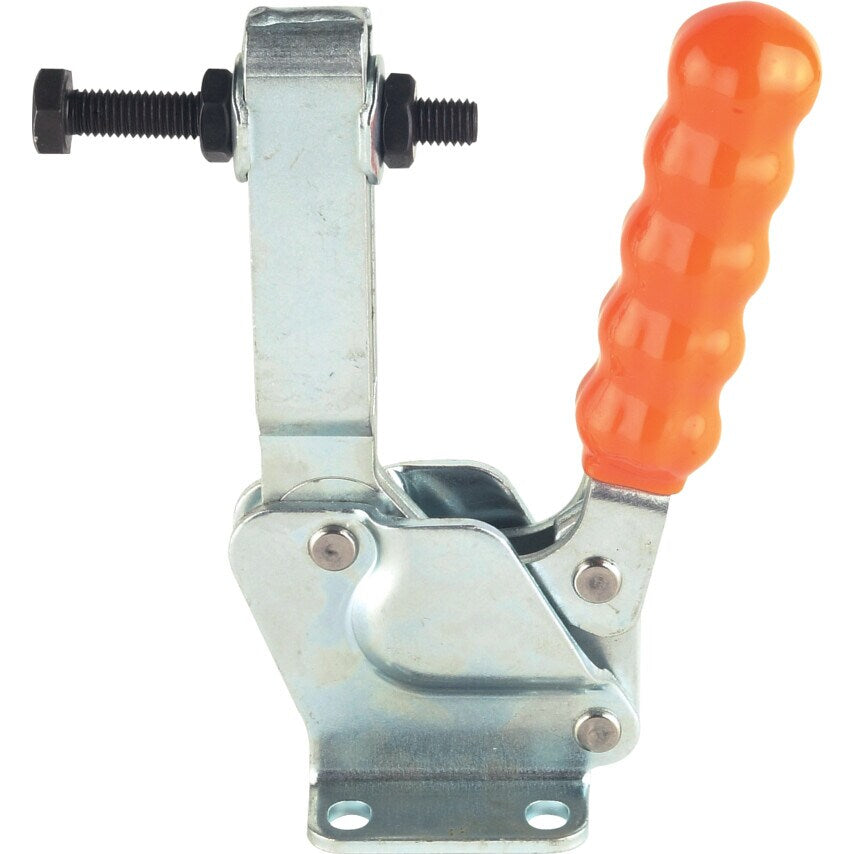

Features: Comfortable, cushioned PVC orange handle grips.
Specification: The main components are of zinc plated and passivated steel. Rivets are of stainless steel, which burnishes and work-hardens with use, the rivets of the larger clamps rotating in hardened bushes or directly in the close-toleranced holes of hardened parts.
Model H700 features a heavy duty cast steel base with centre hole for optional 'Tee' bolt mounting.
| Supplied With | FW05/09 Flanged Washers | MB0520 Setscrew & Nuts |
| Nominal Holding Force | 50daN |
| Handle Movement | 65\u00b0 |
| Product Type | Horizontal Toggle Clamp |
| MFR Part No. | H50/2B |
| Height | 22mm |
| Clamp Type | Flanged |
| Style | Flanged Base Adjustable Arm |
| Type | Manual Clamp |
| Weight | 0.036kg |
| Width | 24mm |
| Length | 70mm |
