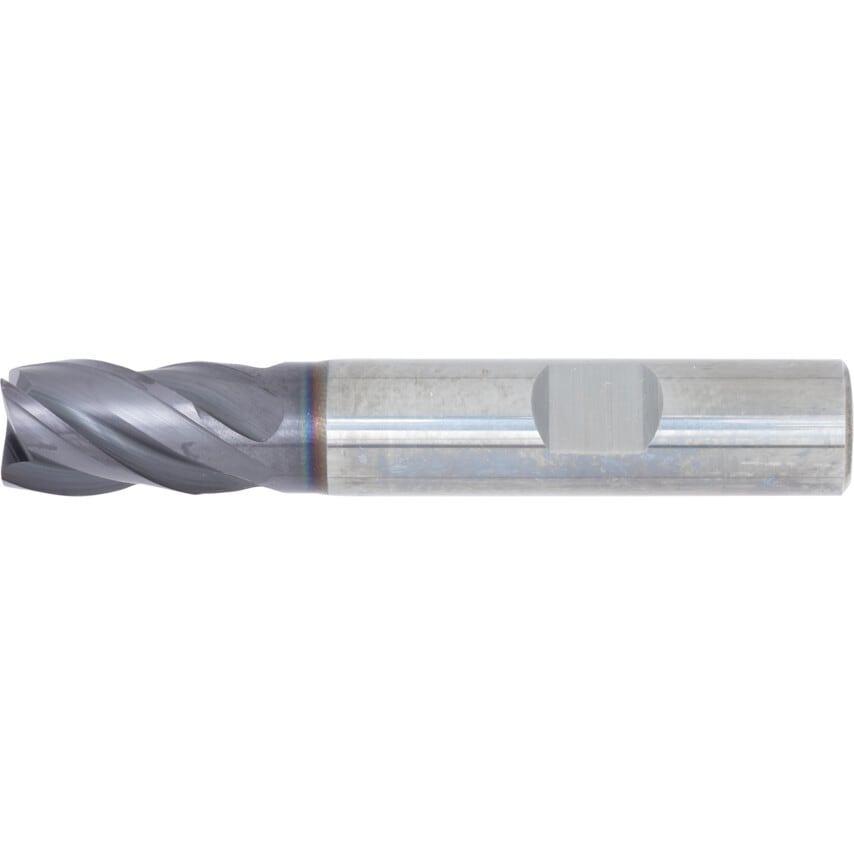

Series 5534 are FIREX coated with a strong carbide construction for up to 60% higher feed rates and longer tool life. the Weldon shank locks the tool in place for vibration free machining. Versatile in usage they are suitable for roughing and finishing creating an increased surface quality.
Features and Benefits
Hard carbide construction for increased tool strength
FIREX coating for superior heat and wear resistance

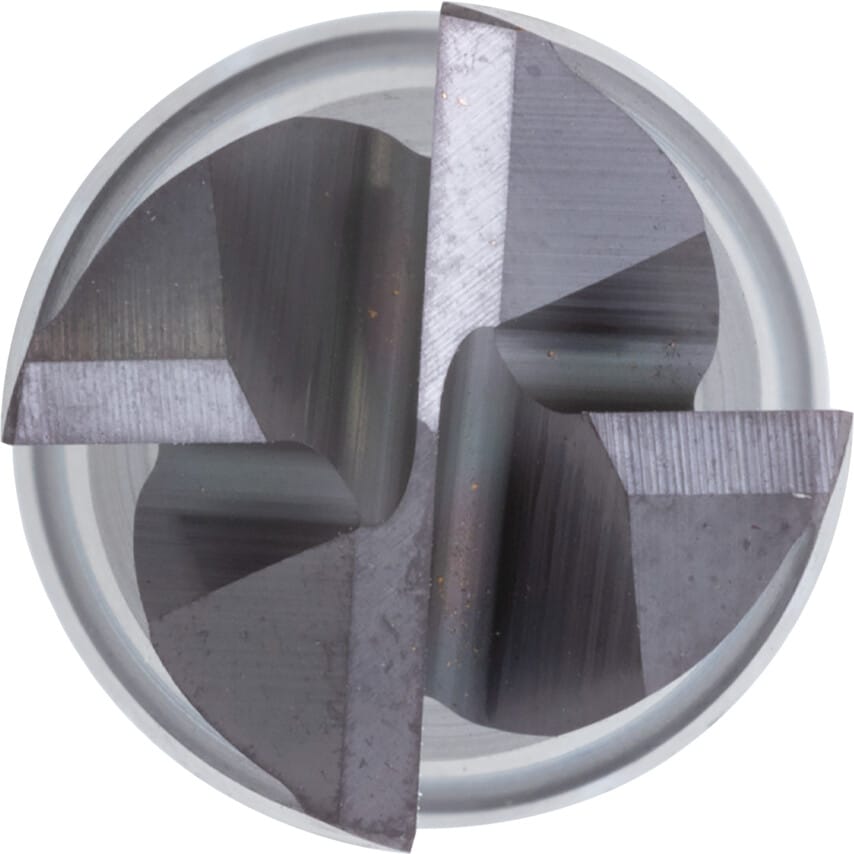

4 flute design for excellent cutting power
Weldon shank for excellent stability when machining
Typical Applications
Milling
Standards
Conforms to to DIN 6527
| MFR Part No. | 05534 012.000 |
| Material | Carbide |
| Flute Length | 16.0mm |
| Number of Flutes | 4 |
| Series | 5534 |
| Coating | FIREX |
| End Mill Type | End Mill |
| Length Type | Regular |
| Finish/Coating | FIREX\u00a9 |
| Shank Diameter | 12.0mm |
| Plunge Type | Centre Cutting |
| Cutter Diameter Tolerance | H10 |
| Standards Met | DIN 6527K |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Overall Length | 73.0mm |
| Cutter Diameter | 12.0mm |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Shank Type | Weldon Flat |
| ISO Category | P |
| Helix Angle | 35/38\u00b0 |
| Corner Radius | 0.2mm |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
