Long Series - Metric.

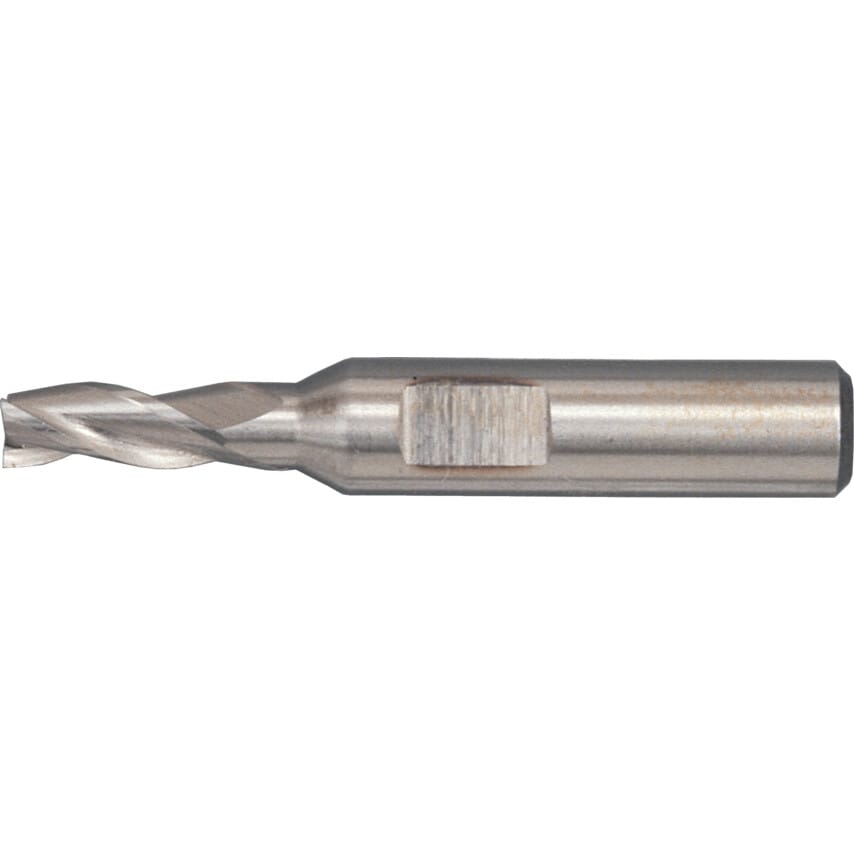

Kennedy KC3 throwaway 3* flute endmills are manufactured HSS-Co 5% making them much tougher than HSS. This means that Kennedy endmills can be used at higher speeds and feeds which in turn gives greater productivity.
Suitable for slot drilling and end milling. Cutters are held in adaptors/chucks by the action of a set screw which locates on the shank flat giving quick and easy cutter change.
*Except: 1mm cutters, 2mm and 1/16" ball nose cutters all of which have two flutes.
Metric Tolerances:
Diameter: Over 1.00 ~ up to 3.00. Tolerance: +0.013, -0.033.
Diameter: Over 3.00 ~ up to 6.00. Tolerance: +0.020, -0.020.
Kennedy KC3 endmills are available uncoated, TiN coated and TiCN coated.
TiN (Titanium nitride) provides a surface hardness in the region of 2300HV which offers improved wear resistance, tool life and productivity.
TiCN (Titanium Carbonitride) gives a surface hardness in the region of 3000-3500 HV, excellent wear resistance and good heat resistance. This coating is used for the same things as TiN but also for hard steels, stainless, cast iron, brass & bronze.
| Shank Type | Weldon Flat |
| Milling Application | End Milling | Slotting |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| End Mill Type | Slot Drill |
| Flute Type | Helical |
| Chuck Clearance | 12.5mm |
| Material Application | Aluminium | Aluminium Alloys | Cast Iron | Nonferrous Metals | Steels |
| Cutter Diameter | 2.5mm |
| Coolant Delivery | External |
| Milling Cutter Type | Throwaway |
| Plunge Type | Centre Cutting |
| Material Grade | M35 |
| Shank Diameter | 6.0mm |
| Finish/Coating | Uncoated |
| Overall Length | 32.0mm |
| Product Type | Throwaway Cutter |
| Flute Length | 6.5mm |
| ISO Category | P |
| Length Type | Long |
| Cutter Style | Square End |
