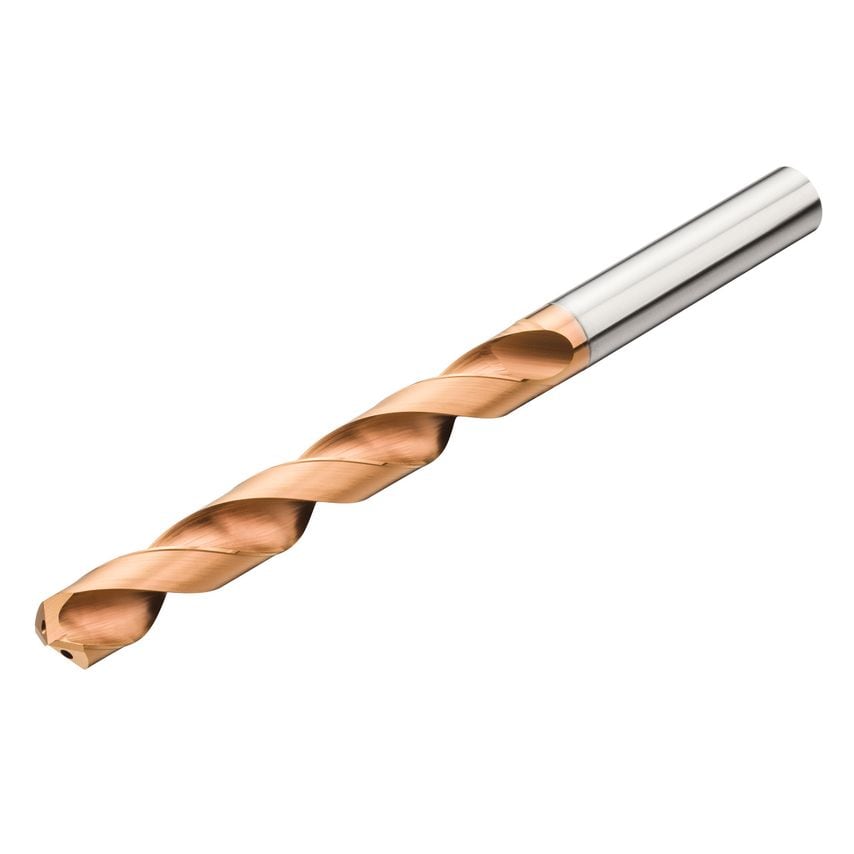

CoroDrill Delta-C solid carbide drill
| Standards Met | COROMANT |
| Unit Measured | Metric |
| Usable Length | 88.9mm |
| Point Angle | 140\u00b0 |
| Usable Length Diameter Ratio | 7.17 |
| Drill Diameter | 12.4mm |
| Overall Length | 160mm |
| MFR Part No. | 11770765 |
| CoroPak | 4.1 |
| Connection Diameter | 14mm |
| Functional Length | 157.9mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Achievable Hole Tolerance | H9 |
| Weight | 227.5g |
| Rotational Speed Maximum | 5904 1/min |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Material Grade | 1220 |
